BPA 1120

RADIO ANALOG

World Tuner (switchable): No
Frequency bands: FM
Frequency band FM: 87,5 – 108 MHz
Station memory: 18 UKW
Station memory levels: FM1, FM2, FM3
Station display (PS): Yes
Radiotext / Radiotext Plus (RT/ RT+): No / No
Alternate frequency function (AF): Yes
Traffic Radio (TA) FM: Yes
Automatic time setting: Yes
Enhanced Oth. Netw. (EON): No
Regional function (REG): No
Program type identifier/ -seek (PTY) FM: Yes
Travelstore / Number of Memory: Yes / 18x
Band Scan / Preset Scan: No / No
Sensitivity (FM): Two levels (lo / dx)
Noise suppression (FM): Yes
Frequency response FM (Hz) -3 dB: 30 – 15.000

MEDIAPLAYER

AUX rear: No
AUX detection / source activation: No / manual
USB front: yes (type A)
USB rear: No
Memory card reader: No
Concealed front inputs (dust proof): No
Compatible formatting (USB): FAT16, FAT32, exFAT
Maximum storage size (USB, memory cards): < 128 GB
Maximum file/folder count (USB, memory cards): < 20.000
CD- loader (for CDDA, CD-R, CD-RW): No
Playback formats: MP2, MP3, WMA, FLAC, WAV, APE
Hi-Res audio playback: No
Display options (may depend on media file): ID3V2 (file, title, artist, album)
Folder & file browsing: No
iPod, iPhone control (iAP2, Lightning/USB-C): No
Shuffle: Yes
Repeat Title/ Folder/ All: Yes/ Yes/ Yes
Forward/rewind with sound: Yes
Introscan: Yes

BLUETOOTH
(Availability/ support of functions depend on the phone/ app used!)

Phone Calls: Yes
Internal microphone: Yes
Connectivity ext. microphone: No
Answer/ reject call: Yes/ Yes
Access phonebook: No
Audio streaming: Yes
Forward/rewind: No
Introscan: No
Display options: Title, Artist, Album, Playtime
Cell phone navigation audio mix: No
Auto wake-up on call: Yes (when radio off + ignition on), deactivatable
Fast pairing without PIN: Yes
Automatic reconnection: Yes, last 5 devices
Bluetooth version: 5.0 LE
Number of paired devices: max. last 5
No. of devices connected at the same time: max. 1
Supported profiles: A2DP, AVRCP, HFP, SPP
Audio Codecs: AAC, SBC

SOUND

Equaliser (number of bands/ design/ setable q-factor): No
Bass/ treble adjustment: Yes/ Yes (+/- 7 steps)
Source-specific bass/ treble adjustment: Yes
Balance/ fader: Yes/ Yes (+/- 7 steps)
HPF/ LPF: No
Loudness: Yes
Sound presets: Yes (Rock, Pop, Classical)
Speaker Outputs (Channels): 4
Preamp Outputs (Channels, Voltage): 4 (RCA, < 2V)
Sub-Out: No
Max. Power: 4x 20 watts
Output Power: 4x 6W/4Ω @14.4V,1KHz, 10%;   4x 10W/2 Ω @14,4V, 1KHz, 10%

GENERAL

Display: LCD, negative, anti-reflective, alphanumeric + symbols
Scrolling: Yes
Illumination colour of display: No
Illumination colour of keys: Same as display
Day/Night mode: No
Night design when switched off (vehicle light on): No
Brightness: No
Time display: Yes
HMI language: English
Hour timer (automatic switch-off when ACC off): No
Low standby current: No
Antenna inputs: FM DIN
Mute input / Telephone mute: No
Ext. handsfree microphone connector: No
Remote control: No
Steering wheel remote control (SWC): No
Variable scan time: No
Confirmation beep: Yes (can be deactivated)
Control panel type: Fixed panel
Color panel / decor ring: Black / Black
Software Update: via USB
Permanent Memory: No
Demo Mode: No
Weight: approx. 0.34 kg
Dimensions: 50 x 178 x 90 mm (H x W x D, only housing w/o front), 58 x 187 x 17 mm (H x W x D, front with trim ring, w/o buttons
Operation voltage: 12 Volt (14.4 Volt)
Power consumption: < 10A in Operation, ACC off after 10 seconds about 6 mA

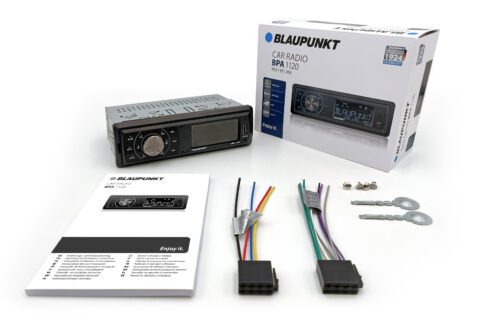

SCOPE OF DELIVERY

User manual (languages): Yes (DE, EN, FR, ES, PT, IT, NL, HU, PL, CS, FI, EL, TR, RO, BG, SL, SK)
External BT microphone: No
Unlocking tool: Yes
Connectors (ISO A, B): Yes
Antenna adaptor (DIN/ ISO): No
