B1P16AT2

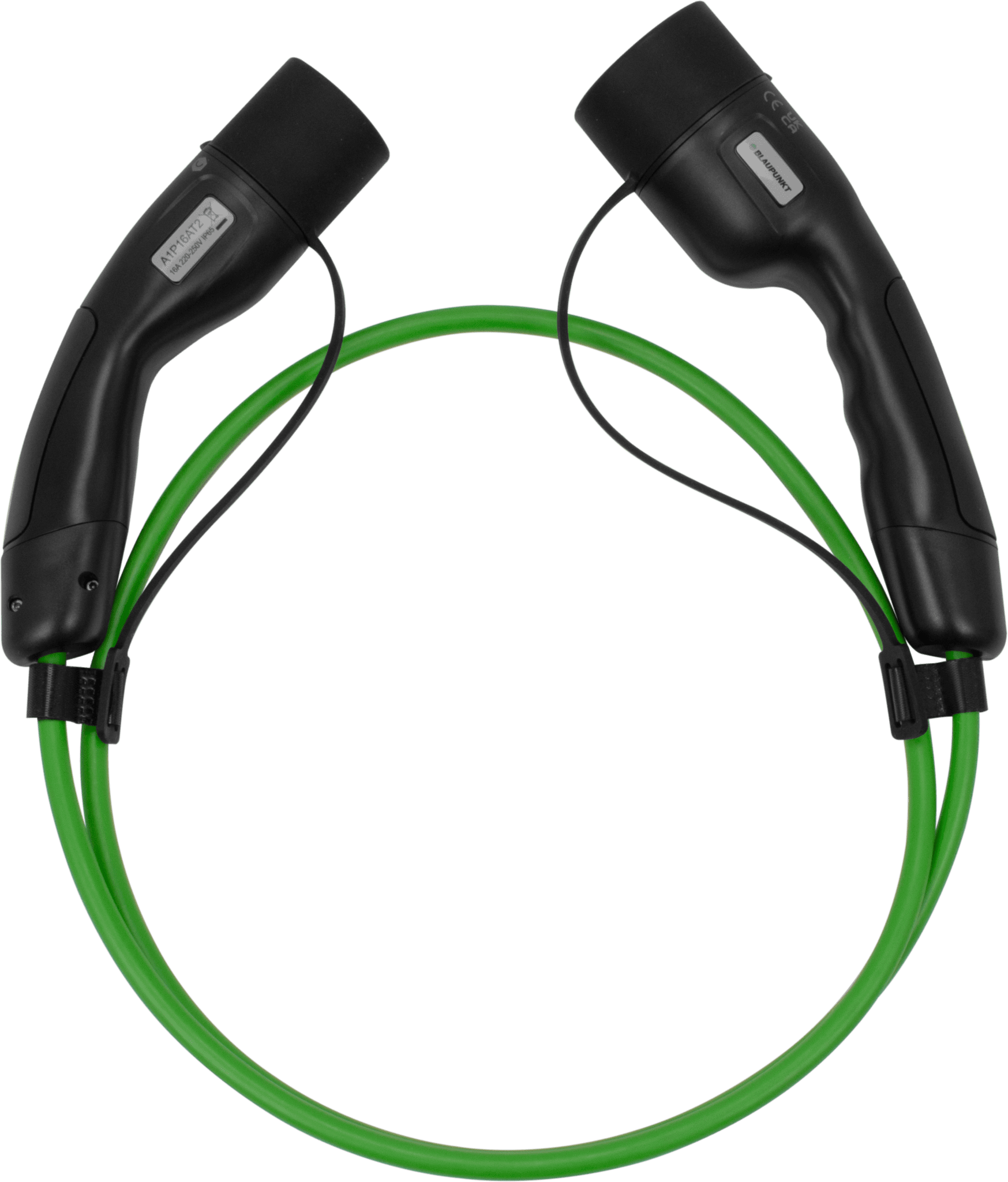

B1P16AT2 – Charging Cable Type 2

Type 2 Charging cable for charging your car at public or private charging stations.  Single phase, 16A capacity and 2 meters total length.

Single phase Type 2 Electric Vehicle Charging Cable.

A Blaupunkt charging cable is designed according to IP65 rating, making the cable safe to use outdoors in any weather.

2 meters total length reduces the amount om dirt you bring into the car.

16A capability will safely provide up to 3.7 KW on a single phase.

The CE certification has been done by a leading independent laboratory.

Specifications

Highlights
Type 2 plug
16A rating
Water proof (IP65)
8 Meters total length
Light weight
Specifications
Model No.: B1P16AT2
Working Voltage: 110V ~ 250V
Rated Current: 16A
Insulation Resistance: >1000M
Resistance Voltage: 2000V
Contact resistance: Less than 0.5m
Insertion and Extraction Force: 80N<F<100N
Main Material: Thermo Plastic/Silicon Rubber/Copper Alloy
Cable Spec.: 3*2.5mm2+2*0.5mm2
Cable Length: 2m
IP-class: 65
Fire rating: UL94 V-0
Operating Temperature: (-30°C ~ 50°C)
Net Weight: 1.3 kg
