2008025320000

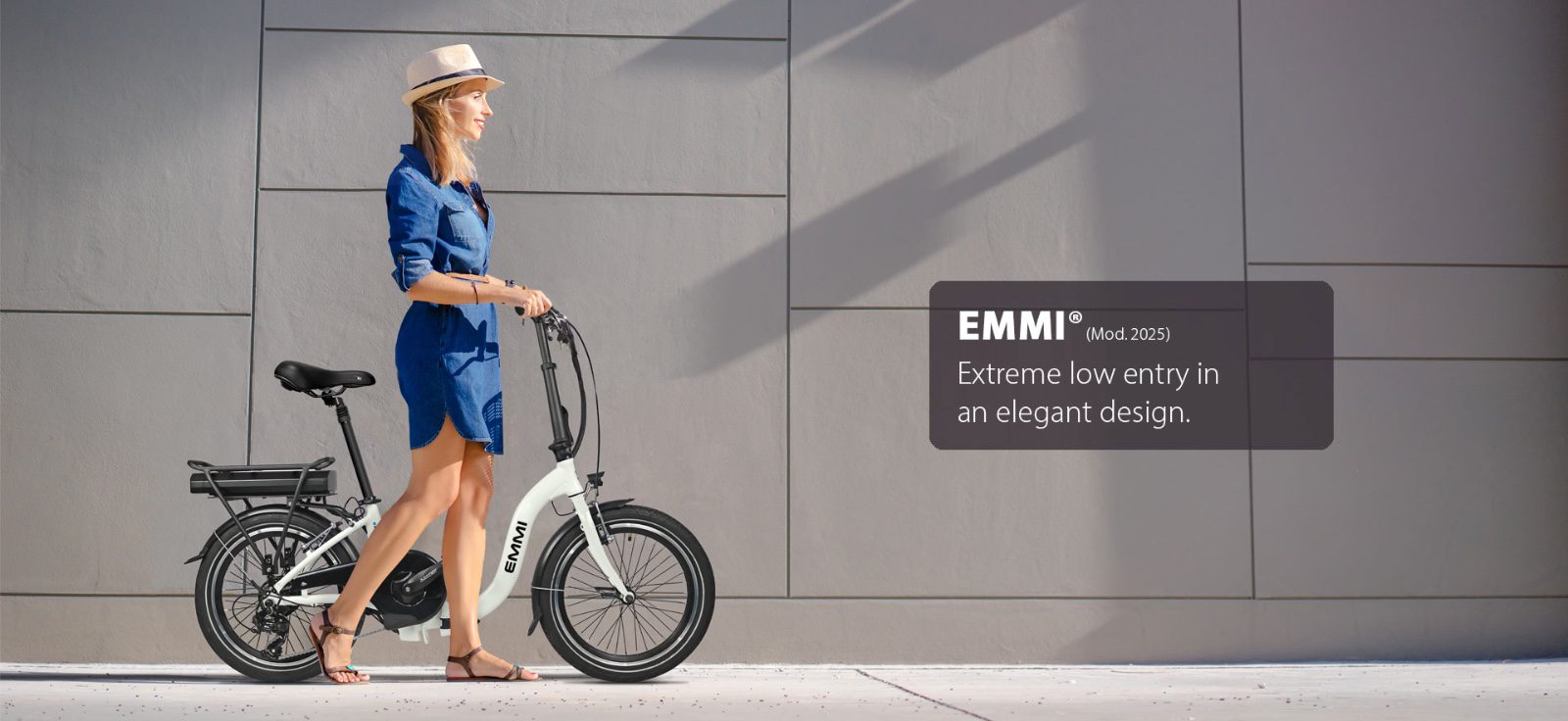

EMMI® (Mod. 2025)

Extreme low step over in an elegant cream-white.
Equipped with a rear wheel motor and 6-speed Shimano SIS gears.



approx. 22 kg weight (incl. battery)
up to 60 km range*

Intelligent clamping mechanism!

Equipped with an intelligent clamping mechanism, the Blaupunkt EMMI® (2025) can be easily folded and thus reduced in size by half. In just 4 steps, the folding e-bike becomes a handy and easy-to-stow “package”. The low weight of approx. 22 kg also makes it easy and comfortable to take with you on the bus and train.

Strong engine!

The strong 36-volt rear-wheel motor with 50 Nm provides the perfect support, which together with the removable and powerful lithium-ion battery forms a perfect team. The motor is durable and to protect the battery, the integrated BMS (Battery Management System) always ensures an optimal energy supply.

LCD bike computer!

The 5 support levels of the motor are controlled via the easy-to-read LCD computer. It also provides important information such as the current battery life, information about the route, speed and much more. The engine power can also be completely deactivated.

Want more range?

With the larger batteries available separately, you can now upgrade and increase the regular range of 60 km* to up to 100 km*.

Size (ready to drive): approx. 1600 × 610 × 1100 mm (L x W x H)
Size (folded): approx. 800 × 430 × 700 mm (L x W x H)

​​Subject to technical changes, mistakes and typographical errors.
* The range depends on the load, driving style and area of use.

Specifications

Highlights
  • 20” low step over e-bike
  • Rear hub motor with optimized control
  • Elegant cream-white finish
  • Shimano 6-speed SIS gears
  • Stable, foldable aluminum frame
  • Easily stowed thanks to intelligent quickfolding mechanism including foldable pedals & handlebar
  • Comfortable 20″ × 2.125 tires
  • LCD bike computer with 5-stage pedal assistance up to 25 km/h
  • Li-ion battery 7.8 Ah / 36 V for up to 60 km*
  • Battery can be removed and locked
  • Approx. 22 kg weight including battery
  • Meets the requirements of the german StVZO
  • Designed in Germany, Assembled in EU

​​Subject to technical changes, mistakes and typographical errors.
* The range depends on the load, driving style and area of use.

Technical specifications

Mechanics
Frame: aluminum
Rims: aluminum
Tires: 20″ × 2.125 / 57 – 406, black, reflective strips
Gear: Shimano Tourney SIS 6 speed
Brakes (front/rear): V-brakes
Headset: semi-integrated
Maximum load: 100 kg

Drive
Motor: AKM 1000SX, integrated in the rear wheel, DC 36 V / 250 W, 50 Nm, brushless, maintenance-free, IP65
Battery: 36 V / 7.8 Ah lithium-ion battery with integrated BMS and LED battery status display
Sensors: cadence & speed sensor
Riding modes: 5 levels of pedal assistance, assistance can be deactivated, push assist
Bike computer: KD2TC LC display, 3 buttons, backlight, IP65. Functions: speed, ODO, TRIP, AVG/MAX, TRIP TIME, PAS LEVEL, battery, power, push assist, bike lights, automatic shutdown, error codes
Charger: wide-range power supply (AC 100 – 240 volts) 42 V, 2 A
Charging time: approx. 4 – 5 hours
Range: up to 60 km* (standard battery with 7.8 Ah)
Maximum speed (supported): max. 25 km/h
Engine stops when braking: Yes

Lighting
Lamps/reflectors: LED lamps at the front and rear, integrated reflectors, lighting powered by bike battery, pedals with reflectors, tires with all-round reflective strips

Further configuration
Mudguards: Yes
Stand: Yes, central side stand
Pedals: plastic, Wellgo, foldable
Removable battery: Yes
Lockable battery: Yes
Charging battery installed/removed: Yes/Yes
Battery charge level indicator: Yes, integrated in the battery + computer
Additional battery: Optional (8.8 Ah up to 70 km*/10 Ah up to 80 km*/13 Ah up to 100 km*)
Chain guard: Yes
Luggage rack: Yes (max. load capacity 25 kg)
Saddle: Ergonomic comfort saddle, black
Handles: Ergonomic synthetic leather handles, black
Bell: Yes
Suspension seat post: Yes
Suspension fork: No
Carrying bag: Optional
Handlebar bag: Optional

Size / weight
Size (ready to ride): approx. 1600 × 610 × 1100 mm (L×W×H)
Size (folded): approx. 800 × 430 × 700 (L×W×H)
Wheel size: 20″ × 2.125
Handlebar height: 940 – 1060 mm
Handlebar width: 610 mm
Saddle height: 720 – 940 mm
Seat post: Ø 30.8 mm, 60 cm
Wheelbase: 1000 mm
Ground clearance: 95 mm (up to safety bar)
Frame height: 424 mm
Weight (incl. Battery): approx. 22 kg
Battery weight: approx. 2.5 kg (standard battery with 7.8 Ah)
Colors: frame cream white / saddle, tires and handles in black

Scope of delivery / accessories
1 × Pedelec
Charger with Euro plug
Battery with keys
Operating instructions (multilingual)
EPAC DIN EN 15194:2017, StVZO, UN38.3

Logistical data
Packaging dimensions: approx. 845 × 431 × 740 mm (L×W×H)
Packaging weight: approx. 3.3 kg cardboard, 0.1 kg foam, 0.1 kg PVC (foil, cable ties)
Complete weight: approx. 25 kg

Replacement batteries
8.8 Ah/ 36 V: Article number 2 008 020 111 100,
10.4 Ah/ 36 V: Item number 2 008 020 111 050,
13 Ah/ 36 V: Item number 2 008 020 111 051

​​Subject to technical changes, mistakes and typographical errors.
* The range depends on the load, driving style and area of use.
