FRIDEL® (Mod. 2024)
The reliable companion: The foldable 24 inch city bike with Intube battery.
The compact design of the folding e-bike allows for effortless folding, making transportation much easier.
Approx. 24 kg weight (including battery),
up to 110 km* range
*The range depends on the load, riding style, and terrain of use
Your reliable companion

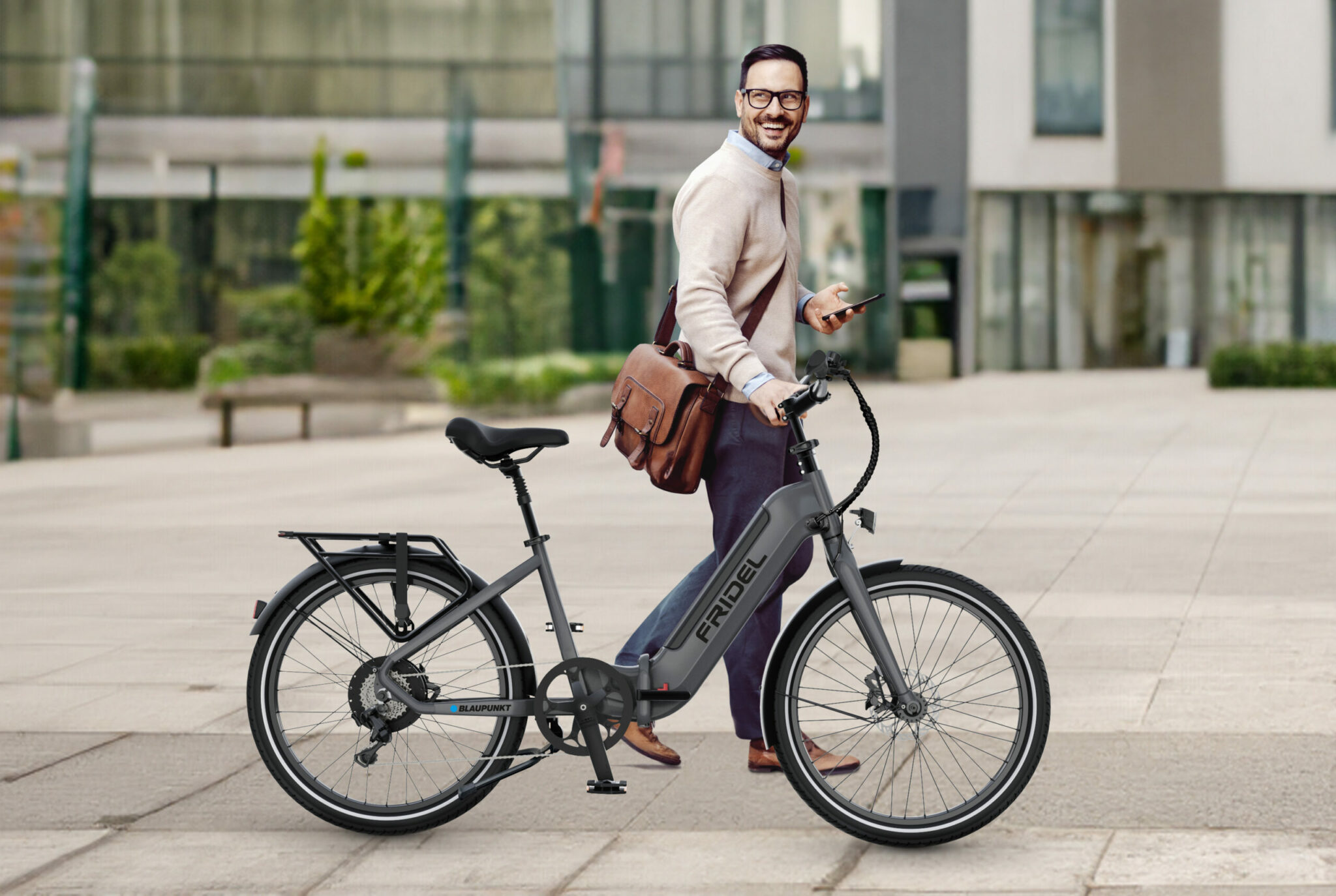

The Blaupunkt folding e-bike FRIDEL® (model 2024) with 24-inch wheels combines style and functionality and will quickly become your best everyday companion. Whether you’re riding to work, running errands or exploring the city, this bike in the color “night-grey” matte is ready for it all.
Foldable
Equipped with a quick folding mechanism, the Blaupunkt FRIDEL® (model 2024) can be easily folded and thus reduced to half the size. In just a few steps, the folding e-bike becomes a handy and easy-to-store “package”. A clever magnetic holder fixes the front and rear parts of the folding bike. The low weight of approx. 24 kg also makes it easy and pleasant to take with you in the car, bus and train.
Folded in no time with just a few simple steps – here’s how it works:
1. Press both pedals towards the crank and then fold them 90°.
2. Loosen the quick release on the handlebar, pull the handlebar all the way up and turn it 90°.
3. Open the frame lock and swing the front part of the bike backwards until the practical magnetic holder fixes both parts together. (Swinging is easiest when the bike is on the stand and some pressure is applied to the rear of the bike.)
Bicycle computer with color display
The color display is not only clear and easy to read, but also offers a variety of useful information: current battery life, speed, route information and much more. The 5 motor support levels are controlled via the bike computer. The motor power can also be completely deactivated or can be used as a pushing aid.
Strong motor
The powerful 36-volt rear wheel hub motor from AKM with an ideal torque of 50 Newton meters offers the perfect support. This means you can easily climb mountains and climbs, defy the strongest headwinds and forget the heaviest load on the luggage rack.
Intube battery
The powerful Li-ion battery with 580 watt hours ensures a range of up to 110 km (depending on driving style, load and area of use). It is placed in the frame of the e-bike (Intube), which improves the protection of the battery and the appearance of the e-bike. The battery can be removed for charging or left in the frame. To protect against theft, the battery is secured with a lock.
Reliable hydraulic brakes
Thanks to the hydraulic Tektro HD-E500 disc brakes, which work well in any weather, you can brake safely and reliably. You only need a small amount of force and can brake with one finger without any problems and precisely dose the braking force. You can be sure of that.
Everything is under control
The ergonomic handlebar grips have a larger area for the hands. This reduces pressure and prevents the wrists from bending. On longer journeys, your hands are less likely to fall asleep. You have a better driving experience with more support and safety.
Foldable handlebar
The practical quick-release lever allows the height of the handlebar to be adjusted in seconds, which can also be rotated through 90 degrees without tools. This saves you valuable space when transporting or storing your bike.
Universal smartphone holder included
A smartphone can be easily mounted on the handlebar using the universal holder (rotatable for portrait or landscape format). A special highlight: It can be supplied with power via a connection on the bike computer and charged straight away.
Integrated comfort suspension
Experience relaxed driving fun: With the comfortable gel saddle from Selle Royal and the spring-loaded seat post, you are spared from excessive stress. The impact energy is reduced by up to 50%. Your back and other parts of your body will thank you and longer tours will be child’s play.
Automatic lighting
The integrated light function switches the light on automatically as soon as it gets dark. Alternatively, you can of course also switch it on and off manually on the bike computer. The front light impresses with a particularly high brightness of 60 lux and illuminates your path perfectly. The rear light ensures the necessary safety through good visibility in traffic.
Functional luggage rack
Not only stable and elegant with a matt black finish. The luggage rack is also functional and compatible with the widespread “Racktime System”, which easily fixes bicycle baskets and bicycle bags to the luggage rack.
Safety tires
The comfortable 24 inch tires not only have reflective strips for better visibility in the dark. They also feature puncture protection, which minimizes the risk of punctures caused by sharp objects such as broken glass. You’ll definitely love it!
Size (ready to drive): approx. 1760 × 700 × 1040 mm (L x W x H)
Size (folded): approx. 880 × 410 × 1100 mm (L x W x H)
Specifications
Highlights
- 24 inch folding e-bike with in-tube battery
- Removable 580 Wh (36V, 16 Ah) battery with Smart BMS (Battery Management System)
- Incl. Smart Charger 42V, 2Ah
- Charging time approx. 5-8 hours
- Up to 110 km range (depends on the load, riding style, and terrain of use)
- Tektro HD-E500 hydraulic disc brake
- 8-speed gears from Shimano
- 5-level pedal assistance with pushing aid
- Bicycle computer with color display
- Satori handlebar stem Easy-Up-ET (tool-free adjustable handlebar attachment)
- Robust quick-folding mechanism with magnetic holder
- Puncture protection tires with surrounding reflector strips
- Ergonomic comfort gel saddle
- Suspension seat post
- Intelligent light assistants 60 lux front light and integrated rear light
- Luggage rack with click system from Racktime
- Integrated phone holder
- Frame color: night-grey
- Meets the requirements of the german StVZO
- Designed in Germany, assembled in EU
Technical specifications
MECHANICS
Frame: T6061 aluminum magnesium silicon alloy
Rims: aluminum, black
Tires: 24″ x 2.125/57-406, black, integrated reflective strips
Gears: Shimano Altus 8 Speed
Brakes (front/rear): Tektro HD-E500 hydraulic disc brakes
Headset: Semi-integrated
Maximum load: 110 kg
DRIVE
Motor: AKM 100SX, integrated in the rear wheel, DC 36 V/ 250 W, 50 Nm, brushless, maintenance-free, IP65.
Battery: Removable 580 Wh (36 V, 16 Ah) battery with Smart BMS.
Sensors: cadence & speed sensor, light sensor, function sensors.
Drive modes: 5 levels of pedal assistance, support can be deactivated, pushing assistance.
Bike computer: KD686 LC display, 3 buttons, color display, IP65. Functions: Battery info, speed, ODO, TRIP, AVG./ MAX, TRIP TIME, PAS LEVEL, battery, power, walking aid, bicycle lighting, automatic shutdown, error code, password activation.
Charger: Smart charger (AC 100 – 240 volts), 42 V, 2 A
Charging time: approx. 5-8 hours
Range: up to 110 km (depending on load, driving style and area of use)
Maximum speed (supported): max. 25 km/h
Motor cut-off on brake activation: Yes
LIGHTING
Lamps/reflectors: Intelligent light assistants, Buchel Tour 2.0 front light with 60 lux, integrated rear light, integrated reflectors, pedals with reflectors, tires with surrounding reflector strips, lighting powered by a bicycle battery.
ADDITIONAL EQUIPMENT
Mudguards: Yes
Kickstand: Yes, center bipod stand
Pedals: aluminum, foldable
Removable battery: yes
Lockable battery: Yes
Charging on bike/removed: Yes/Yes
Battery charge indicator: Yes, integrated in the battery + computer
Chain guard: Yes
Luggage carrier: Yes (max. load capacity 20 kg)
Saddle: Ergonomic comfort gel saddle, black
Grips: Ergonomic handles
Bell: Yes
Suspension seat post: Yes
Handlebar bag: Optional
Magnetic holder: Yes
Universal phone holder: Yes
SIZE / WEIGHT
Size (ready to drive): approx. 1760 × 700 × 1040 mm (L × W × H)
Size (folded): approx. 880 × 410 × 1100 mm (L × W × H)
Wheel size: 24″ × 2.125
Handlebar height: 1060-1155mm
Handlebar width: 700 mm
Saddle height: 870-1050mm
Seat support tube: Ø 27.2 mm, 40 cm
Wheelbase: 1110mm
Ground clearance: 210 mm (up to safety bar)
Frame height: 440 mm
Weight (including battery): approx. 24 kg
Weight battery: approx. 2.5 kg (standard battery with 580 Wh)
Color: Frame in night-grey, saddle, tires, handles in black
SCOPE OF DELIVERY / ACCESSORIES
1× Pedelec, charger, battery with keys, universal phone holder, operating instructions (DE/EN)
CERTIFICATIONS
EPAC DIN EN 15194:2017 (CE), StVZO, UN38.3, RoHS
LOGISTICAL DATA (subject to change)
Packaging dimensions: approx. 845 × 431 × 740 mm (L × W × H)
Packaging weight: approx. 3.3 kg cardboard, 0.1 kg foam, 0.1 kg PVC (film, cable ties)
Weight complete: approx. 25 kg
Customs tariff number: 87116010
