GTx 542 ES

2-way coaxial speaker

130 mm / 5.4″ | 180 watts max. power

Specifications

Highlights
  • 2-way coaxial speaker
  • 130 mm/ 5,4“ diameter
  • 180 watts maximum power handling
  • 40 watts nominal power handling
  • Injected PP- membrane (glossy black)
  • Extended pole design (EXP)
  • Gold plated connectors
  • High-quality design grille
  • Installation depth only 47,5 mm/ 1,87”
  • Accessories: including design grille, cables, mounting material, installation instructions
Technical specifications
System: 2-way coaxial
Diameter: 130 mm/ 5,4”
Maximal power handling: 180 watts
Nominal power handling: 40 watts
Nominal impedance: 4 ohms
Frequency response: 70- 20.000 Hz
Efficiency (2,83V/1 m): 91 dB
Cone material: Injected PP membrane
Basket material : Steel, crinkle black
Connectors: 2,8/ 4,8 mm, gold plated

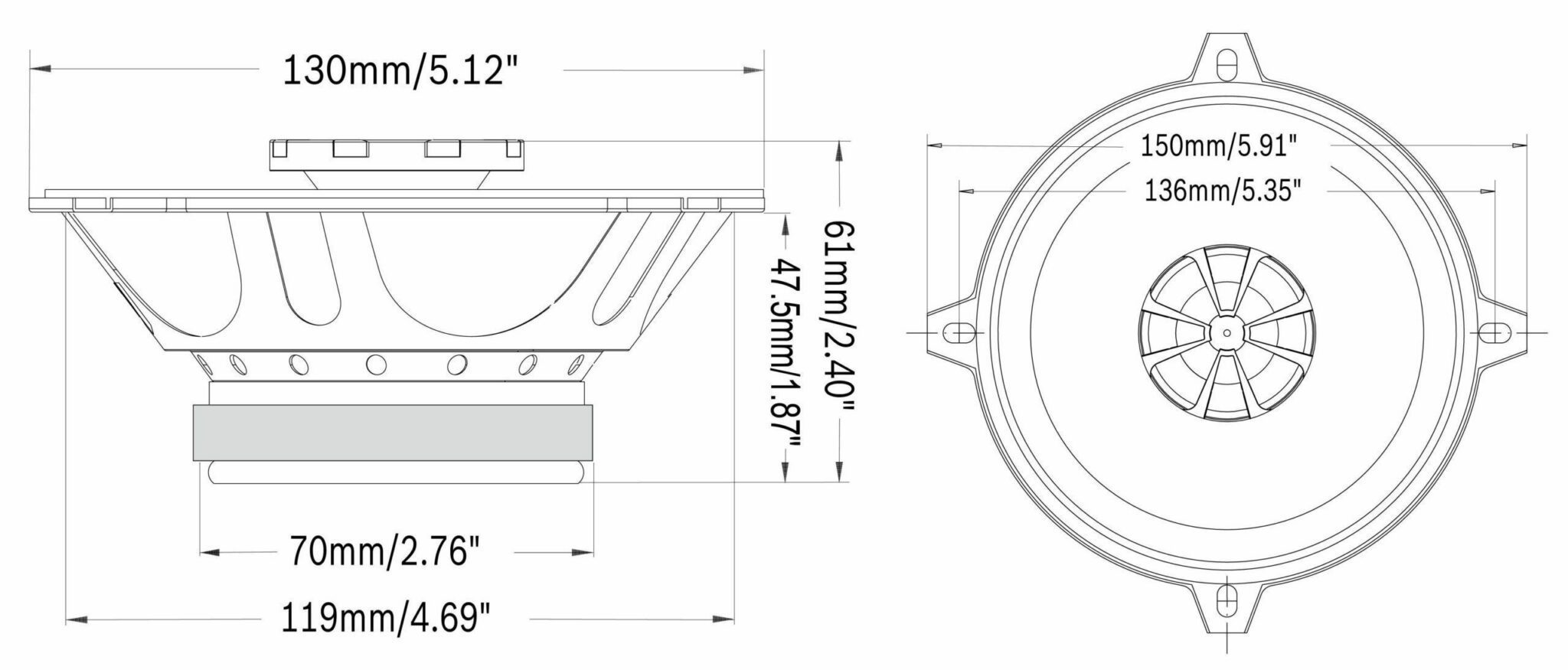

Installation depth: 47,5 mm/ 1,87”
Diameter installation hole: 119 mm/ 4,69”
Accessories: Design grille, cables, mounting material, installation instructions
