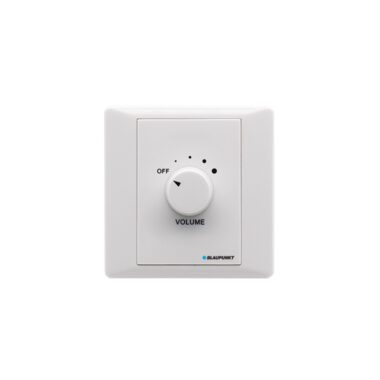

100V volume controller BP-PA-VC120W

INTRODUCTION

BP-PA-VC120W is an elegant and compact volume controller with 24V override function. It’s compatible with wall and ceiling speakers which have 100V line matching transformers and can be connected to a speaker or group of speakers with power rating up to 120 Watts. There are 5 volume selectable positions on the panel. It’s your ideal option for installation of hotels, office cabins, showrooms, greenroom, etc.

Buy now!

Specifications

Technical specification
Model:  BP-PA-VC120W
Type Five Gear Volume Control
Rated Power 120W
Override Signal 24V DC 10mA
Gear Output (Input 1KHZ/100V, Load=82Ω, distortion degree<1%) STEP:0V (off)



STEP1:13(±2) V



STEP2:26(±2) V



STEP3:51(±2) V



STEP4: 100V

Gear Freq. Response (normal operating conditions ( -3DB)) STEP1:70Hz ~ 18kHz



STEP2:70Hz ~ 18kHz



STEP3:70Hz ~ 18kHz

Input DC24V override signal output (position switch can be placed at any location) 100V (Input 1KHZ/100V, Load=82Ω, distortion<1%)
