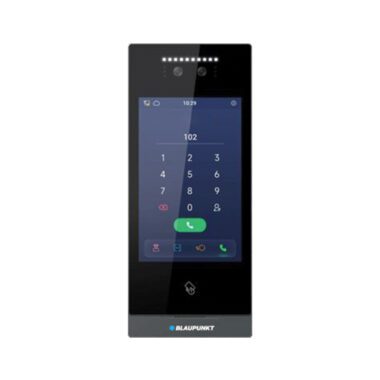

8-inch face recognition outdoor station BP-VDP-OS8024-FR
OVERVIEW
The Outdoor station is one of the main parts in digital video door phone system. It is connected by standard CAT5 cable and can be used for intercom and unlocking functions with Indoor Monitor or Guard Unit
FEATURES
- 8″ IPS display
- Auto fill light with high luminance LED
- Support multiple face detection, face tracking, live detection, mask recognition and other functions with binocular wide dynamic&near infrared camera and Megvii face recognition algorithm. The face recognition rate is less than 0.5s and false recognition rate is 0.1% in a standard environment with 10,000 person.
- Unlock with nine modes: password, IC card, pushbutton, monitoring/call, face recognition, QR code, APP, face&public password, face&access card
- Compatible with cloud server management, LAN server management, no server management and various server management modes
- Support alarm input, alarm output and 12V output with 800mA MAX
- Support human movement detection
- Support lift linkage
- Support Wiegand setting
- Support door status detection and timeout alarm, disconnection alarm and tamper alarm
- Support OTA online upgrade
Specifications
Technical specification
| Model: BP-VDP-OS8024-FR | |
| Specifications | |
| System | Linux |
| RAM | 512MB |
| Face Storage | 20.000 |
| CPU | 2 x Cortex-A7 1.2GHz 32K |
| ROM | 4GB |
| Working Parameters | |
| Working Voltage | 18 ~ 30V (DC24V as standard) |
| Working Current | <400mA (DC24V) |
| Storage Temperature | -30°C ~ +70°C |
| Static Current | <150mA (DC24V) |
| Working Temperature | -20°C ~ +70°C |
| Humidity | ≤ 95%, no condensation |
| Camera | |
| Type | CMOS |
| Pixels | 2 Mega pixels |
| FOV Field of View | H: 61 degrees; V: 35 degrees |
| Focal Distance | 4.3mm |
| LED | IR 850nm + white light |
| Minimum Illuminance | ≤0.15 Lux / F2.0 |
| Display | |
| Type | LCD |
| Resolution | 800 * 1280 |
| Size | 8” |
| Product dimension | |
| W / H / D | 130 x 308 x 26.50 mm |
