01857

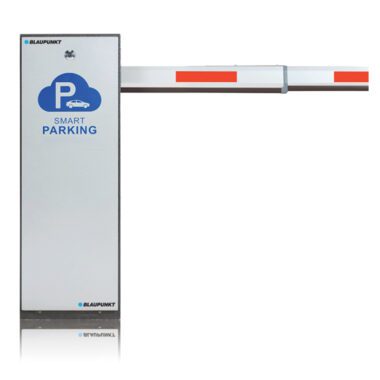

Barrier gate BP-BG158

DESCRIPTION

BP-BG158 is an adjustable direction DC24V parking barrier gate with auto bounce back function, intelligent limited sensor and position memory function, which can normally work at very low temperature.

FEATURES

  • Multi types of arms
  • Auto bounce back function. Built-in sensor can detect when arm hits obstacle
  • Intelligent limited sensor. Limited sensor can check open & close position automatically. No need adjusts it by hand
  • Position memory function. The motor can remember limited position, so it will move back to right position even we turn motor handle to avoid motor stuck.
  • Working temperature -30⁰C ~ +80⁰C
  • Longer working life. It can open and close 3 million times
Buy now!

Specifications

Technical specification
Model: BP-BG158
Technical Parameters
Voltage DC24V
Motor power consumption 100W brushless motor
Working temperature -30°C ~ 80°C
Humidity ≤ 90%
Boom length ≤ 6M with LED light
Open/Close time 1.8S ~ 3S/3S ~ 6S
The height of boom support 890mm
Remote control distance ≤ 30M
IP IP54
Input interface Switch signal
Universal Remote-control frequency with 2 remotes
Battery included
