2003017123458

GTx 662 ES

Specifications

Highlights
  • Versatile usage: It‘s a 2-way coaxial speaker or 2-way component system
  • Variable mounting possibilities with external tweeter
  • 165 mm/ 6,6“ diameter
  • 220 watts maximum power handling
  • 45 watts nominal power handling
  • Injected PP- membrane (glossy black)
  • Extended pole design (EXP)
  • Gold plated connectors
  • High-quality design grille
  • Installation depth only 55,55 mm/ 2,19”
  • Accessories: including design grille, cables, mounting material, installation instructions
Technical specifications

System: variable: 2-way coaxial or 2-way components
Diameter: 165 mm/ 6,6”
Maximal power handling: 220 watts
Nominal power handling: 45 watts
Nominal impedance: 4 ohms
Frequency response: 55- 22.000 Hz
Efficiency (2,83V/1 m): 92 dB
Cone material: Injected PP membrane
Basket material: Steel, crinkle black
Connectors: 2,8/ 4,8 mm, gold plated

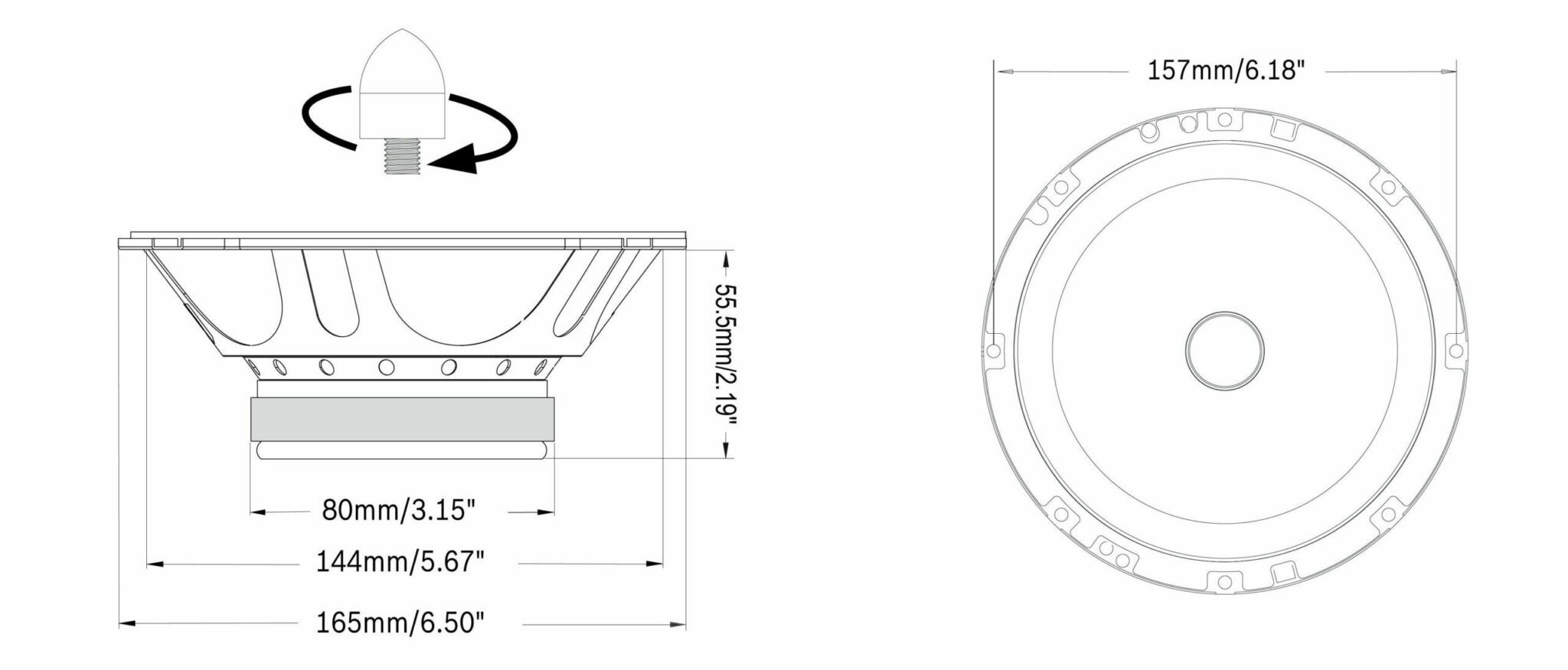

Installation depth: 55,5 mm/ 2,19”
Diameter installation hole: 144 mm/ 5,67”
Accessories: Design grille, cables, mounting material, installation instructions
