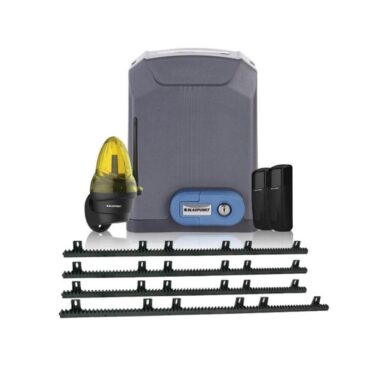

Sliding gate opener BP-SLG800-24-KIT
INTRODUCTION
Sliding gate opener is applicable to gate weight less than 500kg/800kg, and length of the
sliding gate less than 8m. The drive mode adopts the rack and gear transmission. This gate opener must be installed
inside the enclosure or yard for protection.
Specifications
Technical specification
| Technical Parameters | |
| Power Supply | 220V AC/50Hz |
| Motor working voltage | 24VDC |
| Motor power | 170W |
| Gate moving speed | 16 ~ 18m / min |
| Maximum weight of gate | 800kg |
| Remote control distance | ≥30m |
| Remote control mode | Single button mode / Three button mode |
| Limit switch | Magnetic limit switch |
| Noise | ≤58dB |
| Working duty | S2, 20min |
| Recording of up remote controls | 25 |
| Frequency | 433.92 MHz |
| Working temperature | -20°C ~ +70°C |
| Package weight | 11kg |
