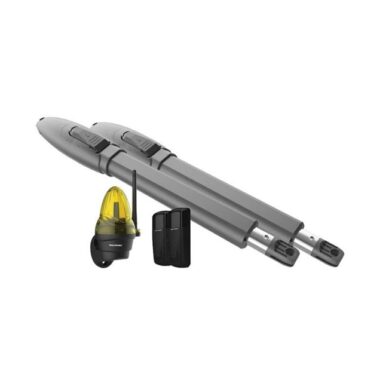

Swing gate opener BP-SWG250-24-KIT

INTRODUCTION

Swing gate opener is applicable to single leaf gate weight less than 300kg, and the length shorter than 2.5m. The drive mode adopts planetary transmission to combine with the screw rod transmission.

This gate opener must be installed inside the enclosure or yard for protection.

Buy now!

Specifications

Technical specification
Technical Parameters
Power Supply 220V/50Hz
Motor power 50W
Gate moving speed 18 ~ 22s / 90⁰
Max. single-leaf weight 300kg
Max. single-leaf length 2.5M
Max. piston stroke 32cm
Max. force 2800N
Remote control distance ≥30m
Remote control mode Single/Four button mode
Storage battery (optional) DC24V (4.5Ah or 9Ah)
Noise ≤58dB
Recording of up remote controls 32
Remote frequency 433.92 MHz
Working temperature -20°C ~ +70°C
Package weight 14kg
