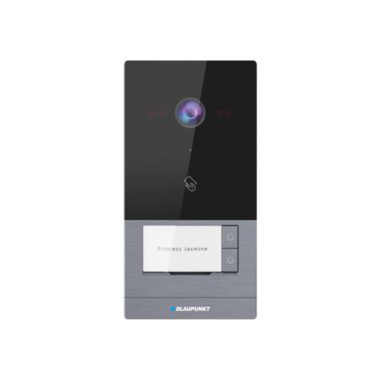

Villa outdoor station BP-VDP-OS448-G
OVERVIEW
The product is the two buttons outdoor station. By using standard CAT5 cables, it makes visual intercom call to guard station possible. Besides, it supports IC access control.
FEATURES
- Support IC card
- Support calling to guard unit
- Adjustable unlock time
- Door status detection, and unlock state timeout alarm
- Support normal open/close unlock output
- Support online update
Specifications
Technical specification
| Model: BP-VDP-OS448-G | |
| Working Parameter | |
| Working Voltage | DC 24V/POE 48V |
| Working Current | 130mA DC24V/60mA
48VPOE |
| Static Current | ≤ 65mA 24V/45mA 48VPoE |
| Working Temperature | -25℃ ~ 55℃ |
| Storage Temperature | -40℃ ~ 70℃ |
| Dimension (H/W/D) | 168 × 86 × 33.5mm |
| Camera | |
| Type | CMOS |
| Pixel | 2MP |
| View Angle | Diagonal 78° |
| Relative illumination | 48% |
| Focal Length | 2.2mm |
| Fill-in Light Type | White |
