Specifications
Technical specification

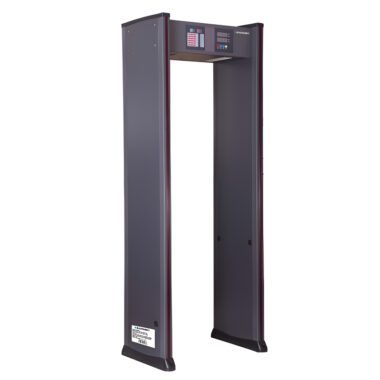

| Model: BP- MDIIIC | |
| General Specifications | |
| Outer frame | 2220mm (H) x 820mm (W) x 500mm (D) |
| Inner frame | 2000mm (H) x 700mm (W) x 500mm (D) |
| Electrical current | AC100V ~ 240V, 50/60Hz |
| Power | 10W |
| Unit weight | 70kg |
| Signal frequency | 7000-8999Hz (adjustable) |
| Work environment | -20C to +45C |
| Sensitivity adjustable | Level 0-299 |
| Alarm | Sound and light |
| Max distance | 0.3m at low sensitivity;0.5m at high sensitivity |
| Configuration | |
| Master control board | Metal-detect-door-mainbd, REV120 |
| Digital keypad | A&C door panel board, REV030 |
| Digital display location board | A&C door zone board, REV030 |
| Light bar | Long bar: metal-detect-door-ledbd,V040 |
| Speaker | Loudspeaker, 8 2W, Ω Black, 75mm x 32mm x 27mm |
| Software | |
| Operation way | Remote control only |
| Sensibility | With the highest sensibility, it can detect the metal Article as small as the clip.
With the range of 0-100, it can be adjusted the Sensibility easily, pre-set the weight, volume, size and location in respect of the metal Articles and eliminate the false alarming for the coin, key, jewelry, leather belt button, etc. |
| Infrared counting | The intelligent counter can calculate the number of the Passenger flow and the times of alarming. |
| Alarm settings | Eight kind of alarm sound |
| Detecting areas | Allocation of six mutual over-lapping detecting areas, Simultaneous alarming from multi-areas and accurately ascertaining the location of the metal articles according to the layout of the metal articles. |
| Operating Environment | |
| Operation temperature/Humidity | 5⁰C ~ 40⁰C / 0%-90% (non-condensing) |
| Storage temperature/Humidity | -20⁰C ~ 55⁰C / 0%-98%(non-condensing) |
| Operation Power | 220VAC (±10%) 50±3Hz (Optional: 100VAC, 110VAC, 120VAC, 200VAC) |
