11108

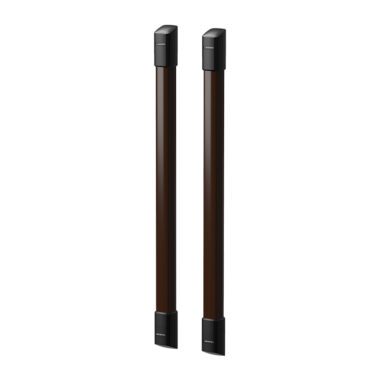

Wireless infrared barrier BP-WAIR30-6
FEATURES
- Definitely wire-free design, easy to install and operate
- Low voltage consumption, long battery life
- Fully-sealed PC tube adopted, well against dust or water
- IP65 approved
- Low voltage reminding. If turning to 2.9V, low-voltage signal will be sent to alarm host
- 433MHz wireless coding
- Lighting protection design can avoid being struck by lighting
Specifications
Technical specification
| Model: BP-WAIR30-6 | ||
| Technical Parameters | ||
| Maximum detection distance | 30m | |
| Beams | 6 | |
| Dimensions | 39*39*1020mm | |
| Working current | TX | 280uA |
| RX | 155uA | |
| Alarm current | 0.3mA | |
| Battery life | 2 years | |
| Wireless frequency | 433MHz | |
| Interruption period | ≤40ms | |
| Waterproof grade | IP66 | |
| Wireless transmission distance | 100m in open area | |
| Working mode | Interruption all beams or 1.2 beams, 3.4 beams, 5.6 beams, 7.8 beams from up tp bottom | |
