Specifications
Technical specification

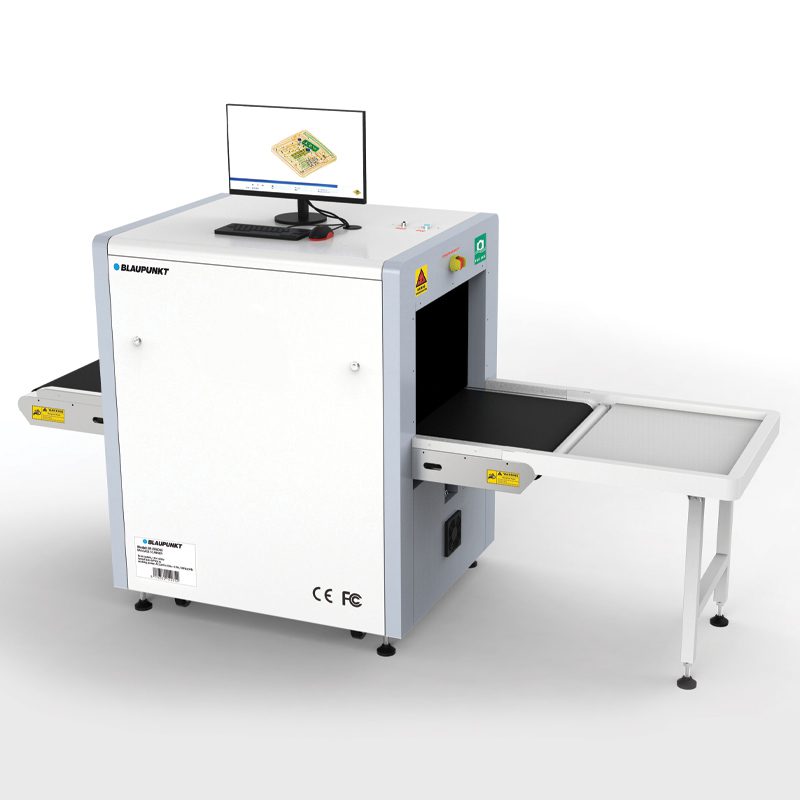

| Model: BP-XR6040 | |
| General specifications | |
| Wire Resolution | Typical AWG40 |
| Penetration resolution | Typical AWG32 |
| Spatial resolution | Vertical: 1.00mm, horizontal:1.0mm |
| Penetration | Typical 8mm |
| Resolution of organic matter | / |
| Tunnel size | 600(W) * 400(H) mm |
| Resolution of inorganic objects | / |
| Effective material resolution | / |
| X-ray dosage each inspection | ≤3.5uSv (uGy) |
| Boundary Leakage | ≤0.5uSv /h (uGy/h) |
| S/N ration | <60dB |
| Conveyor speed
Conveyor max load |
0.2m/s
100kg |
| Power consumption | 0.5kW |
| Safety performance requirements | Meet the requirements of GB 15208.1-2005 |
| EMC requirements | Meet the requirements of GB 15208.1-2005 |
| Electrical safety | Meet the requirements of GB 15208.1-2005 |
| Environmental applicability | Meet the requirements of GB 15208.1-2005 |
| Leakage current | ≤5.0mA |
| Film safety | Guarantee ASA/ISO1600 Film |
| Weight | 260kg |
| Operation temperature / Humidity | 5⁰C ~ 40⁰C / 0%-90% |
| Storage temperature / Humidity | -20⁰C ~ 60⁰C / 10%-90% |
| Atmospheric pressure | 86kPa – 106kPa AC |
| Operation Power | 220V (±10%-15%)50±3Hz |
| Operation system | LINUX |
| X-ray generator | 80KV, oil cooling, from bottom to top |
| Electric roller | Direct current |
| Computer | Hard drive: 500G, Storage: 1G |
| Monitor | 21.5” LED screen |
| Operation console | Single screen console |
| Functional Specifications | |
| Power-on self-test | With the function of fault self-check, automatically judge the fault and prompt the fault code information in time |
| Image processing | 1-64times enlargement continuity.
With the function of Color/ B W, negative, high/low penetration, organic /inorganic stripping, general enhancement, and pseudo color, etc. |
| Image Recall | 30 preceding images recallable |
| The number of images stored | Up to 10,00 images stored automatically |
| Real-time curve | The real-time curve can be used to detect whether the acquisition system and components work normally |
| Time setting | System time can be set |
| Probe setting | It can realize the manual deletion of the low and low energy detection board dead pixels, and display the deleted dead pixels in the display area |
| Ray source setting | There are two source and analog source control modes, the source parameters of the digital source can be set |
| Alarm system | The alarm function can be activated and deactivated, and the alarm type of the alarm box, sound and light alarm can be selected, and the sensitivity, minimum absorption rate, maximum absorption rate, and alarm duration can be set. |
| Troubleshooting | It can realize whether the components such as the entrance and exit light barrier, side panel switch, emergency stop switch and light source are normal, and display the standard value and current value of the detection voltage |
| Image setting | The drum running control direction and the image display moving direction can be set. |
| Software registration | It can realize software registration function and has serial number, registration code,
registration status and system time information display |
| User login | Log in by entering different user name and passwords, only when logging in can you make other settings |
| User management | You can add, delete, edit the user name and password, set the user level to restore the deleted user |
| Authority management | Different default permissions can be set according to user level |
| language settings | The system language can be set to switch between Chinese and English |
| Log management | User operations can be monitored to query user actions |
| About T I P report | The version and device number can be displayed.
The report can be generated by the tip operation after the tip insertion function is turned on, and the content of the report: user name, number of tip insertions, number of tags, false positive rate, probability of detection, probability of false positives |
| Tip management | It can be set to enable and disable the insertion of dangerous goods, and can set the identification time, Prompt time, insertion frequency, proportion of single items inserted into dangerous goods, add tip files and delete files |
| Document management | It can query, open, and export the checked image |
| Function setting | It can set log level, save the file time, whether to open the training function and setting the smart roller |
| Data setting | Display system working hours, the total working hours of the ray source, the total number of system baggage and packages, and the total number of baggage packages this time, and clear the above data |
| System parameter setting | It can select the exported data, pictures, and backup directory, select and adjust the motor type, detector type, whether to enable the debug mode, model, and gain, enter the corresponding IP address on network connection to realize sharing function, and have corresponding software to achieve system upgrade |
| Compliance | |
| International | *ISO19001 ; SO14001 ; ISO27001; OHSMS18001 ; CE , ROHS , FCC , REACH , USA , FDA |
