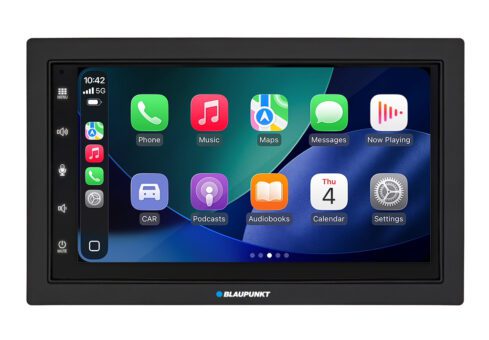

Rotterdam 600 DAB

2-DIN car multimedia, 7-inch touchscreen, Apple CarPlay, Android Auto, DAB+, Bluetooth, hands-free system, USB, rear-view camera input, equalizer, 180 watts



The Rotterdam 600 DAB combines high-quality design down to the last detail, an intuitive operating concept and a breathtaking range of functions.
Store locator

The Rotterdam 600 DAB combines high-quality design down to the last detail, an intuitive operating concept and a breathtaking variety of functions. It impresses with its 7 ”TFT touch display and combines first-class RDS radio reception, a built-in DAB + tuner, a wide range of entertainment and many connection options to many types of mobile media. The Rotterdam 600 DAB has serial interfaces such as Bluetooth and USB that allow you to comfortably play your music collection. But no matter what you’re looking for, the Rotterdam 600 DAB will have a good answer for you.

Apple CarPlay and Android Auto

APPLE CARPLAY

Use your Apple iPhone® with your Rotterdam 600 DAB easily and safely in the car. With Apple CarPlay, iPhone users can navigate safely and intuitively, make calls, play music and retrieve messages – simply via voice control or the touchscreen of your Rotterdam 600 DAB.

ANDROID AUTO

Another connectivity feature of the Rotterdam 600 DAB. Thanks to the intuitive user interface, powerful voice control and built-in Android Auto controls, distractions while driving are minimized, so you can concentrate on the traffic.

The best entertainment even without a smartphone

ANALOG TUNER

The CODEM IV tuner concept used in the Rotterdam 600 DAB is a high-end reception concept developed by Blaupunkt. If the reception conditions change, it is important to keep the result constant. Blaupunkt has a special solution for this task: CODEM IV. Reception has been decisively improved through even better selectivity, even clearer channel separation, further freedom from distortion and other special solutions. With the high-end tuner of the CODEM IV generation from Blaupunkt, no compromises are made in terms of radio reception and RDS behavior . Once you have experienced it, even with the most difficult reception conditions, you will never want to be without it.

DIGITAL RADIO

Enjoy crystal clear, digital radio with the built-in DAB + tuner. The enjoyment begins with the selection of the programs. Be it browsing through the available ensembles and their program structure, or simply choosing from an alphabetical list of all programs.

MEDIA PLAYER

The constant use of digital, mobile data and media has become completely natural. Inevitably, it is an absolute duty of modern end devices to support them. But the range of supported media and formats alone makes the big difference. The Rotterdam 600 DAB does not accept any compromises. Many audio, video and image formats are supported. There are virtually no limits to the wealth of files on the respective medium. So many tracks only make sense if the selection is easy enough. Enjoy how playfully this works with the Rotterdam 600 DAB.

More features

BLUETOOTH TELEPHONIE

Once the phone book of your smartphone has been synchronized with the Rotterdam 600 DAB, nothing stands in the way of comfortable communication while driving and via the audio system. For the best voice quality, the integrated or an external microphone is available for the perfect installation position.

REAR VIEW CAMERA

Parking can be a precision job. The Rotterdam 600 DAB has a camera input. So you always have an overview and nothing should go wrong.

SOUND TUNING

The parametric 8-band equalizer for individual sound optimization in the vehicle can be easily and precisely set via the graphic interface of the Rotterdam 600 DAB. If “playing with the frequencies” is not your thing, there is a whole range of preset sound profiles available. Depending on your personal taste, from pop, rock, electro, jazz to classical music.

SETTINGS

A breathtaking variety of functions does not mean complicated controls. All menus are consistently simple and clearly arranged, attractively designed and, above all, easy to use.

PERMANENT MEMORY

Thanks to the integrated permanent memory, the Rotterdam 600 DAB saves the user settings and the preset stations if the main power supply fails.

STEERING WHEEL CONTROL

If your vehicle is equipped with a remote control on the steering wheel, you can use it together with the Blaupunkt Rotterdam 600 DAB via the SWC (steering wheel control). Thanks to the SWC function, the steering wheel remote control takes over the most important functions such as volume, mute or Bluetooth of the radio.

COMPARISON OF 700, 690, 600 SERIES

Especificaciones

Highlights

Analog- / Digitalradio
FM, AM, DAB, DAB+ Tuner with PS, AF, REG, RT, CT, TA, DLS

Mediaplayer
USB, AV, Bluetooth
MP3, FLAC, OGG, WMA, WAV, MKV, AVI Support

Reverse Camera Input

Apple Car Play
Navigation, Internet radio, Music player, Apps,
Voice assistant

Android Auto
Navigation, Internet radio, Music player, Apps,
Voice assistant

Bluetooth
Phonebook access, Caller lists access,
Audio streaming with ID3 support

Sound
Digital DSP
8- Band Equalizer + Sound Presets
4-Kanal Preamplifier output + Sub-Out
4 x 45 Watts

General
High Resolution VGA TFT Display
DIM- Function
Direct access to all audio sources
Permanent memory
Steering wheel control input (SWC)
Short body, easy installation

Technical specifications

SYSTEM
User Interface: Blaupunkt graphic user interface
Permanent memory: Yes (user settings, presets etc.)

DISPLAY
Technology: LED backlight TFT
Screen size: 7″
Resolution: 1024 x 600 Pixels
Touchscreen: Yes
Display switch off: Yes
Uhr / Datumanzeige: Yes
Clock / Date display: 24 / 12 hours
Radio system languages: English, German, French, Italian, Dutch, Swedish, Polish, Portuguese, Czech

ANALOG RADIO
Type of Tuners: High-end CODEM IV
World-Tuner (switchable): No
Wave bands: FM, AM
Radio Data System (RDS): AF, PS, TA, TP, REG
Travelstore: No
Band Scan / Preset Scan: No / Yes
Search via frequency: Yes
Select via frequency scale: Yes
Station memory (presets): 18 FM / 12 AM
Frequency response (Hz) -3dB: 60 – 15.000

DIGITAL RADIO
DAB+ built-in: Yes
DAB Band III / L-band: Yes / No
Service update: Yes
Manual ensemble search: No
Station memory: 18
Ensemble browsing: No
Station browsing: Yes
Band Scan / Preset Scan: Yes / No
Service link DAB-FM: No
Radio Text: Yes
Programme Typ (PTY): No
DLS (Dynamic Label Segment): Yes
Slideshow: Yes

SMARTPHONE CONNECTIVITY
Apple CarPlay: Yes (via USB)
Android Auto: Yes (via USB)

DATA CARRIER
USB-removable storage: USB (up to 32GB)
Formatting MSD: FAT / FAT 32

MEDIA PLAYER
Video playback file formats: AVI, Mkv, DivX®
Picture playback formats: JPEG, JPG
Audio playback formats USB: MP3, WMA, FLAC, WAV, OGG
MP3 Title display: ID3-Tag (Version 1 und 2), file/folder names
Album art display: Yes
Mix: Yes (all, folder)
Repeat: Yes (all, folder, title)
Fast forward / fast rewind: Yes (via progress bar)
Number of files on MSD: up to ~ 20.000 files, depending on folder/file structure

BLUETOOTH
Supported version: Bluetooth 5.0
Supported profiles: HFP, PBAP, A2DP, AVRCP, HSP
Pairing (number of devices): 6
Hands-free calling: Yes
Voice dial: No
Key functions: accept / hang up / reject call
Phone book access: Yes (up to 1.000 entries by phone)
History call lists: Yes
Auto synchronisation: Yes
Auto connect / Auto answer: Yes / Yes
2nd call handling: No
Microphones: Built-in + external

EQUALIZER
Number of bands: 8
Model: Parametric
Type: Digital
Frequency ranges: 62 Hz/ 125 Hz/ 200 Hz/ 500 Hz/ 1.25k/ 5k/ 8k/ 12.5k
Subwoofer switchable: Yes
Subwoofer crossover freq.: 80 Hz / 120 Hz / 160 Hz
Subwoofer gain: Yes
Sound presets: Yes
Balance / Fader: Yes / Yes

AMPLIFIER
Number of channels: 4
Max. power: 4 x 45 Watt

INPUTS
Antenna: 2 (Radio- DIN, DAB -SMB)
DAB: built-in
DVB-T: No
SiriusXM: No
USB: Rear USB (Standard A-Type)
Memory cards: No
HDMI: No
Audio / Video (analogue): AV-In 1: Rear A/V (3.5 mm jack, 0,5V)
Rear view camera: Yes
Reverse gear: Yes
Handbrake: Yes
External hand-free micro: Yes (3.5 mm jack, rear)
Steering wheel remote control: Yes (SWC, rear, analogue, 3.5 mm jack, programmable via menu)
Power supply: 12 V (ISO)

OUTPUTS
4-channel preamp out: yes (RCA, 2V)
Subwoofer: yes (RCA)
Audio channels: 4

GENERAL
Installation: 2-DIN slot
Operating voltage: 10,5 – 16 V
Current consumption: In operation:  < 10 A
Front Panel: Fix
Gewicht: ca. 1,03 Kg
Einbauabmessungen: 95,55 x 178 x 100 mm (T x B x H)
Colour: Black

ACCESSORIES INCLUDED IN DELIVERY
User manual included: Yes
IR remote control: Yes
DAB+ antenna: No
External hands-free micro: Yes
Mounting frame: Yes
Mounting material: Yes
Connector cable sets: Yes
