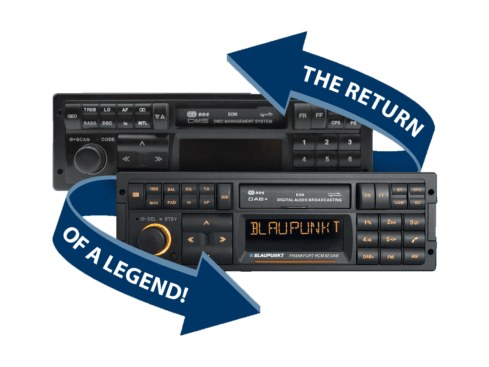

Rediscover the iconic style of the Blaupunkt Frankfurt with a modern twist! The RCM 82 DAB seamlessly blends its classic “youngtimer” aesthetic with cutting-edge technology, making it the perfect upgrade for vintage and modern vehicles alike. Enjoy crystal-clear digital radio, seamless smartphone integration, and versatile media playback options, all wrapped in a timeless design.
Key Features
- DAB+ Digital Radio: Experience a wide selection of stations in superior, noise-free digital quality.
- Made for iPhone: Enjoy seamless integration with your iPhone for music playback and control.
- FLAC Support: Listen to your high-resolution audio files in their original, lossless quality.
- Bluetooth Connectivity: Stream music wirelessly, make hands-free calls, and enjoy convenient access to your phone’s features.
- Versatile Media Playback: Play your favorite tunes via USB, SD card, or AUX input. Supports a wide range of audio formats including MP3, WMA, FLAC, AAC, APE, and WAV.
- Classic Blaupunkt Design: Retains the iconic look and feel of the original Frankfurt series, perfect for classic car enthusiasts.
- Vario Colour Illumination: Customize the display with 4096 different colors to match your car’s interior.
- Sound Customization: Fine-tune your audio experience with a 2x 14-band parametric equalizer and adjustable bass/treble controls.
- Steering Wheel Control Ready: Integrate seamlessly with your vehicle’s existing steering wheel controls for added convenience (requires compatible interface).
Specifications
Specifications
General:
- Type: Youngtimer Car Radio with DAB+/FM/AM Tuner and Digital Media Playback.
- Design: Classic Blaupunkt “Frankfurt” aesthetic.
- Display: Negative LCD with anti-reflective coating, wide viewing angle, 2-line alphanumeric/symbol display, Vario Colour illumination (4096 selectable colors), manual Day/Night mode (via dimmer connection), multi-level adjustable brightness.
- HMI Languages: English, German.
- Standby Current: < 3.5 mA.
- Software Update: via USB.
- Permanent Memory: Retains settings and presets.
- Dimensions: (50mm x 178mm x 116mm (H x W x D, housing only), 58mm x 186mm x 10mm (H x B x T, front w/o keys)).
- Weight: Approx. 0.67 kg.
- Operating Voltage: 10.5 – 14.4 V DC.
- Power Consumption: In operation: < 10A, 10 sec. after ACC power off: < 3.5 mA.
- Steering Wheel Control (SWC): Analog, programmable, pre-programmed.
Radio Tuner:
- Tuner Type: High-End Automotive Tuner Blaupunkt CODEM IV.
- Frequency Bands: FM (87.5 – 108 MHz), AM (531 – 1602 kHz), DAB/DAB+ (Band III 174.928 – 239.200 MHz).
- World Tuner: Switchable for EU, USA, South America, Thailand frequency bands.
- Station Memory: 15x FM, 10x AM, 15x DAB presets.
- Station Memory Levels Deactivatable: FM2, FMT, AM, AMT, DAB2, DAB3
- Radio Text/Radio Text Plus (RT/RT+): Yes.
- Display DLS/ENSEMBLE/SERVICE: Yes.
- Alternate Frequency Function (AF): Yes.
- Traffic Radio (TA) FM/DAB: Yes.
- RDS Time (CT): Yes.
- Enhanced Other Network (EON): Yes.
- Regional Function (REG): Yes.
- Program Type Identifier (PTY) FM/DAB: Yes.
- PTY Seek FM/DAB: Yes.
- Travelstore/Number of Presets for Travelstore: Yes / 5x FM/T, 5x AM/T.
- Band Scan + Preset Scan FM/DAB: Yes.
- Sensitivity (FM): Two levels (lo / dx).
- Noise Suppression (FM): Yes.
- Hi-Cut (FM): Yes (multi-level switchable).
- DAB-DAB Service Following: Yes.
- DAB-FM Service Following: Yes.
- Service Scan/Selection/Browsing (Ensemble/Service): Yes.
- Frequency Response FM: 30 – 15.000 Hz +/- 3 dB.
- Frequency Response DAB: 20 – 20.000 Hz +/- 3 dB.
Mediaplayer:
- AUX Input: Front (3.5 mm jack).
- USB: Front (Type A, recessed jack), Rear (Type A, cable).
- USB Detection/Automatic Source Activation: Yes.
- Memory Card Reader: Yes (microSD/microSDHC/microSDXC), concealed front inputs (USB & microSD usable with flap closed).
- Compatible File System (USB, memory cards): FAT16, FAT32, exFAT.
- Maximum Storage Size (USB, memory cards): > 128 GB.
- Maximum File/Folder Count (USB, memory cards): > 30.000.
- Playback Formats: MP2, MP3, WMA, FLAC, M4A(AAC), APE, WAV.
- Display Formats: ID3V2 (title, artist, album), folder, file, playtime.
- Folder & File Browsing: Yes (single/continuously).
- Scrolling: Yes (single/continuously).
- iPod, iPhone Control: Yes (USB front and rear).
- Shuffle/Folder/Media: Yes.
- Repeat Title/Folder/All: Yes.
- Mix / Repeat / Scan: Yes.
Bluetooth®:
- Phone Call: Yes.
- Internal Microphone: Yes.
- Connectivity ext. microphone: Yes.
- Answer/Reject Call: Yes.
- Access Phonebook: Yes (max. 1000 numbers).
- Audio Streaming: Yes.
- Audio Streaming ID3 track display: Yes (Title, Artist, Album, Playtime).
- Voice assistant access (e.g. Siri, Google, Alexa): Yes.
- Cell phone navigation audio mix: Yes.
- Auto wake-up on call: Yes (when radio off + ignition on).
- Fast pairing without PIN: Yes.
- Automatic reconnection: Yes.
- Bluetooth Version: 5.0 LE.
- Number of paired devices: Max. last 5.
- No. of devices connected at the same time: Max. 2 (Twin Connect).
- Supported profiles: A2DP, AVRCP, HFP, SPP.
- Audio Codecs: aptX, AAC, SBC.
Sound:
- Equalizer: 2x 14-band parametric / 1.00-2.00.
- Bass/treble adjustment: Yes / yes (+/- 12 steps).
- Source specific bass/treble adjustment: Yes.
- Balance/fader: Yes / yes (+/- 12 steps).
- HPF / LPF: Yes (separately for front/rear channels, variable).
- Loudness: Yes.
- Sound presets: Rock, Pop, Classical.
- Speaker outputs (channels): 4.
- Preamp outputs (channels, voltage): 4 (RCA, < 4V).
- Max. Power: 4 x 50 Watts.
- Sine power at 14.4 V: 4 x 24 Watts (according to DIN 45324).
- Sub-Out: 2 (RCA, gain/frequency variable).
Accessories
- DAB antenna (optional accessory).
- IR remote control (optional accessory).
- External BT microphone.
- Unlocking tools.
- Connectors (ISO A, B).
- Antenna adaptor (DIN/ISO).
