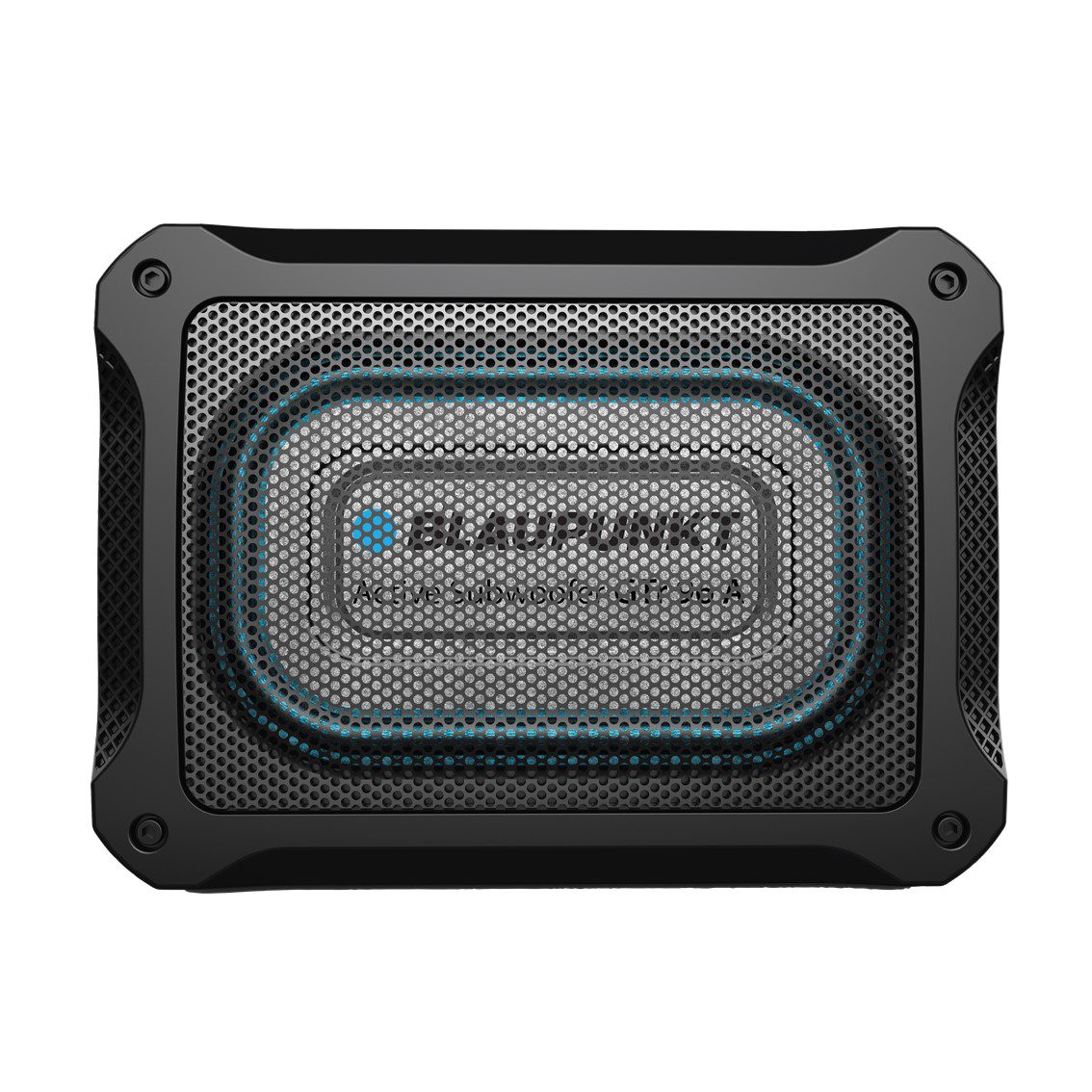

Active Subwoofer GTr 96 A is designed by German engineering to perfectly play its role in producing the ultimate sound system through active subwoofer and amplifier to deliver a clean bass sound. Blaupunkt Active Subwoofer GTr 96 A comprises of high power amplifier with 150W maximum output power and Amplifier technology of Class AB. As for the subwoofer, it weighs about 3.7 KG and Aluminium as cone composition.
Specifications
GTr 96 A Specifications
Subwoofer
- Max. Output Power : 150W
- Speaker Size : 214.5mm x 135.0mm
- Cone Composition : Aluminium
- Magnet Type : Ferrite
- Wired Remoted : Included
- Enclosure Housing Material :
- Aluminium Die-cast Sealed
- Enclosure Dimension (mm) :
- 280 (W) x 200 (D) x 72 (H)
- Enclosure Net Weight : 3.7kg
Amplifier
- Amplifier Technology : Class AB
- Normal Output Power (RMS) : 96W
- Max. Output Power : 150W
- Sensitivity (In Car/1W) : 92dB
- Signal / Noise Ratio (dB) : 91dB
- Impedance : 2.2 +2.2 ohms
- Frequency Response : 40Hz – 150Hz
- Low Pass Filter (LPF) : 50Hz – 100hz
- Voltage : 14.4 (10V – 16V)
- Phase Switch : 0 deg / 180 deg
- Automatic On/Off (Hi & Lo) : High Level Only
- Audio in Sensitivity :
- Speaker Input (0.8V) / RCA Input (82mV)
GTr 96 A Accessories
- Remote Controller : Wired Remote
- DC Cord : 5.0meters
- Screws (Parker-Type) : 5 x 15mm
- Screws (M-Type) : 4 x 8mm
- 2 x Mounting Bracket A : 72mm x 40mm
