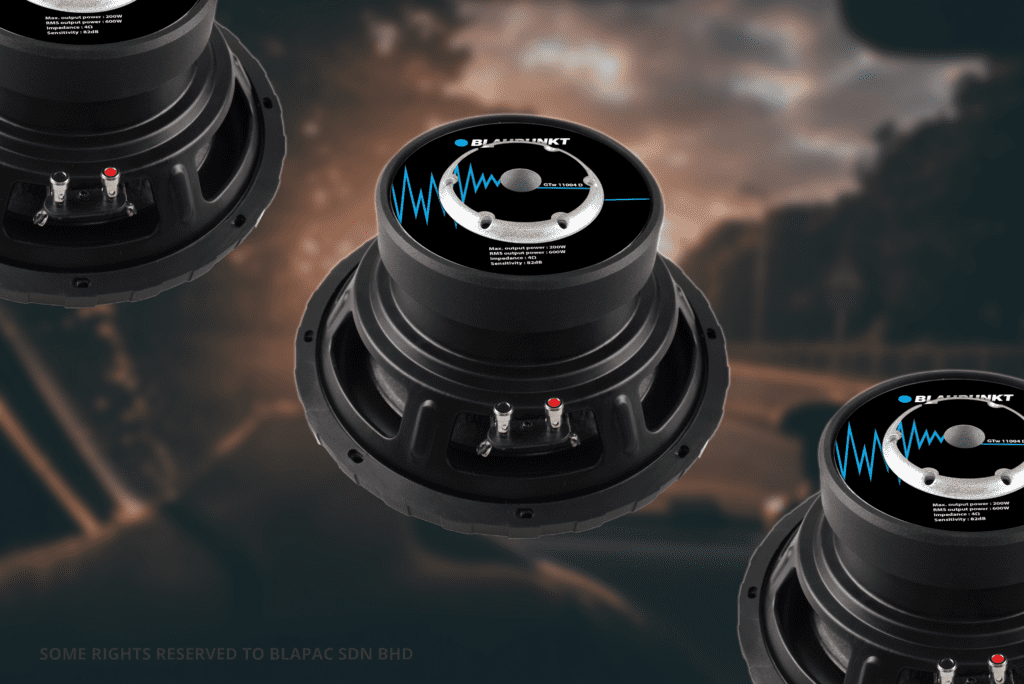

A piece of dual voice coil 10.0” woofer made of the vented pole piece and bumped back plate. GTW 11004 D is a dual voice coil speaker offers wiring flexibility with its two voice coils. It allows single speaker to output both stereo channels through one speaker, creating a stereo sound from a single speaker location.
HIGHLIGHTS
Frequency
A woofer is a speaker in your system that handles low-frequency audio signals. The GTW 11004 D offers a frequency range of 45-800 Hz, which will improve your listening experience when playing your favourite song.
Sensitivity
Your GTW 11004 D’s capability to convert power (watts) into volume is indicated by its sensitivity rating (decibels). Your speakers’ volume will increase as the sensitivity rating rises up to 82 dB.
Impedance
Impedance is a measurement of a woofer’s voice coil’s resistance to the amplifier-supplied audio current. GTW 11004 D has a 4 ohm resistance, thus the music it produces will be fascinating.
SPECIFICATION
WIRING DIAGRAM
INSTALLATION
Sealed Enclosure
Vented Enclosure
Specifications
GTW 11004 D Specifications
- Nominal Diameter : 10“
- Power Handling (RMS) : 200 watts
- Power Handling (max) : 600 watts
- Impedance : 4 ohms
- Sensitivity : 82 dB @ 2.83V/1m
- Frequency Response : 45 – 800 Hz
- Voice Coil Diameter : 49.5mm
- Magnet Weight : 50 Oz
- DC Resistance (Re) : 3.6 Ohms
- Resonant Frequency (Fs) : 50 Hz
- Mechanical Q (Qms) : 1.732
- Electromagnetic Q (Qes) : 1.415
- Total Q (Qts) : 0.779
- Diaphragm Mass Inc. Airload (Mms) : 140g
- Mechanical Compliance of Suspension (Cms) : 61.394u M/N
- Surface Area Of Cone (Sd) : 31.416m m²
- BL Product (BL) : 11.083 Tm
- Compliance Equivalent Volume (Vas) : 8.604m m²
- Maximum Linear Excursion (Xmax) : 10 mm
- Cone / Diaphragm Material : Paper / aluminium
- Surround Material : Rubber
- Voice Coil Wire Material : Copper
- Voice Coil Former : Aluminium
- Basket/Frame Material : Steel
- Magnet Material : Ferrite
- Overall Outside Diameter : 10.35″
- Overall Depth : 5.16″
- Baffle Cut-out Diameter : 9.13″
- No. of Mounting Holes : 8
- Mounting Hole Diameter : 9.69″(246mm)
- Size & Weight : 262x262x131mm & 3.4kg
