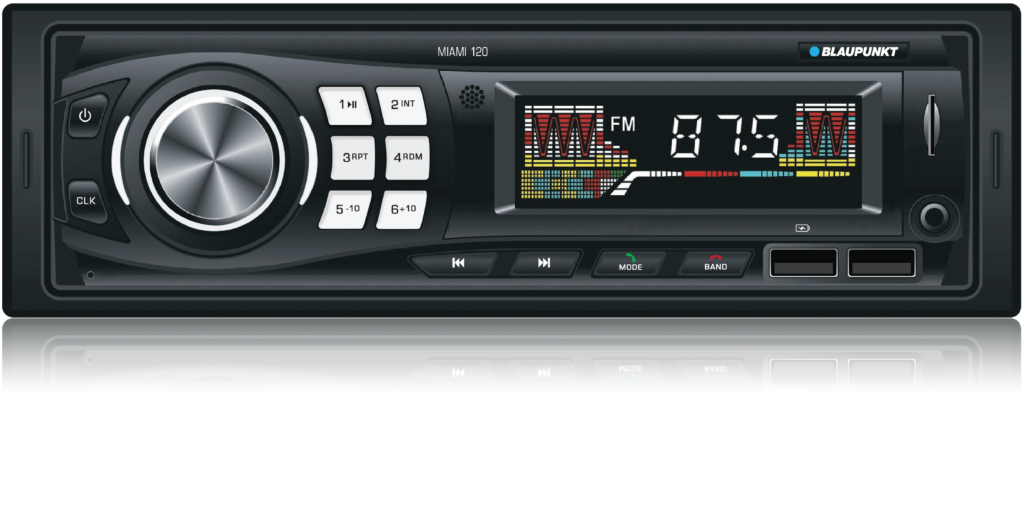

With Blaupunkt’s Miami 120, you can now easily browse and select your favourite song.
Miami 120 has been designed with a multi-color display key and LED backlight, you may drive in style.
HIGHLIGHT
Bluetooth (BT)
Pair your device with Miami 120 via Bluetooth to listen to your favorite songs stored on your device. It has a built-in external microphone to allow making and receiving phone calls.
MicroSD
MicroSD is the smallest SD flash memory card available. The SD Slot on Blaupunkt’s Miami 120 is compatible with SHDC MicroSD cards with capacities ranging from 4GB to 32GB.
Radio Data System (RDS)
FM radio stations can provide extra data in addition to their usual programme transmission thanks to the Radio Data System (RDS). While driving, your Miami 120 will automatically receive and display radio station information such as the station name, current time, and the name of the programme that is currently being broadcast.
2x USB (1x Media, 1x Charging)
Apart from Bluetooth, Miami 120 120 is equipped with two USB port to allow data connectivity such as music playback from your device and charging your phone in the car.
COMFORT BROWSING
The Miami 120 comes with two USB Port one for playback and one for charging, BT, microSD & Aux-in . You can comfortably browse the songs on your phone to play on the car radio and charge your phone at the same time
MAX. OUTPUT POWER
Blaupunkt Miami 120 Car Radio delivers a maximum outpower of 200 watts. This level of power is able to create an intensifying environment whenever you are listening to your favorite songs. Exciting as it sounds, Blaupunkt ensures your listening experience is satisfied.
KEY FUNCTION
1.ON/OFF
2.Volume/Colour/Mode Knob
3.Radio Mode
4.Radio Mode
5.Radio Mode
6.Radio Mode
7.LCD
|
8.SD
9.AUX-IN
10.USB(MEDIA)
11.USB (Charging)
12.Radio Mode
13.Media Mode
|
WIRING DIAGRAM
A1.Rear Left –
2.Rear Left +
3.Front Left –
4.Front Left +
5.Front Right –
6.Front Right +
7.Rear Right –
8.Rear Right +
|
B1.Black (GND)
2.Red (ACC)
3.-
4.Blue (ANT)
5.Yellow (B+)
6.-
7.-
8.-
|
HARDWARE AND ACCESSORIES
INSTALLATION INSTRUCTION
DISMANTLE INSTRUCTION
Specifications
Miami 120 Specifications
Display
•Multi-colour display key with LED backlight
•Fixed panel
Tuner
•30 preset station
•AM/FM/RDS Radio
•Local seek tuning
Audio
•Audio : MP3
•4x50W Built-in Amplifier Max. Output Power
•RCA rear preout
•Preset Equalizer
•Input Power : 12~24V
•Current Consumption : 200mA (Standby mode), 10A (Max Current Consumption)
Media Playback
•MP3/WMA/WAV Playback
•2x USB 2.0 (1x Media, 1x Charging)
•MicroSD (Support up to 32GB)
•Front Aux input
•BT
