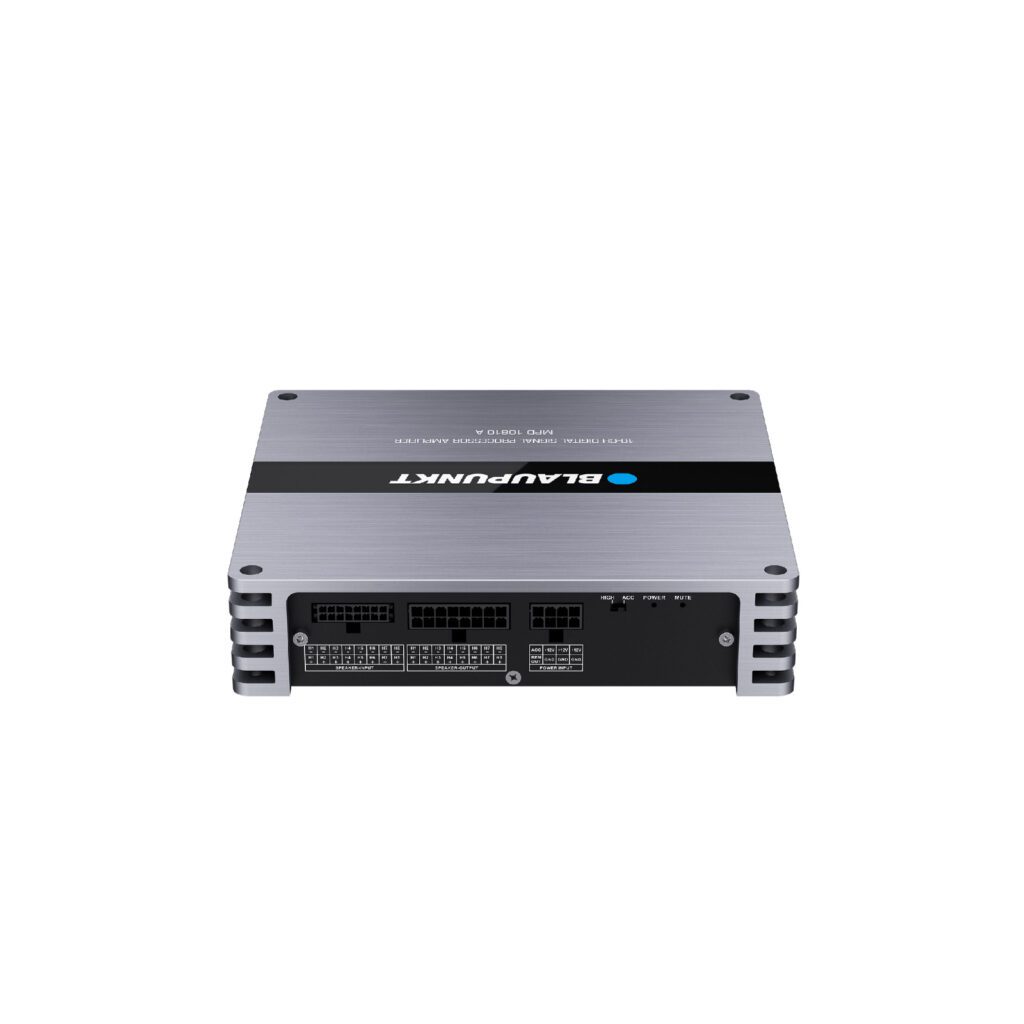

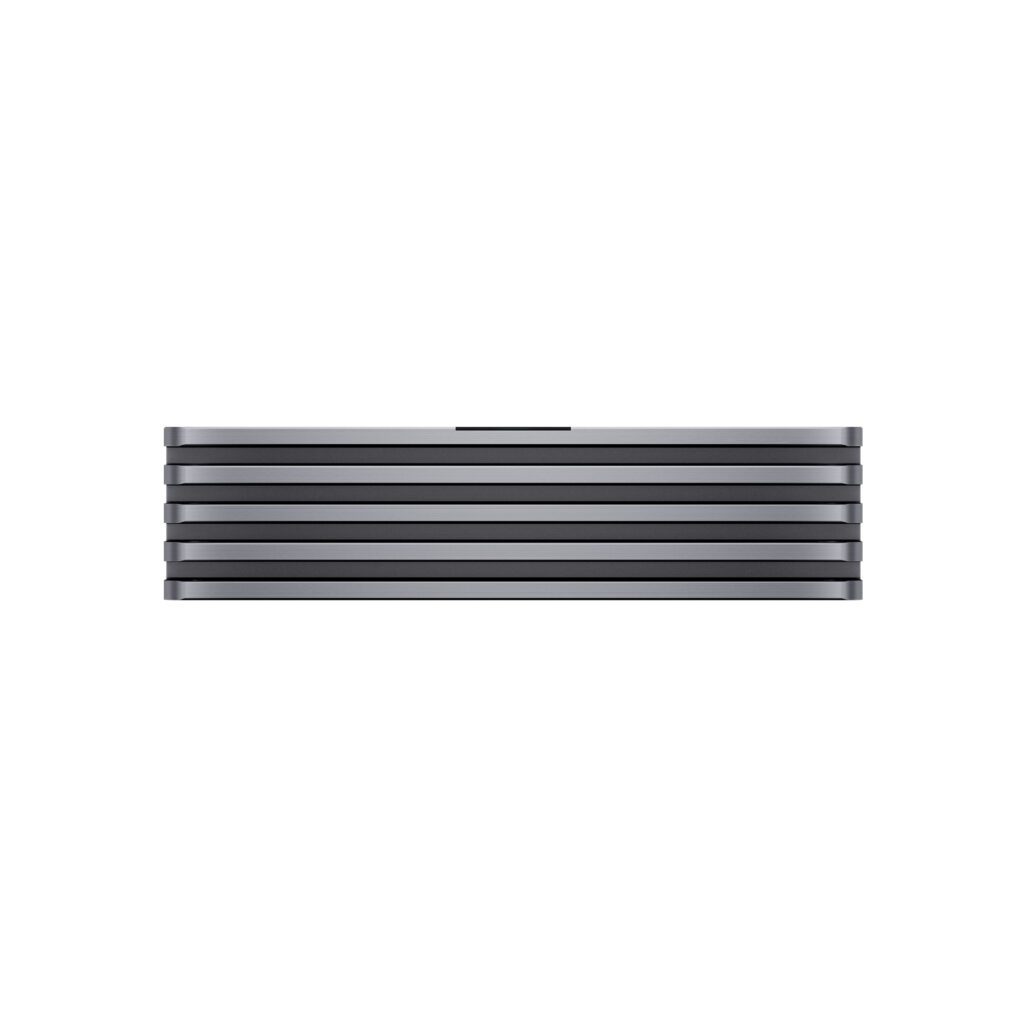

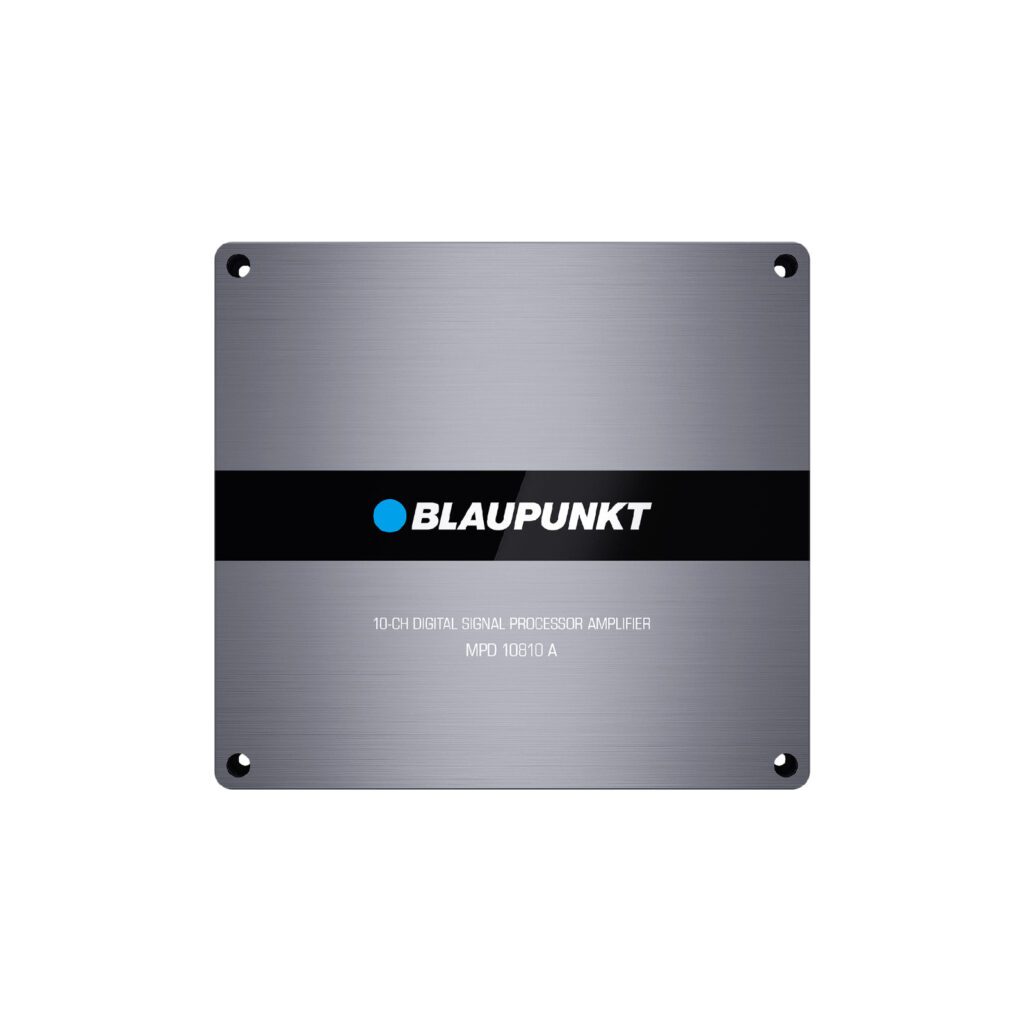

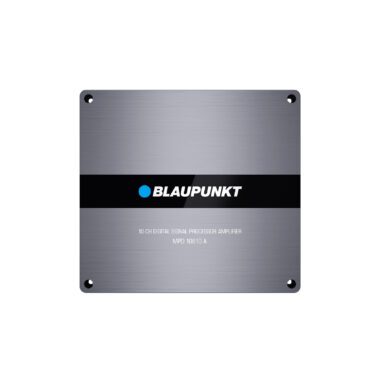

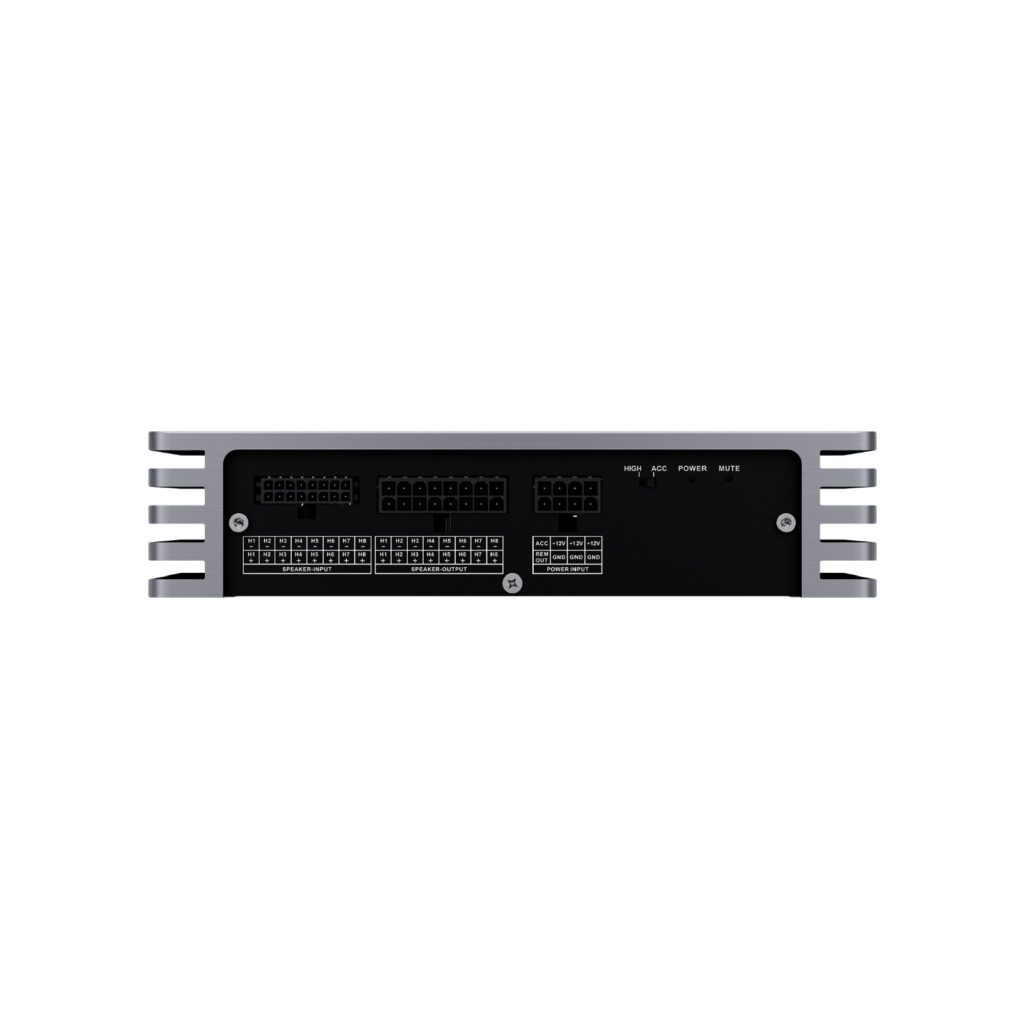

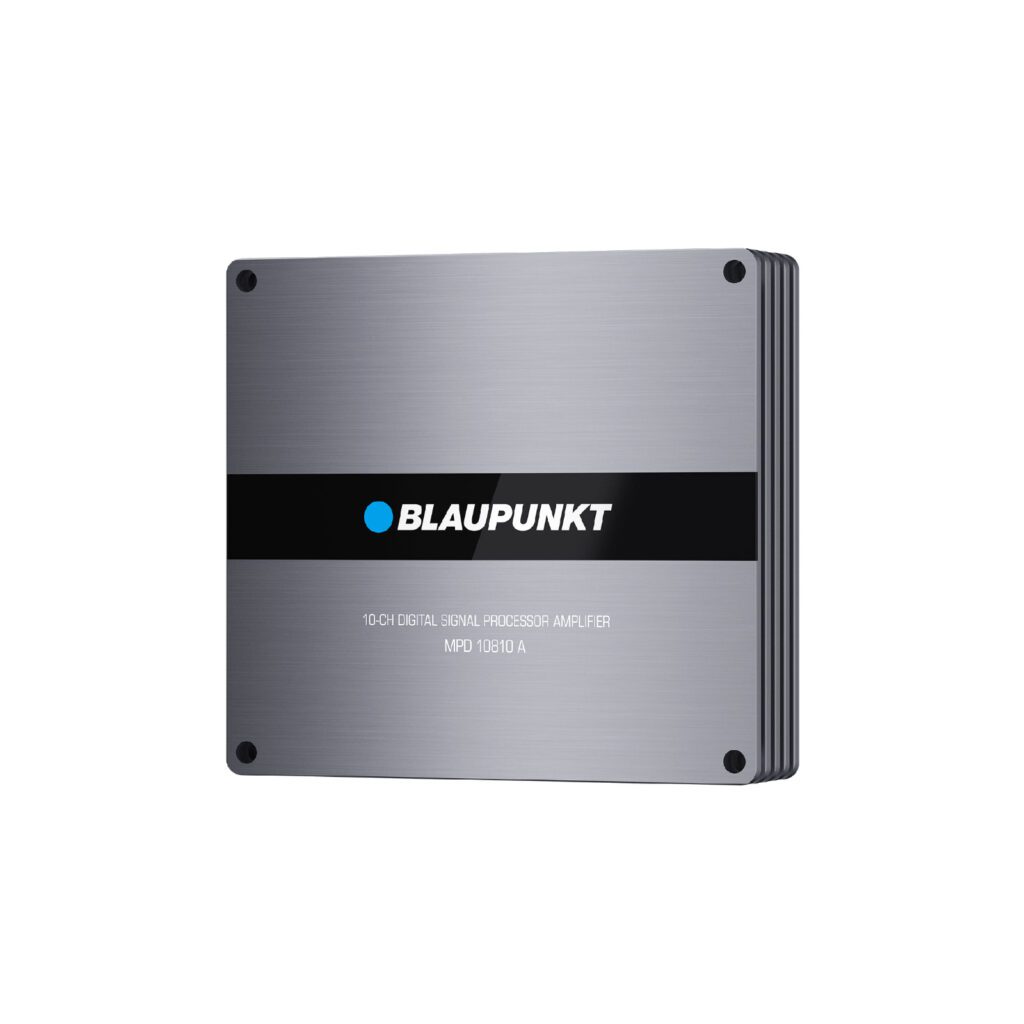

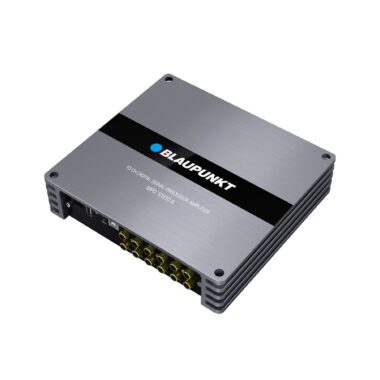

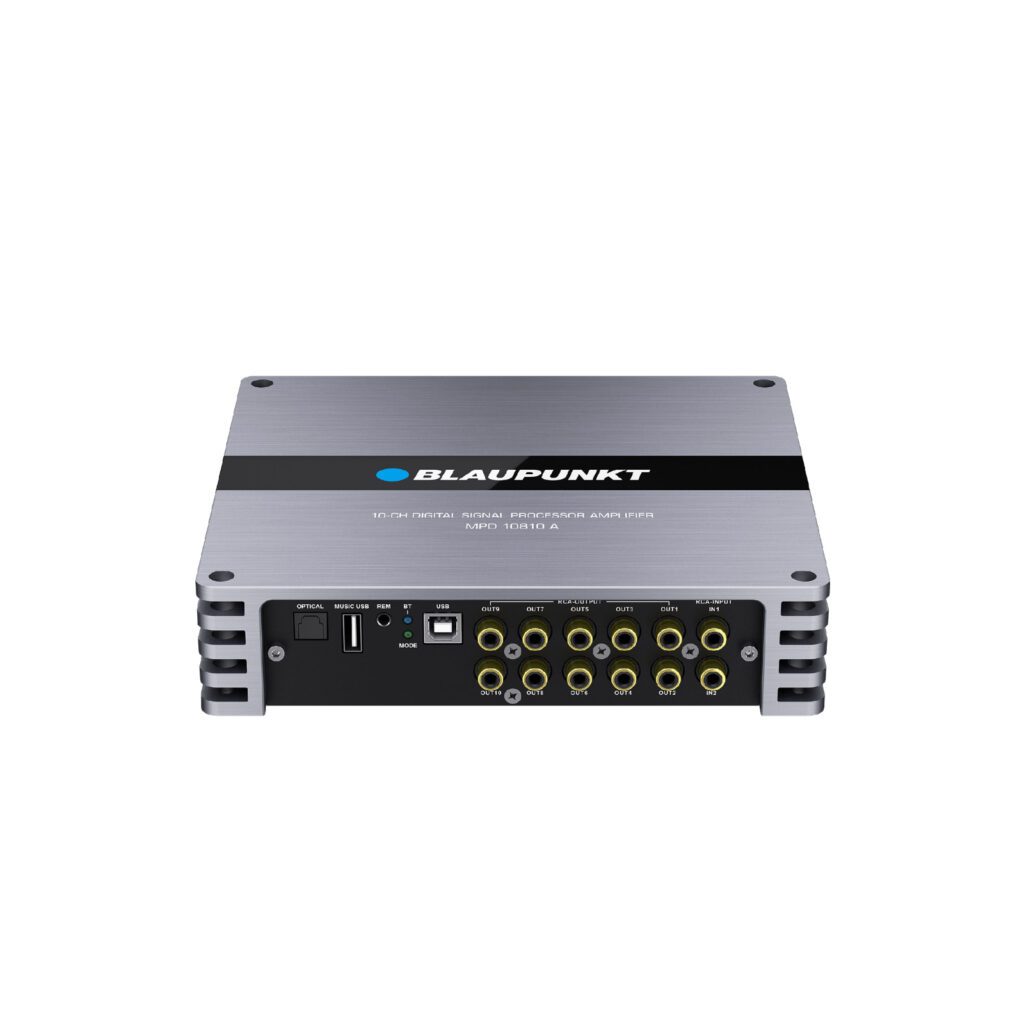

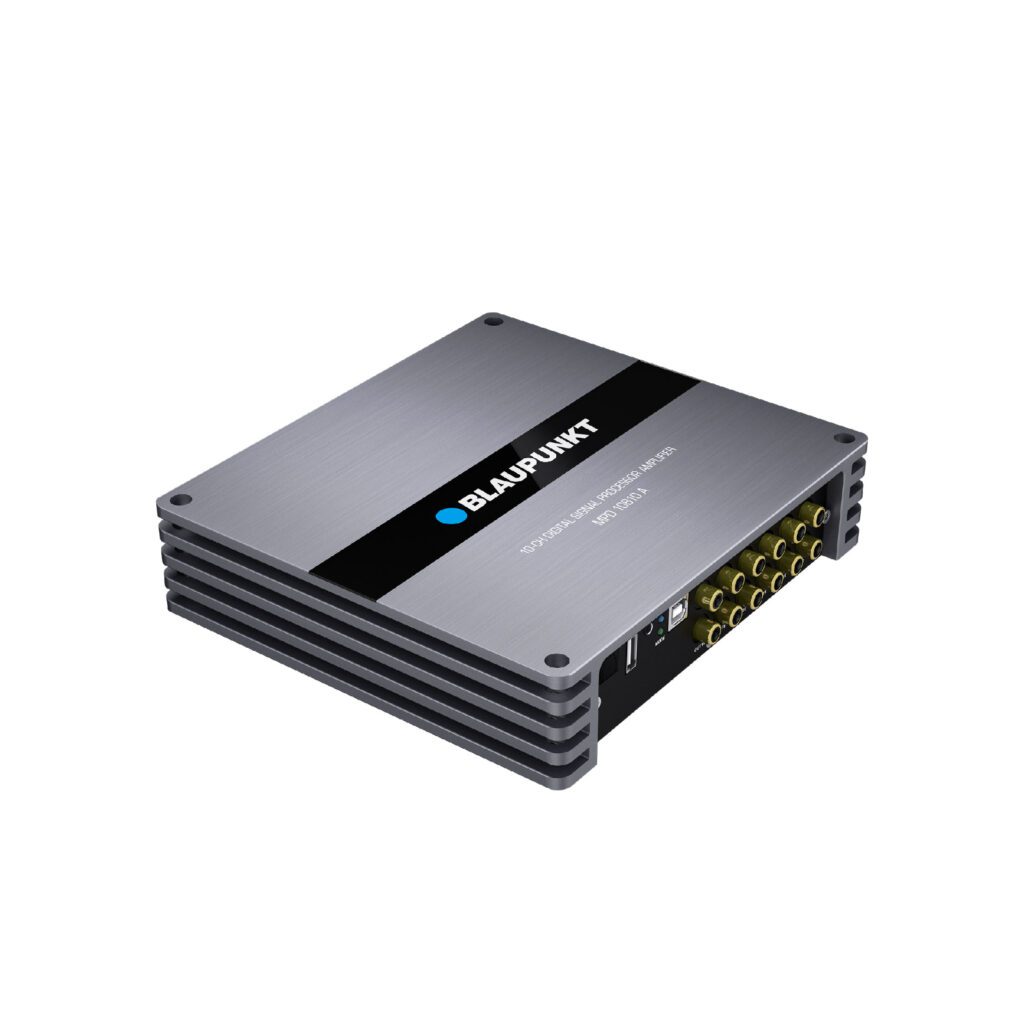

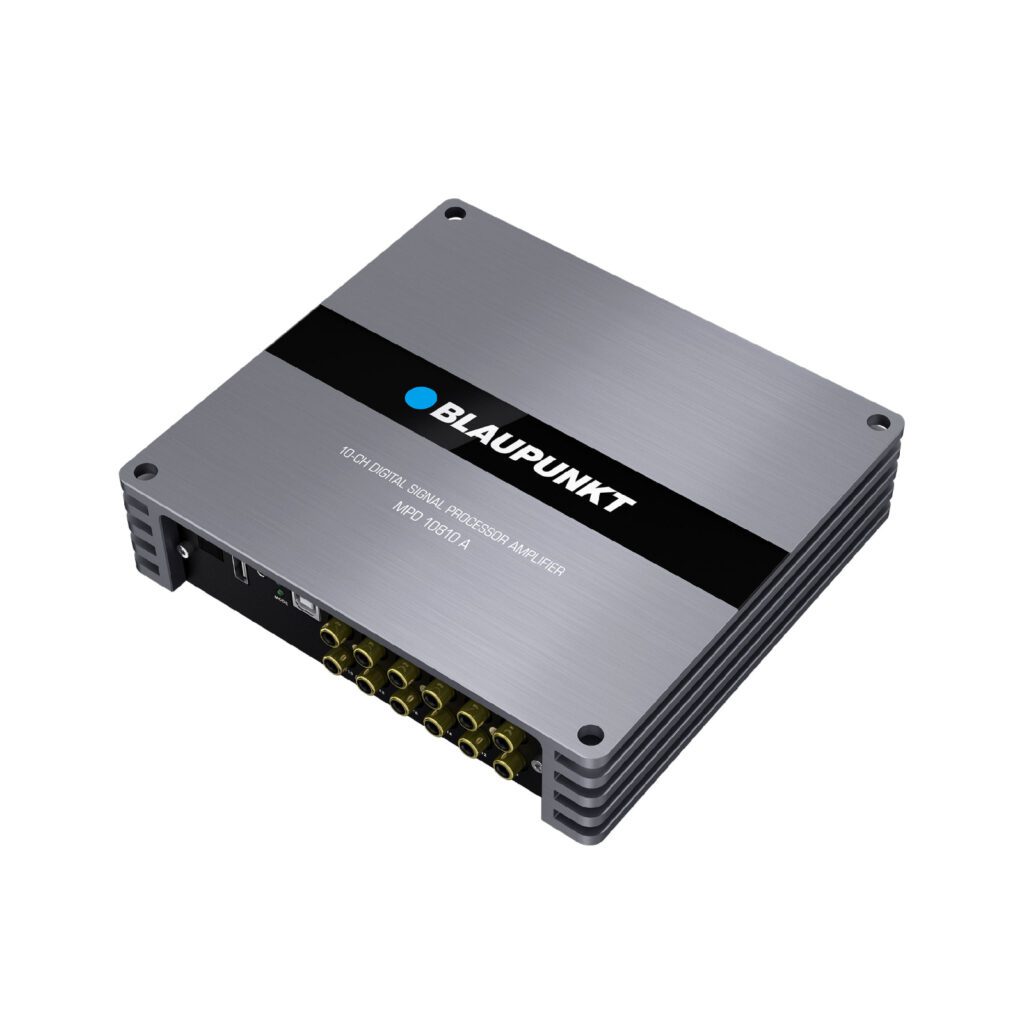

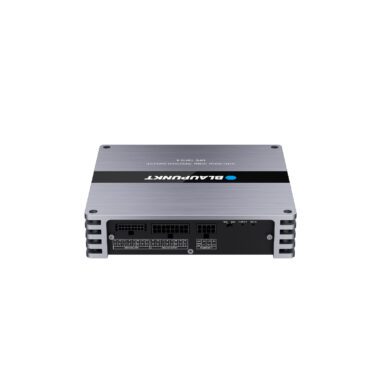

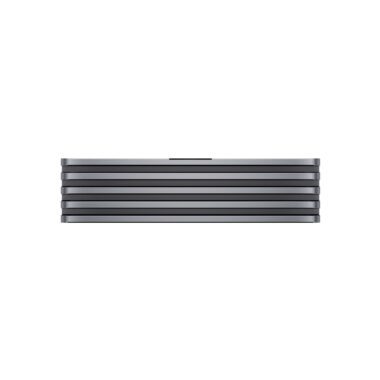

DSP With Class D Amplifier

MPD 10810 A

Velocity Power Series | 8-Ch High/2-Ch Low Level Inputs | 8-Ch High/10-Ch Low Level Outputs

Specifications

MPD 10810 A Specifications

Audio

  • DSP RMS Power : 50W x 8(4Ω)
  • DSP Resolution : 24Bit
  • DSP Power : 240MHz
  • DSP Output Power RMS @ 4 Ohms (≤10% THD) : 65Wx8
  • Distortion (THD) : ≤0.8%
  • Operating Voltage : 10 -17V
  • Sampling Rate : 44.1kHz/16Bit
  • Signal Converter A/D : MS5358
  • Signal Converter D/A : MS4344

Input

  • 2 x RCA/ Aux-in
  • 8 x High Level Speaker Input
  • 1 x Optical SDPIF
  • 1 x USB Flah Drive
  • RCA/Cinch Sensitivity : 0.75V
  • High Level Input Sensitivity : 6.8V
  • Low Level Input Impedance : 15k Ohms
  • High Level Input Impedance : 4.7 Ohms
  • S/N Ratio Digital-in : ≥93dB
  • S/N Ratio Analog-in : ≥93dB

Output

  • 10 x RCA/Cinch
  • 8 x High Level Speaker Output
  • Output Voltage : 14.1V

Feature

  • Class D Amplifier
  • Max. Output Power : 520W
  • Frequency Response : 20Hz-20kHz
  • Max. Current Consumption : 40A
  • Dimension (W x H x D): 198 x 182 x 45mm
  • Weight: 1.48kg

Our brand partner bears sole responsibility for the information offered.
