Carbon Fiber
- Upgraded Carbon Fiber Braided Diaphragm
- 35mm voice coil
- suitable for low frequency
- offering more natural audio effect
Cooling Airflow
- Magnetic circuit guide design
- Less linear sound distortion
- Voice coil with better heat dissipation & can withstand more power
Ferrite Magnet
- Large size aviation grade ferrite magnet
- Ensuring a sufficiently large dynamic magnetic field
- Allowing the sound to be retracted freely
Aluminium Alloy
- Effectively reduce magnetic field influences and resonances
- Ensure that every sound detail is restored
NdFeB & Cortina
- High-performance silk film
- 28mm voice coil, NdFeB liquid magnetic circuit
- Wide frequency response, natural and transpiring sound
Precision Components
- Using high-precision components
- Effectively reduce transmission loss
- Open design with good heat dissipation to ensure optimal operation
Dimension
Installation
Specifications

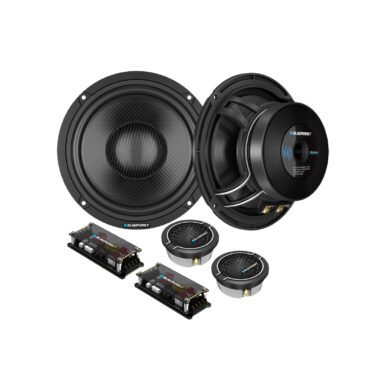

MPS 1662 C35 Specifications
Woofer
- Speaker Size : 6.5”
- Max. Power Handling : 150W
- RMS Power handling : 60W
- Impedance : 4Ω
- Frequency Response : 62Hz–20kHz
- Sensitivity : 88dB
- Cone Material : Carbon fibre
- Surround Material : NBR
- Dust Cap Material : Carbon fibre
- Magnet Type : Ferrite
- Magnet Size : 16.57oz
- Basket Material : Cast Aluminium
- Spider Material : CONEX
- Voice Coil Diameter : 35.55mm
- Mounting Depth : 67mm
- Diameter Hole : 140mm
Tweeter
- Tweeter Size : 1.1”
- Max. Power Handling : 30W
- RMS Power Handling : 15W
- Impedance : 4Ω
- Frequency Response : 800Hz-20kHz
- Sensitivity : 92dB
- Tweeter Cone Material : Silk Dome
- Magnet Type : Neodymium
- Voice Coil Diameter : 28.3mm
