Confidence, Engineered.
Experience the ideal fusion of precision engineering and everyday assurance. The TPMS 3.1 E & V keeps you connected to your tyres—so you stay in control of every journey.
Precision Where It Matters
Delivering real-time data at 433.92 MHz, this advanced monitoring system detects pressure and temperature fluctuations with remarkable accuracy:
- Pressure Accuracy: ± 0.15 Bar / 2.2 PSI
- Temperature Accuracy: ± 3°C
- Range: 0 – 8.0 Bar / 0 – 116 PSI
Built for the Road, Designed for Life
From icy mornings to blazing motorways, the TPMS 3.1 E & V is made to perform under pressure:
- Sensor Operating Temperatures:
• External Sensor: -30°C to 60°C
• Valve Sensor: -40°C to 120°C - Receiver Operating Temperature: -40°C to 125°C
Effortless Efficiency
Low power, high reliability.
- Sensor Voltage: DC2.1V–3.3V
- Receiver Voltage: DC12V ± 2V
- Operating Current: <15mA
Stay Ahead. Stay Safe.
With TPMS 3.1 E & V, you’re not just monitoring your tyres—you’re enhancing your entire driving experience.
Specifications
TPMS 3.1 E & V Specifications
Sensor
- Operating Frequency – 433.92 ± 0.03 MHz
- Battery Voltage – DC2.1V–DC 3.3V
- Operating Temperature – 30°C – 60°C (External Sensor), 40°C – 120°C (Valve Sensor)
- Pressure Range – 0 ~ 8.0 Bar / 0 ~ 116 PSI

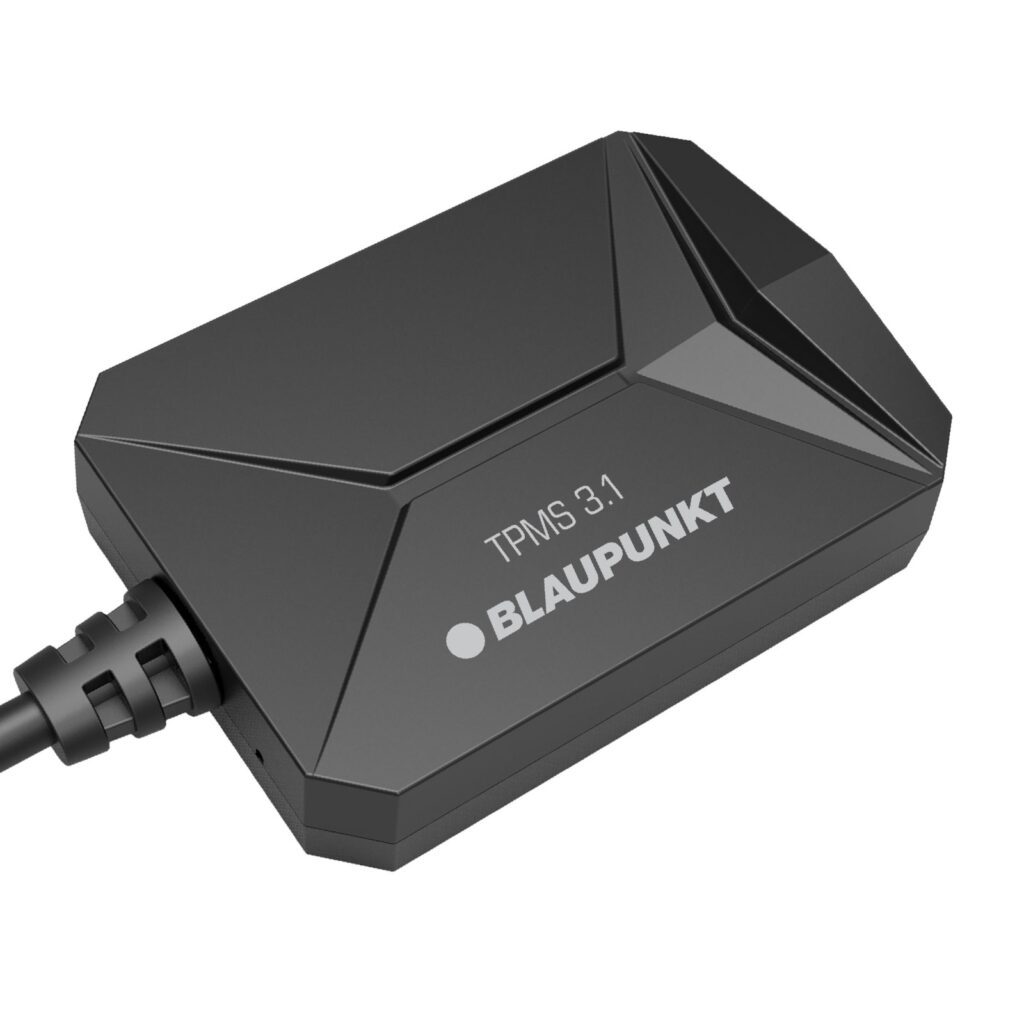

Receiver
- Operating Current – <15mA
- Operating Frequency – 433.92 ± 0.05 MHz
- Operating Voltage – DC12V ± 2V
- Operating Temperature – -40°C – 125°C
Precision
- Temperature – ± 3°C
- Pressure – 0.15 Bar / 2.2 PSI

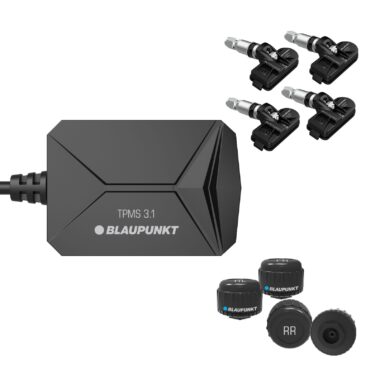

TPMS 3.1 E Accessories
- 4x External sensor
- 4x Anti Theft Nut
- 1x Wrench
- 4x Spare O-ring
TPMS 3.1 V Accessories
- 4x valve sensors
- 4x Warning Label
