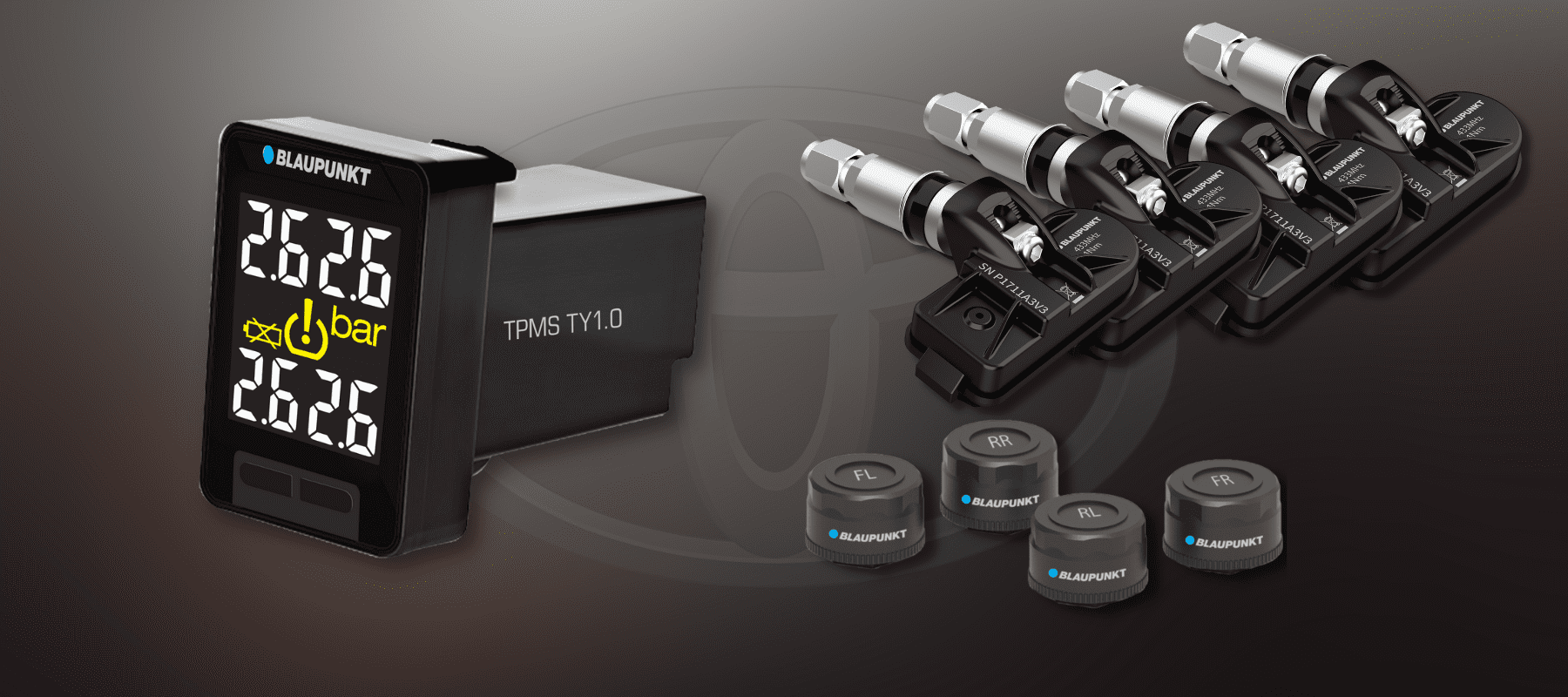

Blaupunkt Tire Pressure Monitoring System TPMS TY1.0 E/V is a wireless real-time time pressure monitor. The device aids in helping the car driver to monitor the tire pressure level in the car at all times. It comes with a set of 4 valve sensors, 4 external sensors, and also a display for tire pressure.
Display Structure / Design
The LCD display screen of TPMS HN1.0 E/V comprises several info features that enables you to acknowledge the real-time reading of the car tires.
Temperature
The reading for each tire is displayed in ºC.
Pressure
The reading for each tire displayed in Bar or Psi (has convertible unit) function.
Low Sensor Batteries
Each tire will be notified on the display screen with a visual alarm indicated as ‘Lo’.
Low Display Battery
Display screen will notify with visual alarm and audio alarm indicated as ‘beep’ sound.
Air Leakage Warning
Display screen will notify with visual alarm and audio alarm indicated as ‘beep’ sound.
High Temperature / Pressure Warning
Display screen will notify as visual alarm and audio alarm indicated as ‘beep’ sound.
Sensor Failure Warning
Target sensor will be notified on the display screen as a visual alarm indicated as ‘Er’.
Synchronous Data, Sound and Visual Alert
TPMS TY1.0 E/V screen display gets activated when the device detects motions. The tire sensor will begin transmitting data to display when the vehicle moves beyond 20km/h. The screen display will automatically turn off in 60 seconds.
Synchronous Data, Sound and Visual Alert
TPMS TY1.0 E/V screen display gets activated when the device detects motions. The tire sensor will begin transmitting data to display when the vehicle moves beyond 20km/h. The screen display will automatically turn off in 60 seconds.
External Sensor
Four sensors will be provided in the packaging, along with five anti-theft nuts to secure and tighten the sensors during the installation process. The anti-theft nuts prevent the tire sensors from being stolen and tampered with.
Valve Sensor
TPMS TY1.0 E/V comes along with four Valve Sensors which require professional installation.
Valve Sensor
TPMS TY1.0 E/V comes along with four Valve Sensors which require professional installation.
Easy Installation
The TPMS TY1.0 E/V is easy to install with the installation user guide provided in the packaging. The device must be installed with an available panel connecting to the battery.
Here’s Why You Should Have TPMS Installed
Prevent Imbalance Tire Pressure
Imbalanced pressure in car tires can cause pulling brakes and result to faulty tires. TPMS helps drivers to maintain proper tire pressure and improve tire lifespan.
Prevent Flat Tire
Exposure to warmer environment and sunlight can cause tire leaks and result to shorter lifespan. TPMS usage will help drivers be aware of abnormal tire pressure to avoid flat tires by alerting the drivers when the tire pressure is 25% below safety level.
Reduce Tire Wear
Underinflated or overinflated tires can cause tire thread to wear easily. TPMS enables the driver to keep the optimal pressure on the tires.
Prevent Tire Bursting
1 out of 4 cars has at least one underinflated tire and this leads to faulty tire that results to tire burst. TPMS ensures the driver maintains optimal tire pressure at all times.
Mandatory in Major Countries
According to NHTSA, around 700 people die from tire-related accidents every year. To prevent this, since 2012, it has been mandatory for all new EU cars to be equipped with TPMS.
Here’s Why You Should Have TPMS Installed
Prevent Imbalance Tire Pressure
Imbalanced pressure in car tires can cause pulling brakes and result to faulty tires. TPMS helps drivers to maintain proper tire pressure and improve tire lifespan.
Prevent Flat Tire
Exposure to warmer environment and sunlight can cause tire leaks and result to shorter lifespan. TPMS usage will help drivers be aware of abnormal tire pressure to avoid flat tires by alerting the drivers when the tire pressure is 25% below safety level.
Reduce Tire Wear
Underinflated or overinflated tires can cause tire thread to wear easily. TPMS enables the driver to keep the optimal pressure on the tires.
Prevent Tire Bursting
1 out of 4 cars has at least one underinflated tire and this leads to faulty tire that results to tire burst. TPMS ensures the driver maintains optimal tire pressure at all times.
Mandatory in Major Countries
According to NHTSA, around 700 people die from tire-related accidents every year. To prevent this, since 2012, it has been mandatory for all new EU cars to be equipped with TPMS.
Fit For Toyota & Honda Tire Pressure Monitoring System
Fit For Toyota & Honda Tire Pressure Monitoring System
TPMS TY 1.0E/V & TPMS HN 1.0E/V Threshold Setting
TPMS TY 1.0E / V Wireless Real-time
TPMS TY 1.0E / V Wireless Real-time
Specifications
TPMS TY1.0 E/V Specifications
Sensor
- Operating frequency 433.92MHz ± 0.05MHz
- Battery voltage 1.8V ~ 3.3V
- Operating temperature
- -30°C ~ 60°C (External Sensor)
- -40°C ~ 105°C (Valve Sensor)
- Pressure range 0~8 Bar / 0~116 PSI
Display
- Operating current <20mA
- Operating frequency 433.92MHz ± 0.05MHz
- Operating voltage +12V
- Operating temperature -30°C ~ 80°C
- Pressure display range 0~6.8Bar/0~99PSI
Default value
- High pressure value 3.1 Bar / 45 PSI
- Low pressure value 1.8 Bar / 26 PSI
- High temperature value 80°C
Precision
- Temperature +/-2°C
- Pressure 0.1 Bar / 1.5 PSI
Temperature Unit
- 1°C = 33.8°F = 274.15 K
Air Pressure Unit
- 1 Bar = 14.5 PSI = 100 Kpa = 1.02Kgf/cm²
Size
- Display: 34 x 23.5mm
- External Sensor: 21.4 x 16.55mm
- Valve Sensor: 59.1 x 79.7 x 22.3mm
Accessories (TPMS TY1.0E)
- 4 x External Sensor
- 4 x Anti-Theft Nuts
- 1 x Spanner
Accessories (TPMS TY1.0V)
- 4 x Valve Sensor
- 4 x Warning Label
