Specifications

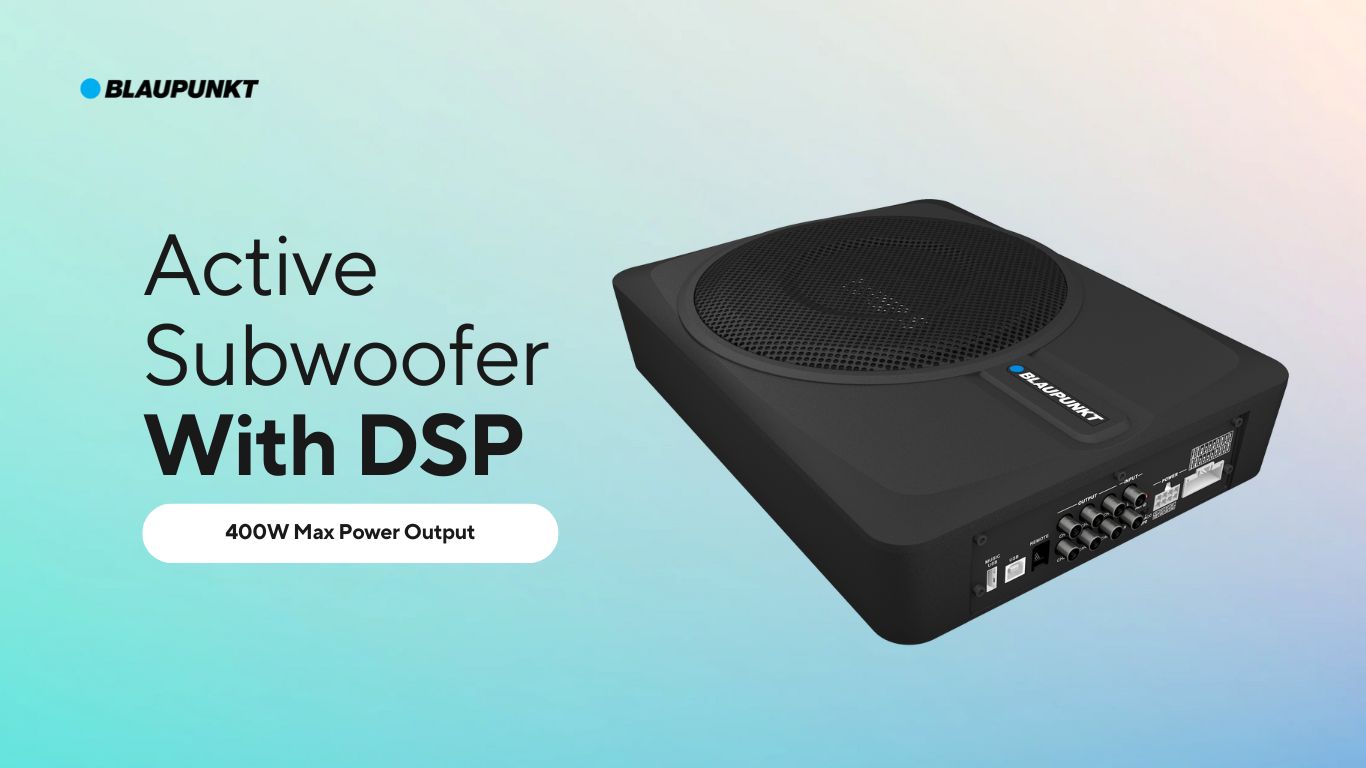

XLf 210150 AD Specifications
Audio
- DSP Resolution : 24Bit
- DSP Output Power RMS @ 4Ω
(≤1% THD +N) : 6 x 35W
- DSP Output Power RMS @ 2Ω
(≤1% THD +N) : 6 x 50W
- Active Subwoofer RMS Power : 300W
- Active Subwoofer Output Power RMS @ 2Ω
(≤1% THD +N) : 150W
- Distortion (THD) : <0.005%
- Operating Voltage : 10 -14.4V
- Sampling Rate : 48KHz/24Bit
- Signal Converter A/D : AKM7735
- Signal Converter D/A : Cirrus Logic CS4344
Input
- 2x RCA/ Aux-in
- 4 High Level Speaker Input
- 1x Remote-in
- 1x USB
- RCA/ Cinch Sensitivity : 300mV
- High Level Input Sensitivity : 2.5V
- Impedance High Level : 240Ω
- S/N Ratio Analog-in : ≥100dB
Output
- 6 x RCA/ Cinch
- 6 High Level Speaker Output
- 1x Remote-out
- Voltage RCA/ Cinch : 4V RMS
Feature
- Class AB Amplifier
- 31-Band Equalizer/Phase & Time Alignment Setting
- PC Tuner Software & Mobile Application
- Built-in BT
- Max. Output Power : 380W
- Frequency Response : 20Hz-20kHz
- Dimension (LxWxH) : 347 x 262 x 73mm
- Weight : 4.5 kg
XLf 210150 AD Accessories
- Remote Controller : 3.0m Wired Remote
- 4x Screws (Parker-Type) : 4x20mm
- 8x Screws (M-Type) : 4x5mm
- 4x Mounting Bracket A : 40x19mm
- 1x Power Cable
- 1x High Level Input Cable
- 1x USB Cable (1.5m)
