The newly released cult car radio “HAMBURG SQM 23 DAB”
Ideal for vehicles from the 80s!!
Over the years, some models have developed into true cult objects. This also applies to the legendary Blaupunkt “Hamburg SQM 23” from 1983. Now we present the new interpretation of the popular 1-DIN car radio and combine the design of the 80s model with new technologies and functions. The result is the Blaupunkt “Hamburg SQM 23 DAB”.
Its operating concept, simple design and crystal-clear reception contributed significantly to the popularity of the original Hamburg car radio. For the new edition, we adopted the styling of the original model, but at the same time gave the radio modern Variocolour lighting for the LC display. The key labels, which were then still illuminated with light bulbs, are now being replaced by modern and durable warm white LEDs. This lighting can also be activated via the vehicle lighting when the car radio is switched off.
Thanks to the Blaupunkt Codem FM RDS tuner and DAB+ digital tuner, first-class reception remains a strength of the new Youngtimer car radio. New are the multimedia interfaces for modern Apple® devices and USB mass storage media for playing music or charging mobile phones. The new model also supports Bluetooth® audio streaming from apps such as a music player or streaming service such as Spotify on the mobile phone.
With the help of the voice assistant on the mobile phone (such as Siri, Google or Alexa) the mobile phone can be accessed without having to pick it up. Of course, hands-free calling is also supported.
So that an audio source such as USB, Apple iPod or Bluetooth can be selected directly, a button on the device can be programmed via the menu to start your favorite source. The device settings are permanently saved, even if the battery is disconnected – even if this is no longer necessary thanks to the minimized standby power consumption to protect the battery.
The new “Hamburg SQM 23 DAB” has a short installation depth – ideal for classic cars with shortened installation shafts. But it’s not just the car radio itself that takes the user on a journey through time, the packaging of the device was also elaborately designed and modeled on the original.
- CODEM IV High-End Tuner
- Blaupunkt DAB+ Tuner
- 2x USB (front + rear)
- BT telephony over int. or ext. microphone
- Audio streaming with title display
- Access to voice assistants (Siri, Google, Alexa)
- Sound presets: Flat/Pop/Rock/Classic
- 4-channel preamp output + sub-out
- 4 × 50 Watt
- Variocolour (4,096 colors) display

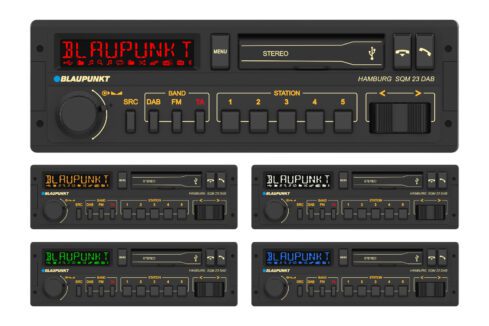

Variocolour LCD and front USB
The display of the Hamburg SQM 23 DAB can be set in 4,096 different colors and thus adapted to the vehicle-specific cockpit lighting. One of the two USB ports is hidden behind the front flap. Short USB sticks can therefore visually disappear behind the flap to maintain the original look.
Installation videos
Pictures sent by our customers
Do you have a nice photo of one of our retro car radios in your vehicle?
Then send it by e-mail to: ticket@bpautomotive.de with the subject “Einbaufoto“.
Mercedes
Audi
Opel
Specyfikacje
Highlights
RADIO
FM, AM, DAB, DAB+ Tuner with radiotext/ DLS,
Traffic function,
alphabetical DAB+ List,
Travelstore,
Service following,
Band Introscan
MEDIAPLAYER
Repeatfunction,
Mixfunction,
Apple iPod Support
BLUETOOTH
Audiostreaming with trackinfo,
Voice assistant support (e.g. Siri, Google, Alexa),
Wake-up on call,
Phonebook access
SOUND
Sound presets,
4-channel pre-amp out+ Sub-out,
4x 50 Watt
GENERAL
Night design if switched off (Buttons),
Favoritebutton for one source,
Permanent memory,
Short body (low installation depth) ,
IR-remote option (compatible to old RC-10 remote control),
SWC option (Steering Wheel Control)
Technical specifications
RADIO ANALOG / DIGITAL
Tuner Type: High-End Automotive Tuner Blaupunkt CODEM IV
World Tuner (switchable): EU, USA, South America, Thailand
Frequency bands: FM, AM, DAB, DAB+
Frequency band FM: 87.5 – 108 MHz
Frequency band MW: 531- 1602/ 530- 1710 kHz
Channels (frequency band) DAB/ DAB+: 5A- 13F (174,928- 239,200 MHz)
Station memory: 15x FM, 10x AM, 15x DAB
Station memory banks: FM1, FM2, FMT, AM, AMT, DAB1, DAB2, DAB3
Station memory levels deactivatable: FM2, FMT, AM, AMT, DAB2, DAB3
Station display (PS): Yes
Radiotext/ Radiotext Plus (RT/ RT+): Yes/ No
Display DLS/ ENSEMBLE/ SERVICE: Yes/ Yes/ Yes
Alternate frequency function (AF): Yes
Traffic Radio (TA) FM/ DAB: Yes/ Yes
Automatic time adjustment: Yes
Enhanced Other Networks (EON): Yes
Regional function (REG): Yes
Program type identifier (PTY)/ PTY Seek: Yes/No
Travelstore/ Number of Presets for Travelstore: Yes/ 5x FMT, 5x AMT
Band Scan/ Preset Scan: Yes/ No
Sensitivity (FM): Two levels (lo / dx)
Noise suppression (FM): Yes
Hi-Cut (FM): Yes (multi-level switchable)
DAB-DAB Service following: Yes
DAB-FM Service following: Yes
Service search: Yes
Ensemble/ Service selection: Yes/ Yes
Ensemble/ Service browsing: No/ Yes
Alphabetical Service list DAB: Yes
Frequency response FM (Hz) – 3 dB: 30 – 15.000
Frequency response DAB (Hz) +/- 3 dB: 20 – 20.000
MEDIAPLAYER
AUX-IN/ automatic detection/ activation: No
USB front: yes (type A, recessed jack)
USB rear: yes (type A, cable)
Memory card reader: No
Concealed front inputs: Yes (USB usable with flap closed)
Compatible file system of external storage devices: FAT16, FAT32, exFAT
Maximum storage size of external storage devices: > 128 GB
Maximum file/folder count of external storage devices: > 30.000
CD-/DVD-loader: No
Playback formats: MP2, MP3, WMA, APE, FLAC, AAC, MP4, WAV
Hi-Res Audio playback: No
Display options: ID3V2 (title, artist, album), folder, file, playtime
Folder & file browsing: Yes
iPod, iPhone control (iAP2, Lightning/ USB-C) Yes (USB front and rear)
Shuffle playback folder/ media: Yes/ Yes
Repeat Title/ Folder/ All: Yes/ Yes/ Yes
Introscan: Yes (4- 60 seconds adjustable)
BLUETOOTH®*
Phone call: Yes
Internal microphone: Yes
Connectivity ext. microphone: Yes
Answer/ reject call: Yes/ Yes
Access phonebook: Yes (max. 1000 numbers)
Audio streaming: Yes
Audio streaming ID3 track display: Yes (Title, Artist, Album, Playtime)
Voice assistant access (e.g. Siri, Google, Alexa): Yes
Cell phone navigation audio mix: No
Auto wake-up on call: Yes (when radio off + ignition on), deactivatable
Fast pairing without PIN: Yes
Automatic reconnection: Yes, last 5 devices
Bluetooth version: 5.0, compatible with V4.2 and V2.1 +EDR
Number of paired devices: last 5
No. of devices connected at the same time: 1
Supported profiles: A2DP, AVRCP, HFP, SPP
Audio Codecs: AAC, SBC
*Availability/ support of functions depend on the phone/ app used!
SOUND
Equalizer Number of bands/ design/ Q-filter: No
Bass/ treble adjustment: Yes / yes (+/- 7 steps)
Source specific bass/ treble adjustment: Yes
Balance/ fader: Yes / yes (+/- 7 steps)
HPF/ LPF: No
Loudness: Yes
Sound Presets: Yes (Rock, Pop, Classic)
Speaker Outputs (Channels): 4
Preamp Outputs (Channels, Voltage): 4 (RCA, < 2V)
Sub-Out: 2 (RCA, gain/ frequency variable)
Max. Power: 4 x 50 watts
Sine power at 14.4 V: 4 x 24 watts (according to DIN 45324)
GENERAL
Display: LCD, negative, anti-reflective, wide angle, alphanumeric/ symbols
Scrolling text: Yes (once, repeatedly)
Illumination color display: 4,096 colors
Illumination color keys: Amber, Modelled on original light bulb lighting
Day/ Night mode: Yes (manual/ via dimmer connection)
Nightdesign if powerd off: Yes (buttons)
Brightness: Multi-level, variable
Time display: Yes
HMI languages: English, German
1 hour off timer if ACC off: Yes, deactivatable
Low standby current: Yes (< 3,5 mA )
Antenna inputs: FM DIN/ ISO (Adaptor), DAB SMB (with 12 V phantom power)
Telephone mute: Yes
Ext. handsfree microphone connector: Yes, 2,5mm
Remote control: Yes (IR input for card remote and old RC-10 remote control)
Steering wheel remote control (SWC): Yes (analog, programmable, pre-programmed)
Variable scan time: Yes (4, 8, 12, 60s)
Confirmation beep: Yes (deactivatable)
Control panel type: Fixed panel
Color panel/ decor ring: Black/ Black
Software Update: via USB
Permanent Memory: Yes (Settings & Presets)
Demo mode: Yes
Weight: approx. 0.65 kg
Dimensions: 50mm x 178mm x 116mm (H x W x D, housing only), 58mm x 187mm x 11mm (H x B x T , front w/o keys)
Operating voltage/ power consumption: 10.5 – 14.4 V/ < 10A in operation, 10 sec. after ACC power off: < 3.5 mA
SCOPE OF DELIVERY:
User manual: Yes (DE, EN, DA, NL, FR, ES, PT, IT, PL, CS)
External BT microphone: Yes
Unlocking tool: Yes
Connectors (ISO A, B): Yes
Antenna adaptor (DIN/ ISO): Yes
DAB antenna: Optional accessories (e.g. 2 006 021 000 000)
IR remote control: Optional accessories (1 101 402 001 001)
