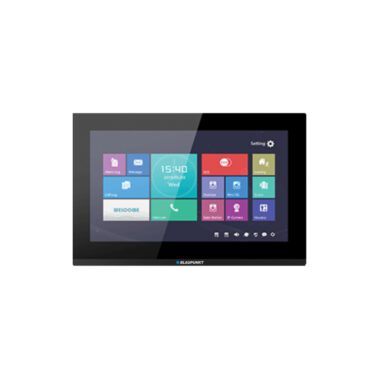

7-inch indoor monitor BP-VDP-IS724-B

FUNCTION REVIEW

Based on TCP/IP transmission protocol, this product is the video door phone system, it supports video phone intercom, defense area setting and picture pushing. Details of the device are as follows:

  • 7” capacitive touch screen
  • Support 24V non-standard PoE switch (power with 1,2 / 3,6 or 4,5 / 7,8)
  • Support connection to doorbell and mini outdoor station
  • Support extendable elevator-reserve service, support elevator reservation from residents and visitors.
  • Support real time surveillance to outdoor/gate/villa station, IP camera
  • Support receiving message from management center
  • Support multi – indoor monitor in one apartment, synchronizing arm/disarm
  • Support video chat between residents and visitors/guard unit
  • Support voice intercom between residents in the same community and other indoor monitors in the same flat
  • Support the standard 7 areas or 8 IO defense areas.
Buy now!

Specifications

Technical specification
Model: BP-VDP-IS724-B
Parameters
Working Voltage DC 24V
Device Quiescent Current ≤ 80 mA
Device Working Current ≤ 200 mA
Screen size 7-inch
Resolution 800 × 480
Appearance Dimension 182 × 119 × 15mm
Environment -10℃ ~ +55℃
Call Waiting 30s
Call Duration 120s
Surveillance Duration 30s
