CARLA 200
Successor to our popular 16″ CARLA 190.
Intelligent clamping mechanism!
Equipped with an intelligent clamping mechanism, the Blaupunkt Carla 190 can be easily folded and thus reduced in size by half. In just 4 steps, the folding e-bike becomes a handy and easy-to-stow “package”. The low weight of approx. 15 kg also makes it easy and comfortable to take with you on the bus and train.

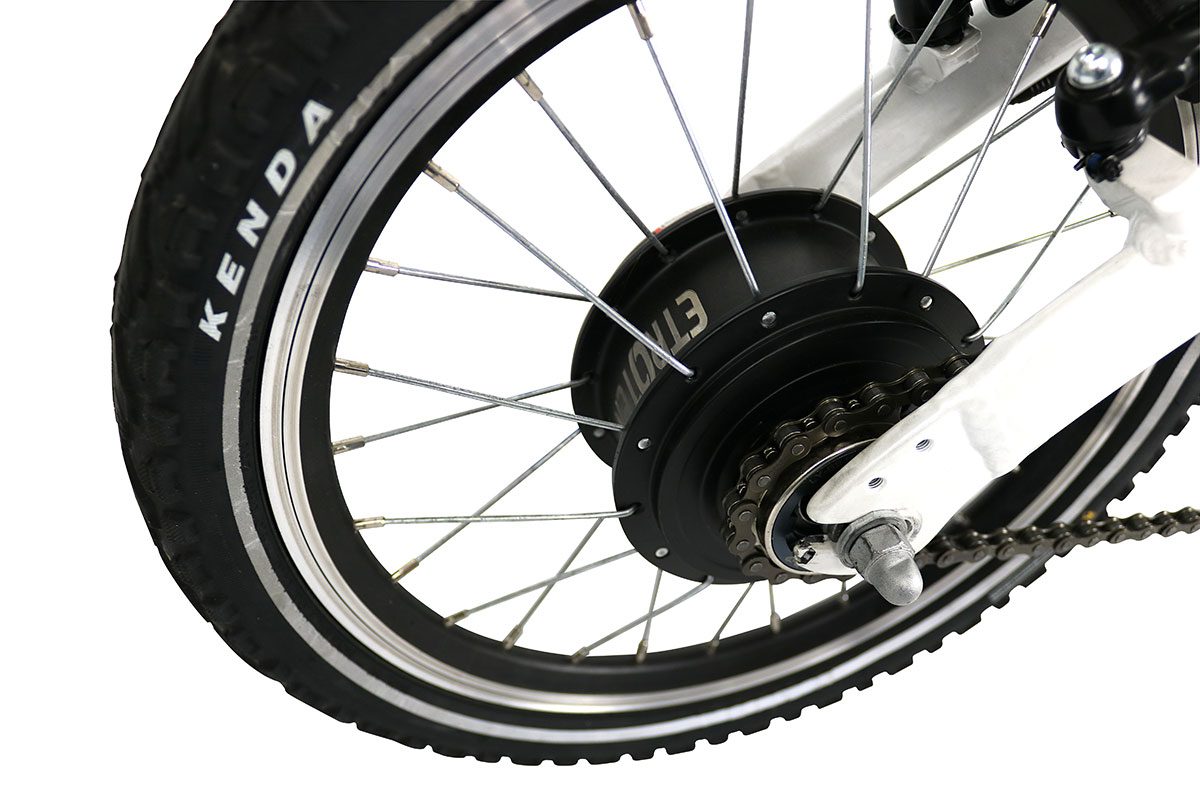

Strong engine!
The strong 36-volt rear wheel hub motor with 50 Nm provides the perfect support, which together with the integrated and powerful lithium-ion battery forms a perfect team. The motor is durable and maintenance-free and to protect the battery, the integrated BMS (Battery Management System) always ensures an optimal energy supply.

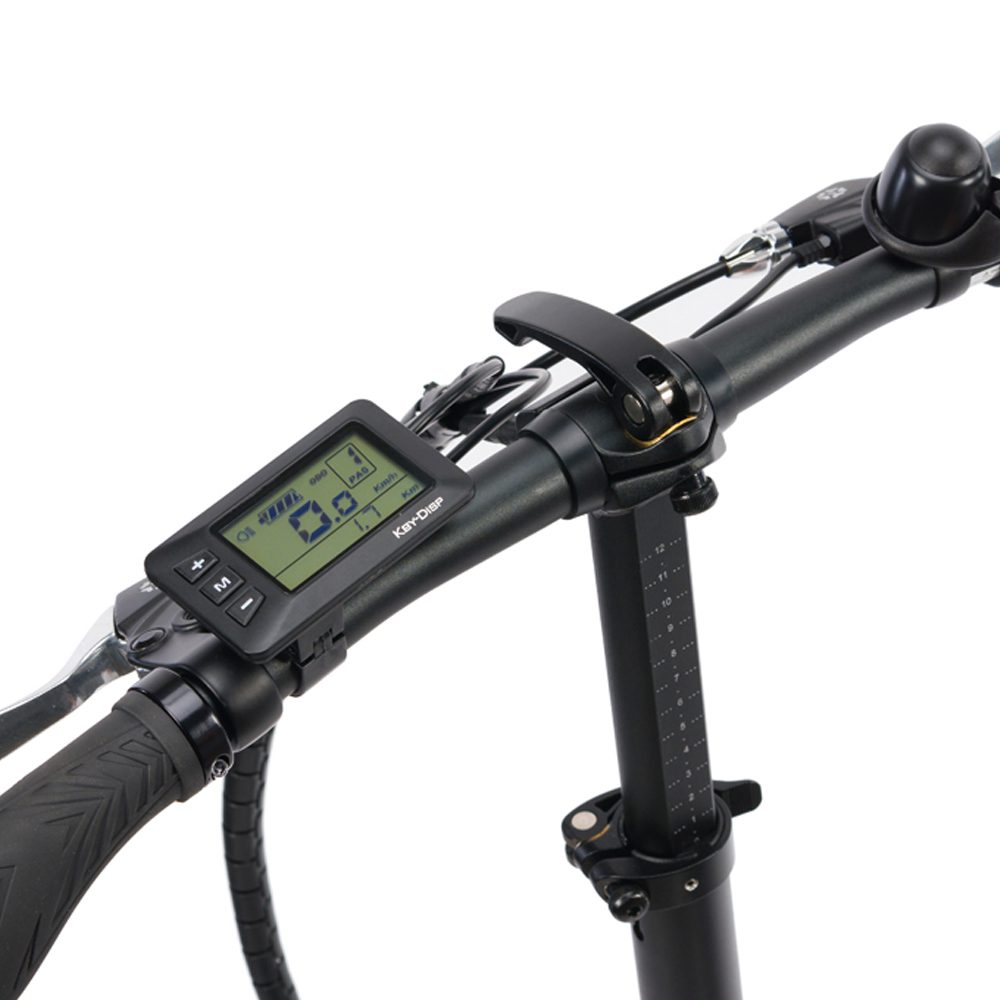

LCD bike computer!
The 5 levels of the motor are controlled via the easy-to-read LCD computer. It also provides important information such as the current battery life, information about the route, speed and much more. The motor power can also be completely deactivated or used as a pushing support.

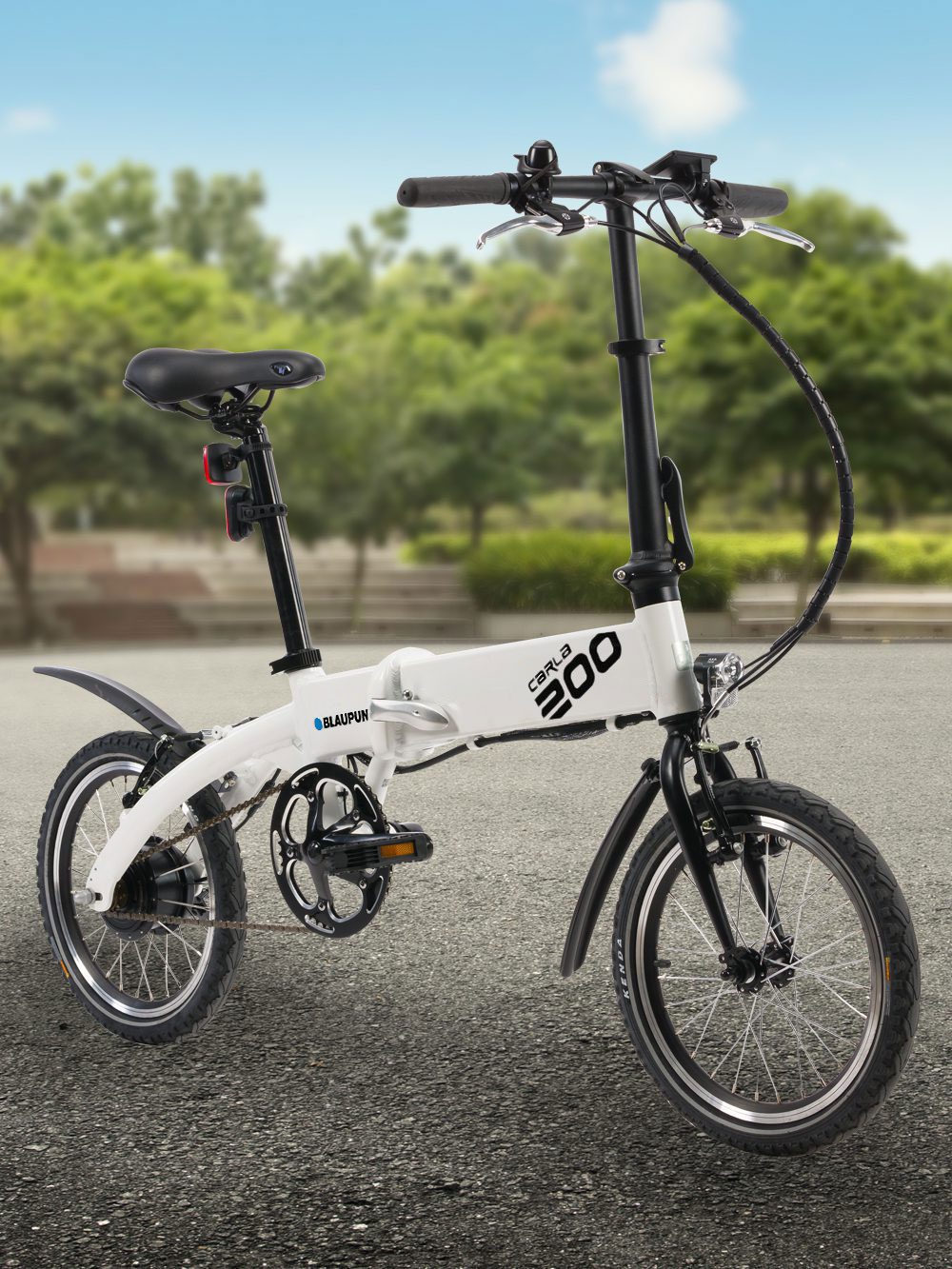

Folding eBike Carla 200
is probably the lightest e-bike in its class.
approx. 15.5 kg weight (incl. battery)
up to 60 km* range
*The range depends on the load, driving style and area of use.
Specifications
Highlights
• Singlespeed lightweight compact-bike
• Successor of the popular 16” CARLA 190 folding e-bike
• Rear hub motor with new, optimized controller
• Battery removable/ lockable
• Stable, foldable aluminum frame
• Easily stowed thanks to intelligent quickfolding mechanism including foldable pedals & handlebar
• Powerful Li-Ion battery with 36V/ 7,8Ah for up to 60 km/ 37 miles* with short charging time
• LCD computer with 5-step PAS up to 25 km/h
• Push assistance/ start assistance
• Tektro V-Brakes
• Approx. 15 kg weight including battery
• Meets the requirements of the german StVZO
• Arctic white Blaupunkt design
• Designed in Germany, Made in EU
*The range depends on the load, driving style and area of use.
Technical specifications
MECHANIC
Frame: Alloy
Rims: Double- walled aluminum rims, black
Tires: 16“x 1,75, black
Shift lever: None, 1 gear
Chain: KMC
Brakes (front/ rear): Tektro V-brakes, 100mm, Alloy
Headset: Semi integrated
Max. payload: 110 kg
DRIVE
Engine: Etrotek ETM-HUB10A-FA 16“rear hub motor, DC 36 V/ 250 W, 50 Nm, brushless, maintenance free, IP65
Battery/ controller: 36 V/ 7,8 Ah Lithium- Ion battery w. integrated BMS
Sensors: Cadence- & speed sensor
Driving modes: 5 level PAS, PAS off
Push/ start assistance: Yes
Bike computer: KD21C LC-Display, 3 buttons, backlight, IP65.
Functions: SPEED, ODO, TRIP, AVG/ MAX SPEED, TRIP TIME, PAS LEVEL (0- 5),
Battery (6 increments), Power output, Push Assistance, Auto Power Off, Error code info
Charger: Worldwide useable switching power supply (AC 100 – 240 Volt), 42 V, 2 A
Charging time: about 4- 6 h
Range: Up to 60 km (1) / 37 miles (1)
Max. speed (PAS): max. 25 km/h
Brake cut- off sensors: Yes
LIGHTING
Lamps/ reflectors: LED- headlight with integrated reflector, EPAC powered, Battery LED- taillight, Z-Reflector for seat post, Pedals w. integrated reflectors, Tires with circumferential reflector stripes
Brake light: No
FURTHER CONFIGURATION
Mudguards: Optional, upon request
Kickstand: Yes, left sided at rear axle
Pedals: Plastic, foldable
Battery removable: Yes
Battery lockable: Yes
Charging if installed/ removed: Yes / Yes
Battery indicator: Yes, integrated in computer
Additional battery: Optional (7,8 Ah)
Chain protection: Yes, mounted on chainwheel
Luggage carrier: No
Saddle: black
Grips: black
Bell: Yes
Sprung seat post: No
Suspension fork: No
Bottle cage: No
Carry bag: Optional, upon request
Handlebar bag: Optional, upon request
SIZE / WEIGHT
Size (unfolded): About 1393 x 580 x 1020 mm (L x B x H)
Size (folded): About 830 x 460 x 605 mm (L x B x H)
Wheel size: 16“x 1,75
Handlebar height: 870- 1000 mm
Handlebar width: 580 mm
Seat height: 480 mm (ground till quick release lever)
Saddle height: 630- 890 mm
Seat post: Ø 31,8 mm
Wheelbase: 1010 mm
Chassis clearance: 250 mm (bb- axle)/ 170 mm ground till chainwheel)
Framesize: 260 mm
Weight incl. battery: about 15 kg
Battery weight: about 2 kg
Color: Arctic- white
Scope of Delivery: Foldable E-Bike, charger, battery tail light, red rear reflector (Z), Velcro fastener,
battery with keys, User manual (multilingual)
Replacement Battery: 7,8 Ah/ 36V upon request
Certifications: StVZO conformity, EMC directive 2014/20/EU, Low voltage directive 2014/35/EU,
Machinery directive 2006/42/EC, RoHS, 2011/65/EU,
EPAC DIN EN 15194:2017, bike standard DIN EN ISO 4210-1 to -9:2014/2015, UN38,3
LOGISTICAL DATA (2)
Box dimensions: about 870 x 450 x 790 mm (L x W x H)
Box weight: about 4 kg carton, 0,1 kg foam, 0,01 kg PVC (foil, cable ties…)
Weight total: about 21 kg
Customs tariff number: 87116010
(1) The range depends on the load, driving style and area of use
(2) Subject to modification
