10858

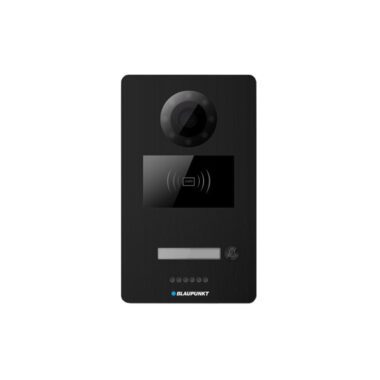

Mini outdoor station BP-VDP-OS124-B
OVERVIEW
The product is the mini outdoor station. By using standard CAT5 cables, it makes visual intercom call to indoor monitor and guard station possible. Besides, it supports IC access control.
FEATURES
- Support IC card
- Support calling to indoor monitor and guard unit
- Adjustable unlock time
- Door status detection, and unlock state timeout alarm
- Support normal open/close unlock output
- Support online update
Specifications
Technical specification
| Model: BP-VDP-OS124-B | |
| Working Parameter | |
| Working Voltage | DC 24V |
| Working Current | ≤130mA |
| Static Current | ≤ 60 |
| Working Temperature | -20℃ ~ 55℃ |
| Storage Temperature | -40℃ ~ 70℃ |
| Dimension (H/W/D) | 120 × 194 × 44.7mm |
| Camera | |
| Type | CMOS |
| Pixel | 0.3 Mega |
| View Angle | Diagonal 95° |
| Min. Illumination | 0 lux |
| Focal Length | 2.2mm |
| Fill-in Light Type | White |
| Adjustable Angle | Up/down/left/right 12⁰ |
