Safe Drive SDC 2.0

With the Blaupunkt Safe Drive SDC 2.0 you get a universal remote control for your Blaupunkt car radio.

Store locator

With the Blaupunkt Safe Drive SDC 2.0 you get a universal remote controller for your Blaupunkt car radio.

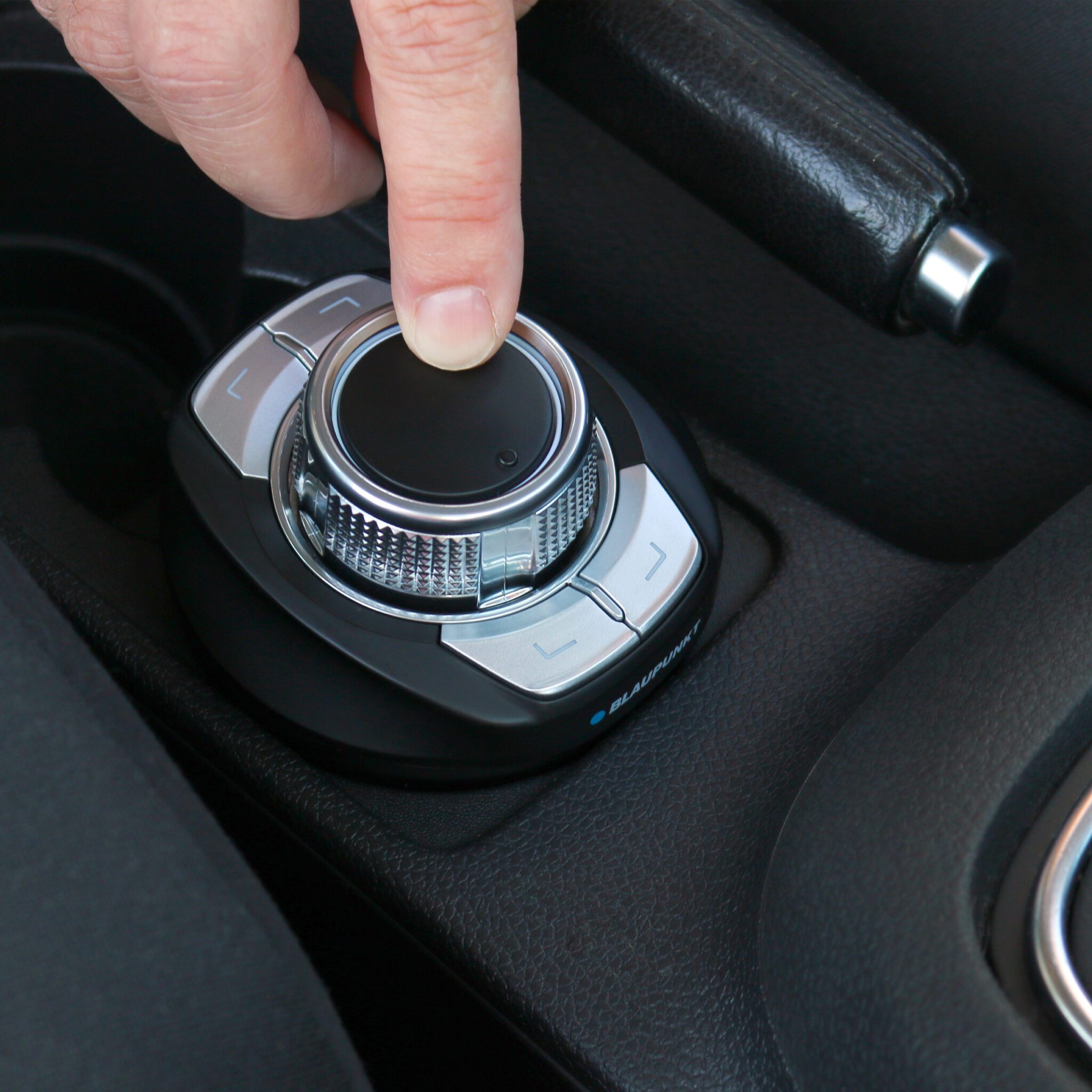

In the high-grade, black matte design with silver buttons and chrome-plated knob, the controller unobtrusively integrates in your vehicle and lets you operate your radio without having to look away from the road. The controller can retained for storage or use in the mounting plate. For mobile use, it can be removed with a small turn and use thanks to the integrated battery anytime, anywhere.

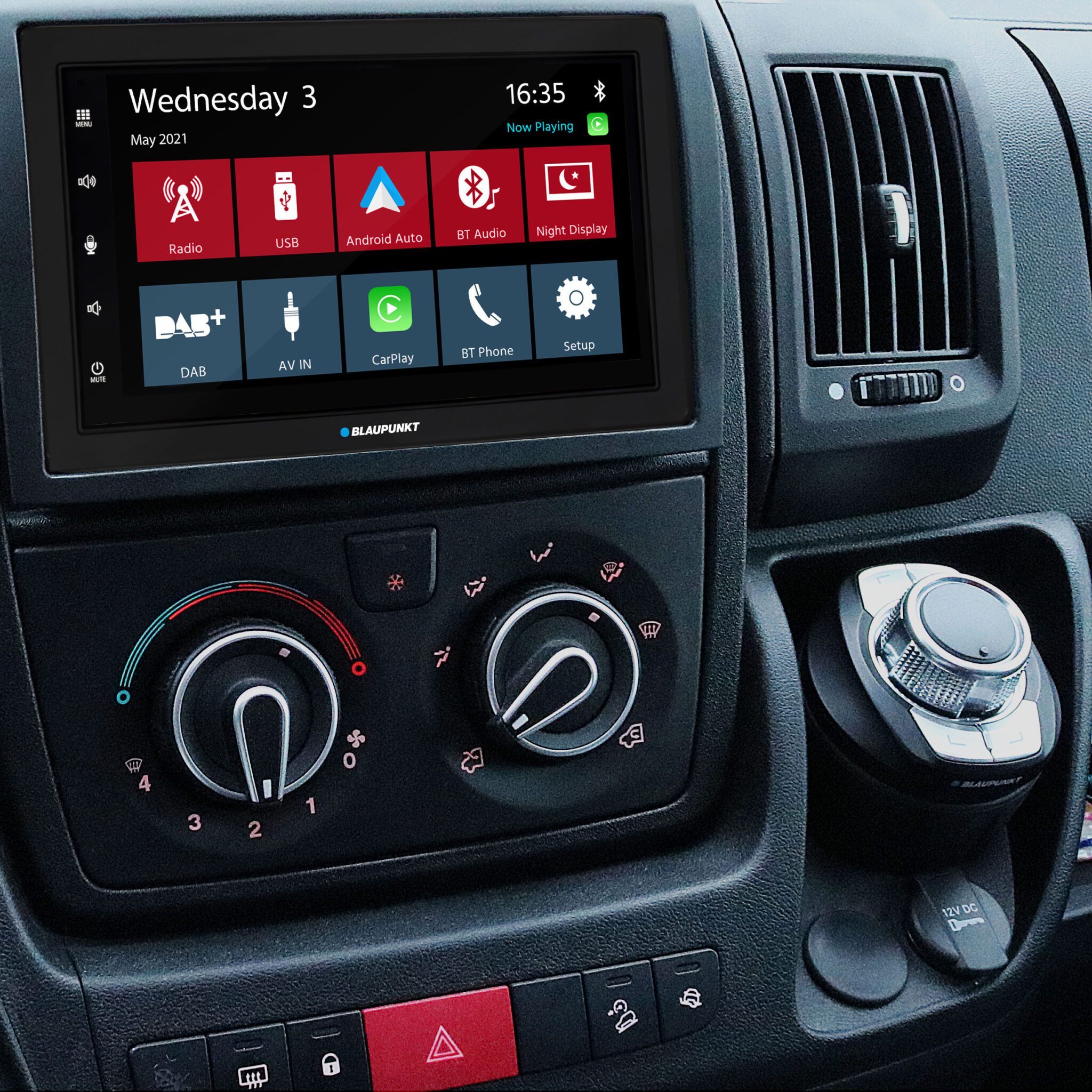

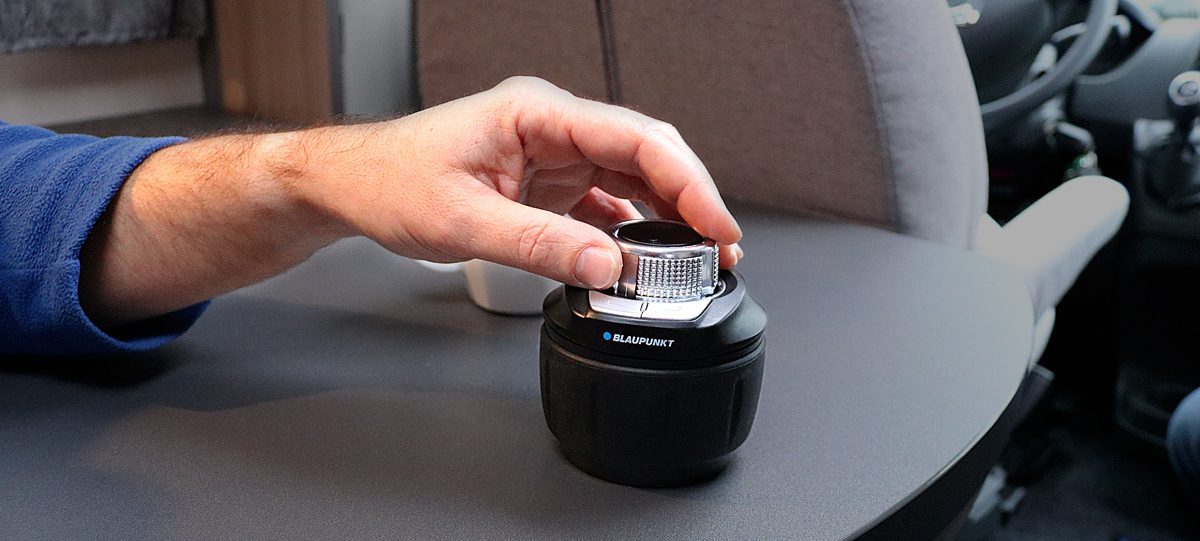

Whether you mount the remote controller on the console in your car or motorhome, store it in the glove compartment, place it next to your rest area in the motorhome or have it in front of your motorhome on the table beside you, there are almost no limits.

You can program the key functions simply via the SWC setup of your Blaupunkt car radio. The controller itself does not require any setup.

controller

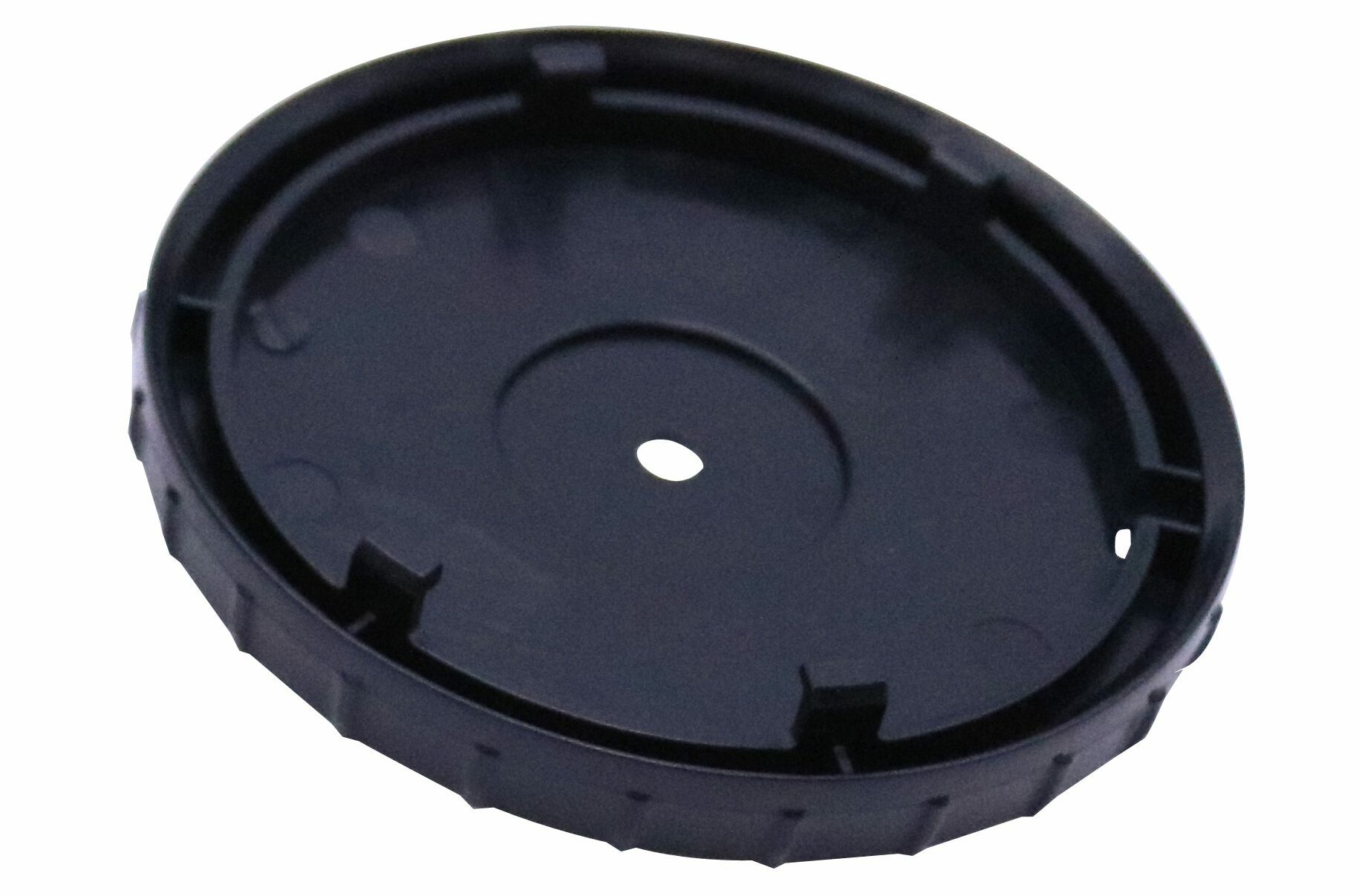

mounting plate

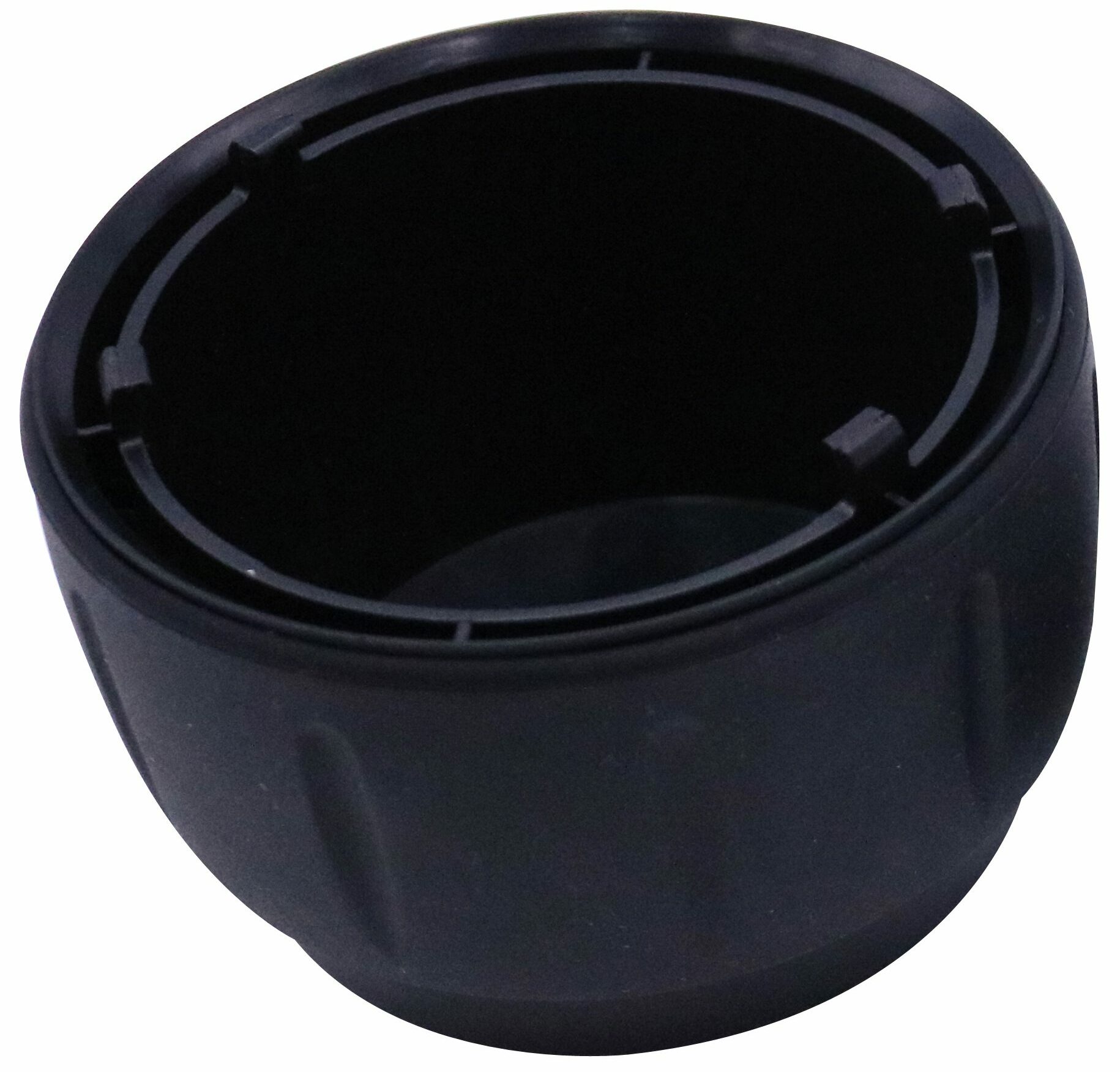

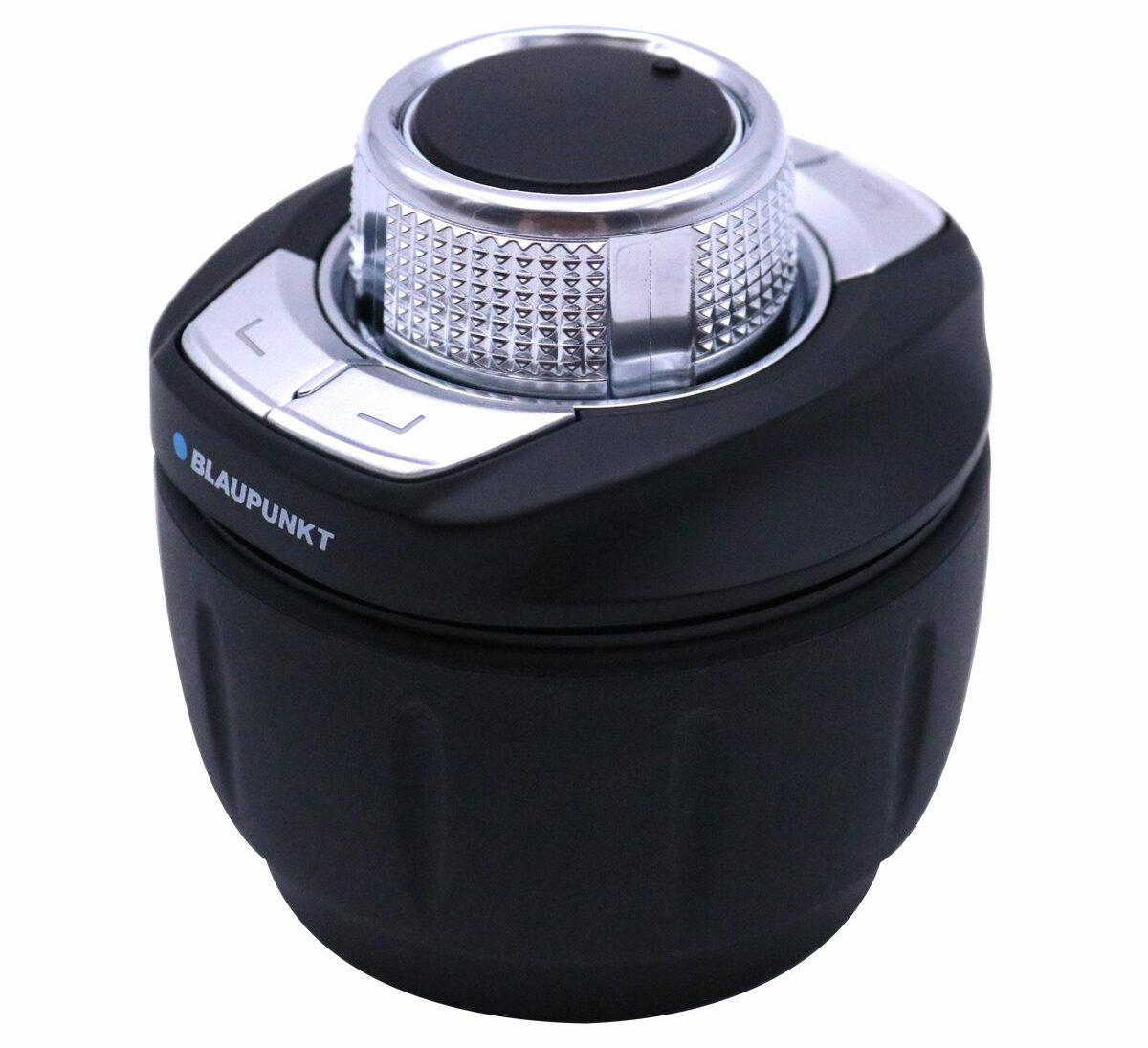

cup holder adapter

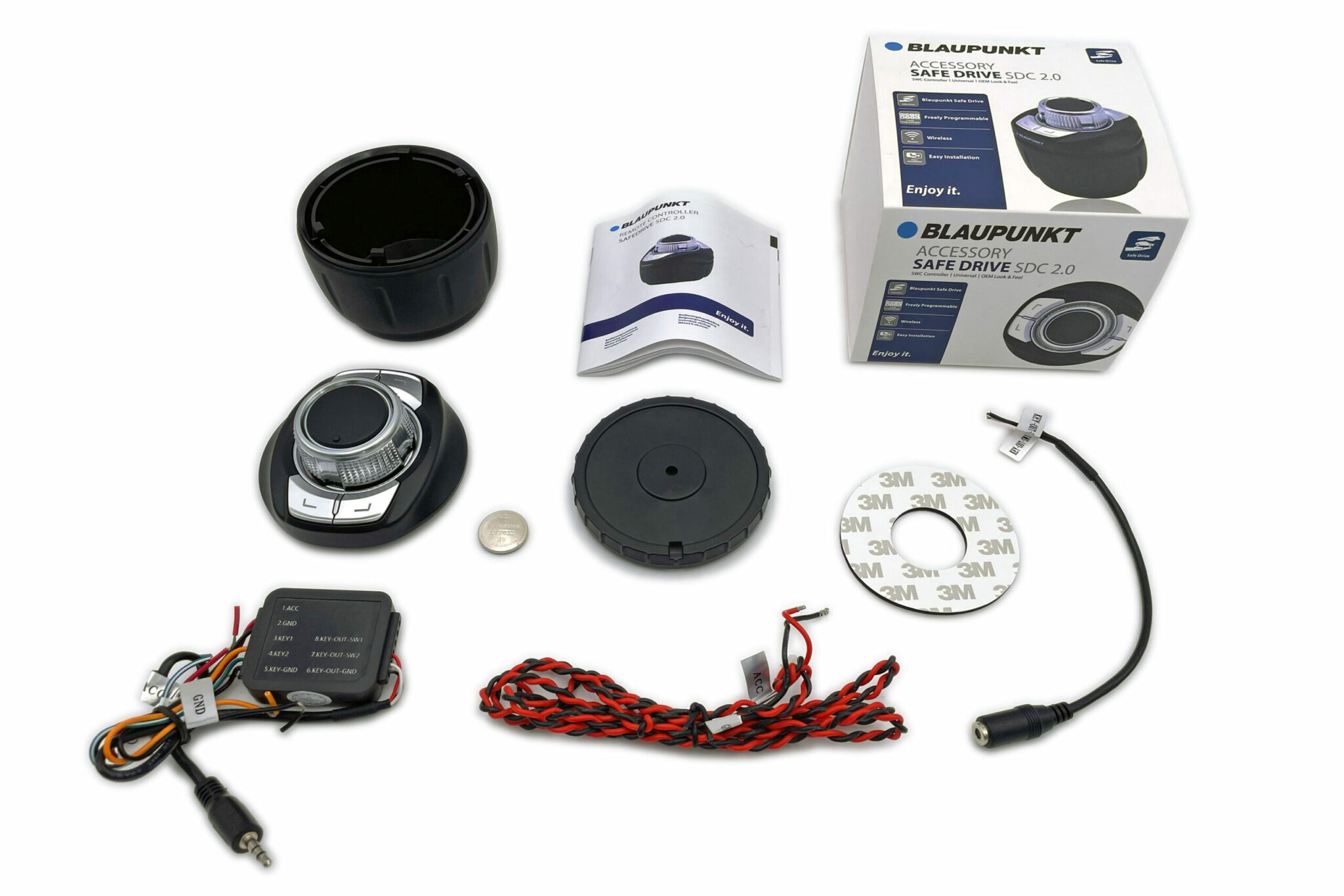

scope of delivery

Specifications

Highlights
  • High grade, ergonomic design
  • OEM look & feel
  • For compatible Blaupunkt car radios with SWC input
  • Intuitive operation by own assignment of the keys
  • Universally configurable
  • Ultra lightweight design
  • Battery and 12V electrical system operation, mobile use (if battery installed)
  • Installation without drilling wholes, variable mounting options
  • Easy installation and connection
Technical specifications

Functions
Buttons: 4 keys, freely programmable via car radio device
Knob: two direction rotary encoder with middle button, freely programmable via car radio device
Illumination: no

Mounting
Plate with 3M adhesive pad for non-destructive assembly or mounting holes for fixation in the desired position Beverage cup holder for use in a cup holder

Technical data
Battery/ vehicle power: Yes (CR 2032)/ Yes (12 Volts)
Interface connectors: 12 Volts + SWC (3,5 mm + flying leads)
Remote control connectors: Wireless radio transmitter, power supply via CR2032, optional power supply via vehicle battery (12 Volts)
Range: about 5- 10 m
Battery life span: Up to 12 months, depends on usage
Original OEM- remote control connection: Not supported
Dimensions controller: about 37mm x 85mm (H x Ø)
Dimensions cupholder: about 55mm x 85mm (H x Ø)
Dimensions mountingplate: about 10mm x 83mm (H x Ø)
Dimensions interface: about 50mm x 40mm x 13mm (L x B x H), cable each ca. 100 mm
Weight: about 120g

Compatibility list Blaupunkt car radios:

1-DIN: Models of the series 230, 270, 370, 420, 440, 470, Heavy Duty, SQR 46 and others
2-DIN: Models of the series 290, 370, 530, 570, 590, 600, 690, 790, 800, 835, 940, 945, 990 and others

Using the SAFE DRIVE 2.0 requires a compatible car radio. Most current Blaupunkt models as well as other brands with a compatible SWC input will work.
To program the functions, please refer to the instructions of the respective device. The possible functions depend on the car radio used.
