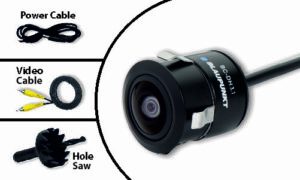

Blaupunkt Universal Rear Bumper Camera with AHD & SD Picture Quality BC


Bureau of Indian Standards (BIS) certified 170° Universal Rear Bumper Camera with SD Picture Quality & Moving Guidelines

Buy here

BC DH3.1 AHD (rear bumper camera) is equipped with high end 1/3″ CMOS color sensor and is Element Ready. It is designed to withstand extreme weather conditions. It consumes very little power due to the design and use of modern circuitry inside. Compatible with AHD and SD installs

A CMOS sensor is an electronic chip that converts photons to electrons for digital processing. BC DH3.1 AHD incorporates a highly efficient color sensor and modern electronics, reducing power consumption.


  • Power Supply: DC12V±3V
  • Current Consumption: 70mA
  • Optical Format: 1/3”
  • Video System: AHD / SD
  • Image Sensor: CMOS
  • Effective Pixels: 1280 x 720
  • Lense Angle: 170˚ (D), 110˚(H), 100˚(V)
  • White Balance: Auto
  • Water Resistant
  • Illumination Min.: 0.01 Lux
  • Operating Temperature: -20oC~+70oC
  • Humidity: up to 95%
  • Signal System: Default-AHD (PAL), CVBS (NTSC)
  • Video Signal: 1.0Vp-p at 75 ohm
  • Compatible with AHD and SD installs
