UNIVERSAL REAR VIEW CAMERA BC DH03

UNIVERSAL REAR VIEW CAMERA BC DH03

Bureau of Indian Standards (BIS) certified 170° Universal Rear View Number Plate Camera

Buy here

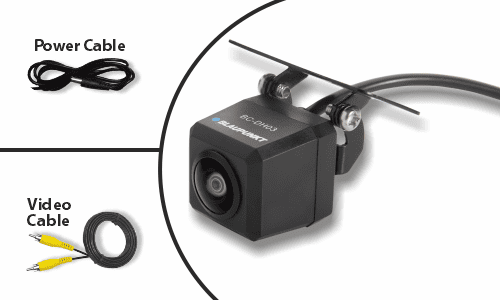

BC DH03 (rear number plate camera) is equipped with high end 1/3″ CMOS color sensor and is Element Ready. It is designed to withstand extreme weather conditions. It consumes very little power due to the design and use of modern circuitry inside.

C-MOS Sensor

A CMOS sensor is an electronic chip that converts photons to electrons for digital processing. The BC DH02 incorporates a highly efficient color sensor and modern electronics, reducing your power consumption.

Specifications

Highlights
  • Power Supply: DC12V±3V
  • Current Consumption: 50mA
  • Resolution: 720 TVL
  • Optical Format: 1/3″
  • Image Sensor: CMOS
  • Effective Pixels: 1080 x 720
  • Lens Angle: 170° wide angle
  • Electronic Shutter: 1/60 – 1/100000 sec
  • White Balance: Auto
  • Humidity: up to 95%
  • Water Resistant
  • Illumination Min.: 0.1 Lux
  • PAL / NTSC compatible
  • Operating Temperature: -20°C – +70°C
