FRONT & REVERSE CAMERA

AHDC 2.0

170° Ultra Wide Angle | 4-layer Glass | Suitable for AHD Display Supported Car Player | Support Front & Reverse Camera

Buy now
AHDC 2.0

Reverse Camera AHDC 1.0 is a reverse camera that helps the driver to keep focused and aware of the surroundings outside of the car to prevent accidents towards kids, pets, and small animals passing by the car. The reverse camera also clears out blind spots by displaying the image projected through the Diagonal 150° UltraWide Viewing Angle Camera with ease.

4 Glass
AHDC 1.0

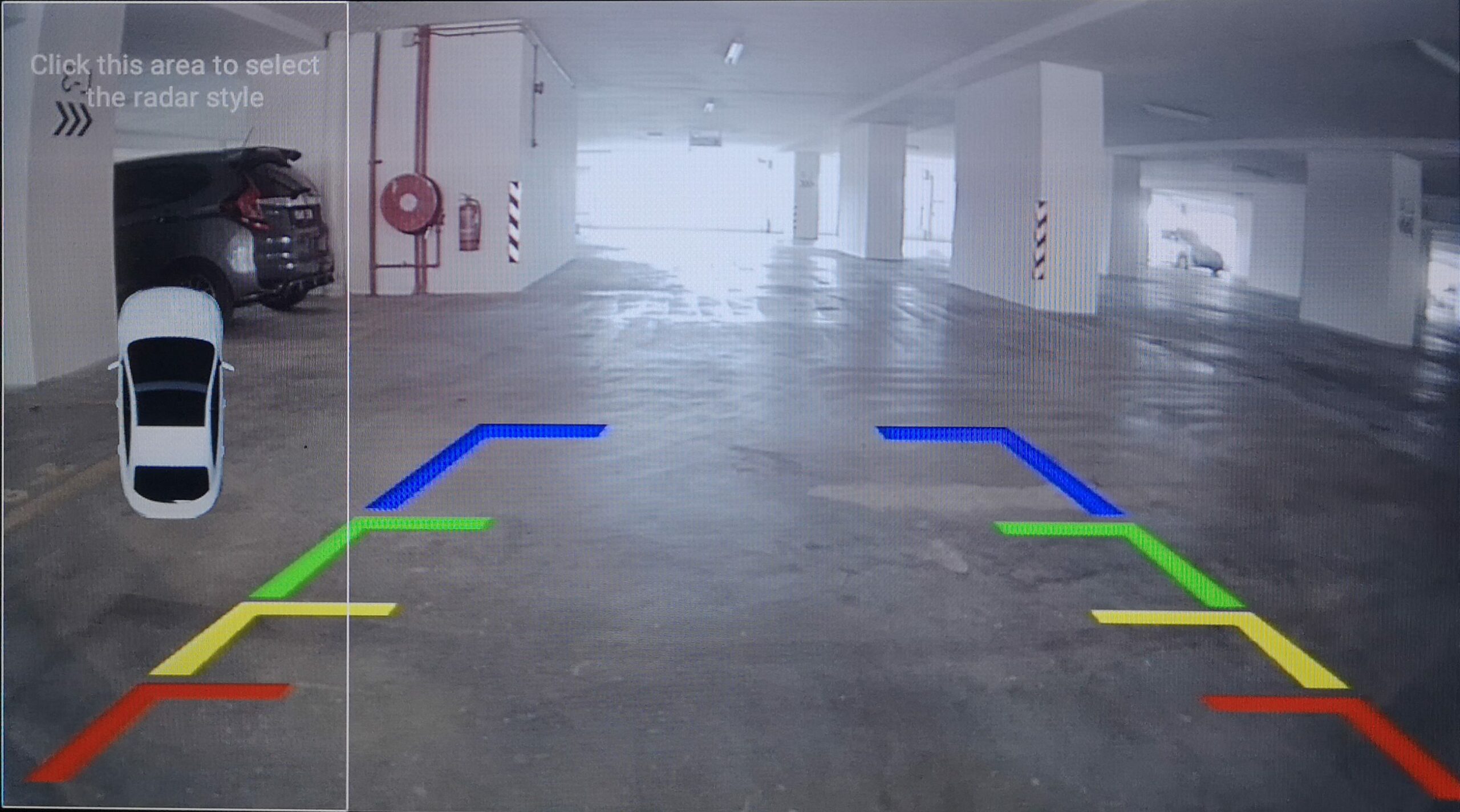

Day view of AHDC 1.0

AHDC 1.0

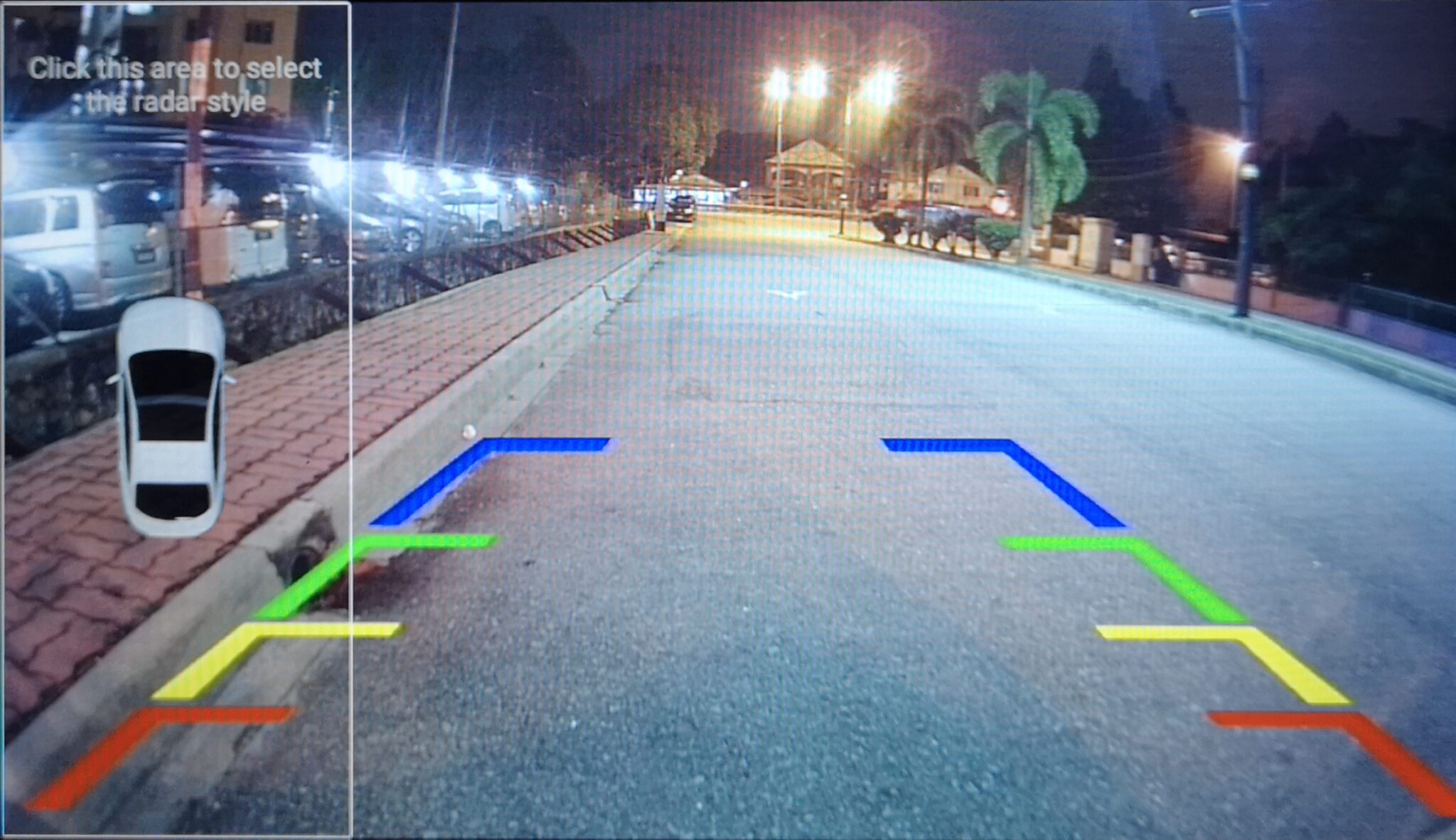

Night view of AHDC 1.0

Unboxing AHDC 2.0

Specifications

Specifications
  • Image Sensor : CMOS
  • TV System : PAL
  • Effective Pixel : 1280 (H) x 720 (V)
  • Image Resolution : 750TVL
  • Frame Frequency : 25fps
  • Scanning System : 525 lines, 60 fields/sec
  • Sync System : Internal
  • Signal Noise ratio : 48dB
  • Video Signal : 1.0Vp-p at 75ohm
  • Exposure Control : Automatic
  • Gain Control : Automatic
  • Scope of Electronic Shutter : 1/60~1/100000sec
  • White Balance : Auto (2500K~9500K)
  • Illumination Min. : 0.2 Lux/F
  • Character of Image : Mirror horizontal
  • Operating Voltage : DC12V (DC9-16V)
  • Operating Current : 160mA-180mA
  • Operating Temperature : -20~70°C
  • Storage Temperature : -30~75°C
  • Environment Temperature : 90% RH
  • Viewing Angle : 170° (D), 145° (H), 125° (V)
  • Water-resistant : IP68
  • Connector Type : RCA/4 PIN DIN
  • Lens : 4 Glasses
  • Support Front & Rear Camera

Downloads

User Manual
