ACTIVE SUBWOOFER

GTr 140 A


Max. Output Power 280W | 6.0” x 9.0” Speaker Size | Compact Design & Solid Audio Output

Find out more

Extra Power. Better Satisfaction

Blaupunkt Active Subwoofer GTr 140 A is designed to bring you the satisfaction of listening to music in your car. Just focus on your driving and let the active subwoofer do the playing. With a max outpower of 280W, you can definitely feel the difference in terms of bass and clarity.

Max Output Power

Blaupunkt Active Subwoofer GTr 140 A delivers a maximum outpower of 280 watts. This level of power is able to create an intensifying environment whenever you are listening to your favorite songs. Exciting as it sounds, Blaupunkt ensures your listening experience is satisfied.

Class AB Amplifier

GTr 140 A has a built-in class AB amplifier that produces an output of 120 watts of RMS power. The built-in amplifier contributes to your listening experiences as it helps to boost the low-level audio signal and create powerful and better sound from your speakers as well.

Class AB Amplifier

GTr 140 A has a built-in class AB amplifier that produces an output of 120 watts of RMS power. The built-in amplifier contributes to your listening experiences as it helps to boost the low-level audio signal and create powerful and better sound from your speakers as well.

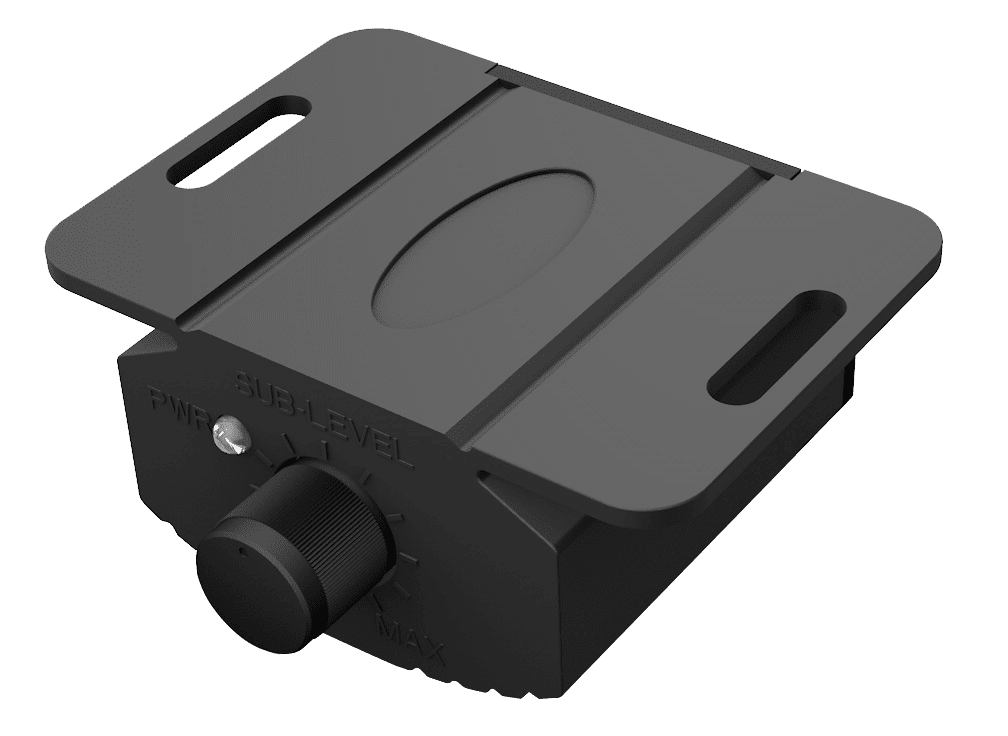

Remote Control

Adjust to the desired volume with the wired remote control provided with GTr 140 A. You can tune it to any volume you like, without worrying about the performance. Be it low or high volume, Blaupunkt Active Subwoofer GTr 140 A will make your boost the performance of your audio devices.

Easily Fitted

Not only it can deliver such impactful performance, but GTr 140 A is also able to be installed in different locations in the vehicle. One perfect spot is the car bonnet.

Easily Fitted

Not only it can deliver such impactful performance, but GTr 140 A is also able to be installed in different locations in the vehicle. One perfect spot is the car bonnet.

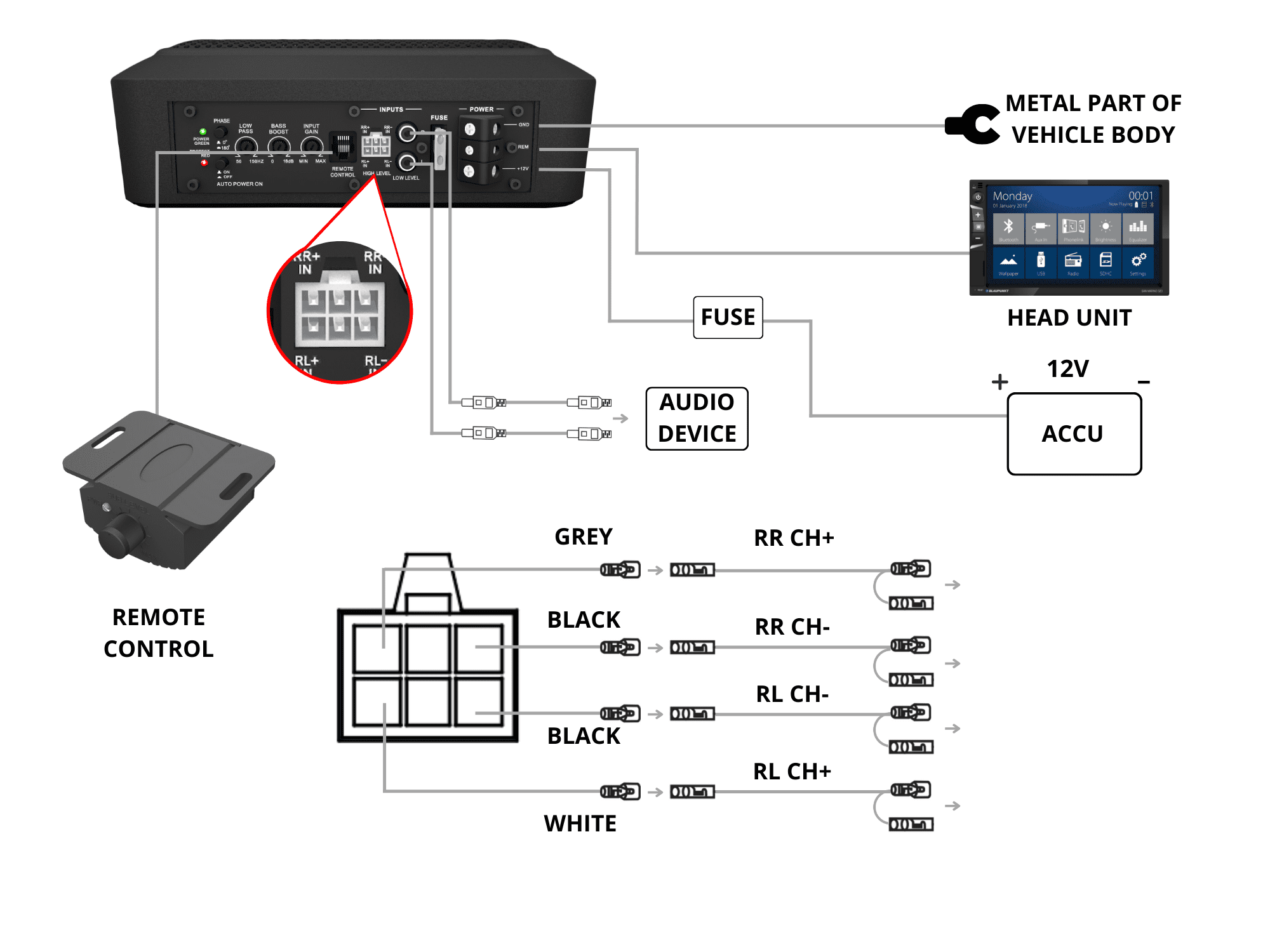

Wiring Diagram 1: High Level Input

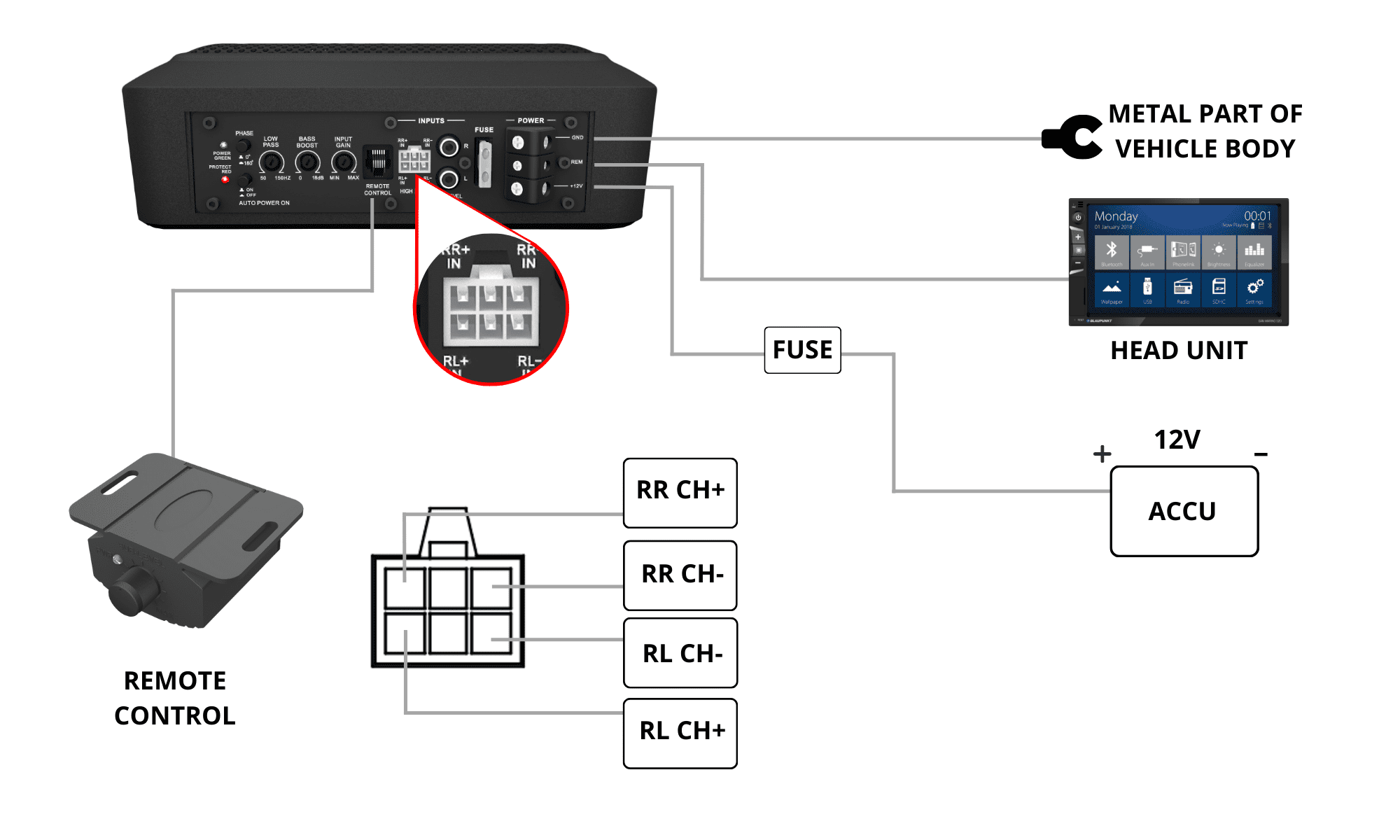

Wiring Diagram 2: Low Level Input

Specifications

Specifications

Amplifier

  • Amplifier Technology : Class AB
  • Normal Output Power (RMS) : 120W
  • Sensitivity (In Car/1W) : 92dB
  • Signal / Noise Ratio (dB) : 91dB
  • Impedance: 4Ω
  • Frequency Response : 20Hz–150Hz
  • Low Pass Filter (LPF) : 50Hz–150Hz
  • Voltage : 14.4 (10V–16V)
  • Phase Switch : 0°/180°
  • Automatic On/Off (Hi & Lo) : High Level Only
  • Audio in Sensitivity : Speaker Input (1.5V)/RCA Input (150mV)

Subwoofer

  • Max. Output Power : 280W
  • Speaker Size : 6.0″ X 9.0″
  • Cone Composition : Aluminium
  • Magnet Type : Ferrite
  • Wired Remoted : Included
  • Enclosure Housing Material : Aluminium Die-cast Sealed

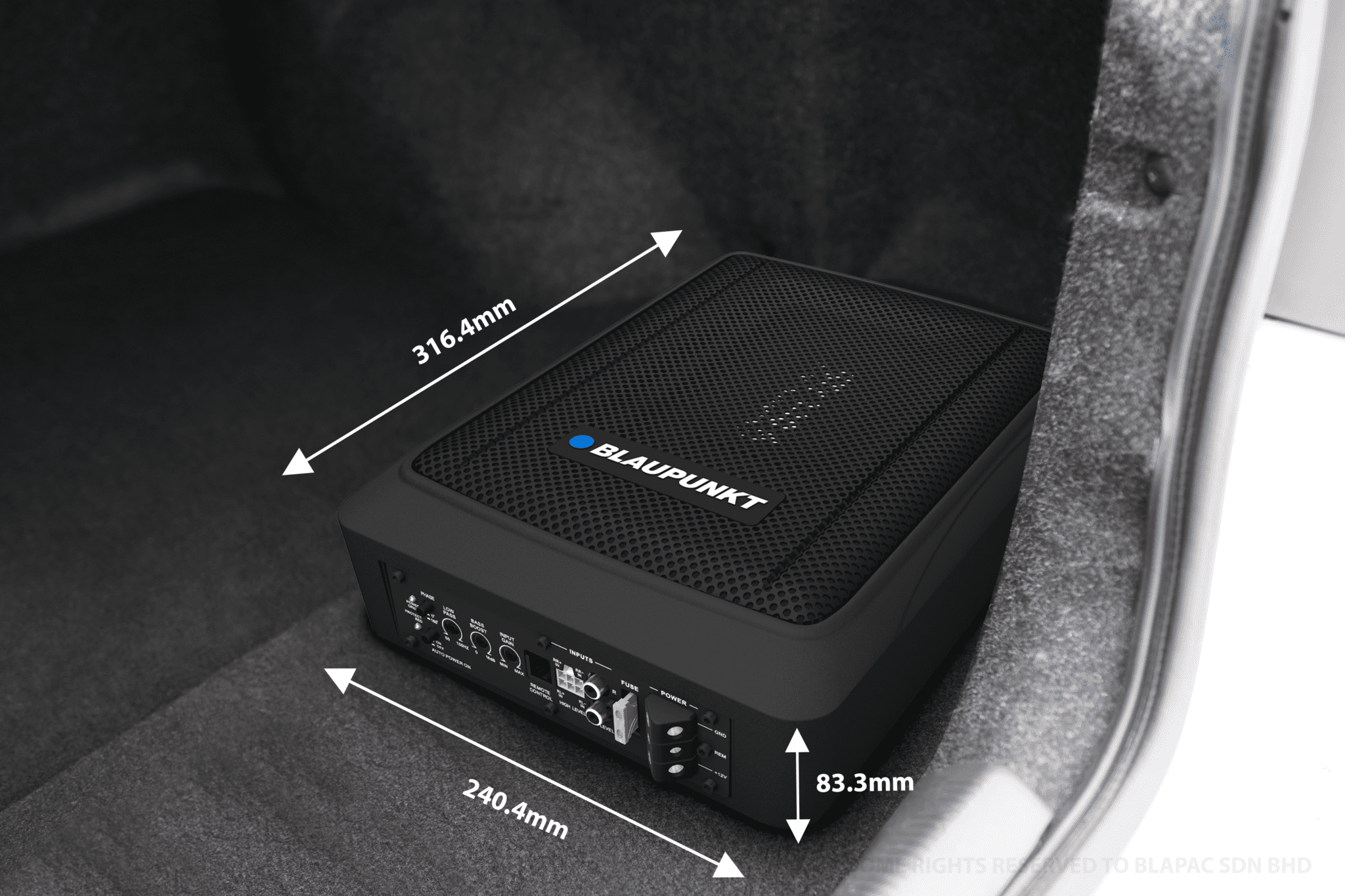

  • Enclosure Dimension (LxWxH) : 316.4 x 240.4 x 83.3mm
  • Enclosure Net Weight : 3.76kg
Accessories
  • Remote Controller : Wired Remote
  • 4x Screws (Parker-Type) : 4 x 20mm
  • 8x Screws (M-Type) : 4 x 8mm
  • 4x Mounting Bracket A : 45mm x 20mm
  • Wiring Harness (0.4m DC Cord, High Level Input Speaker, Low Level Input Speaker & Input Plug)
