Highlight
Perfect Sound System
Blaupunkt has perfectly designed the ultimate sound system for its end users with German technology. Active Subwoofer GTr 8100 A is the ideal audio device for every vehicle. Equipped with a wired remote, you can easily tune your desired volume.
Easily Fitted
Not only it can deliver such impactful performance, but GTr 8100 A is also able to be installed in different locations in the vehicle. One perfect spot is the car bonnet.
Aluminium Housing Material
The enclosure housing material of the GTr 8100 A is Aluminium Die-cast Sealed. When the GTR 8100 A is performing, this material plays an essential role in heat dissipation and boosts sound quality.
250W Max Power
Blaupunkt Active Subwoofer GTr 8100 A delivers a maximum outpower of 250 watts. This level of power is able to create an intensifying environment whenever you are listening to your favorite songs. Exciting as it sounds, Blaupunkt ensures your listening experience is satisfied.
65mm In Height
Not only it can deliver such impactful performance, but GTr 8100 A is suitable for low underseat vehicle. It is also able to be installed in different locations in the vehicle easily. One perfect spot is the car bonnet.
Wired Remote
Adjust to the desired volume with the wired remote control provided with GTr 8100 A. You can tune it to any volume you like, without worrying about the performance. Be it low or high volume, Blaupunkt Active Subwoofer GTr 8100 A will make your boost the performance of your audio devices.

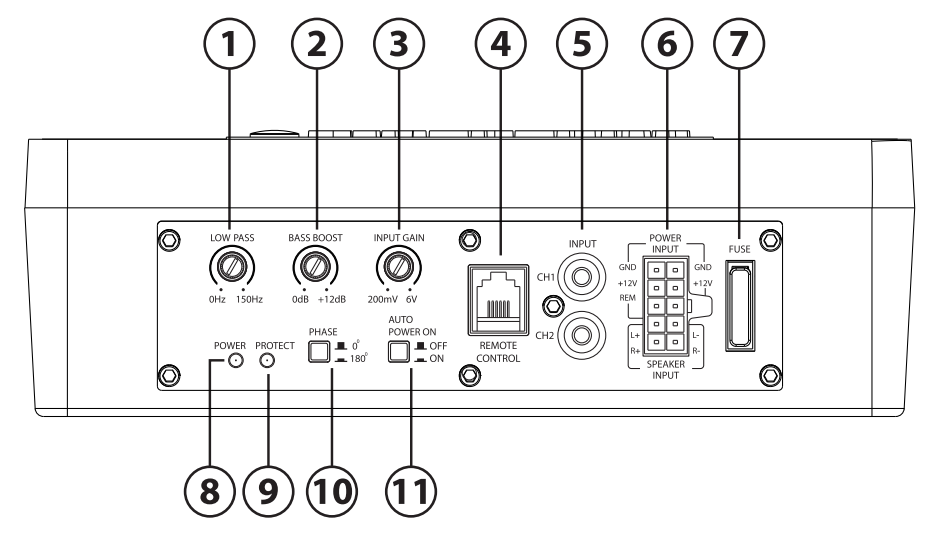

KEY FUNCTION
| 1.Low Pass (0Hz-150Hz)
2.Bass Boost (0-+12dB) 3.Gain Control (200mV-6V) 4.Remote Control Input 5.RCA Input (CH1/CH2) 6.Power/Speaker Input |
7. Fuse (15A)
8. Power LED Light 9.Protection LED Light 10.Phase (0°-180°) 11.Auto Power On (On/Off) |
SPECIFICATION
WIRING DIAGRAM

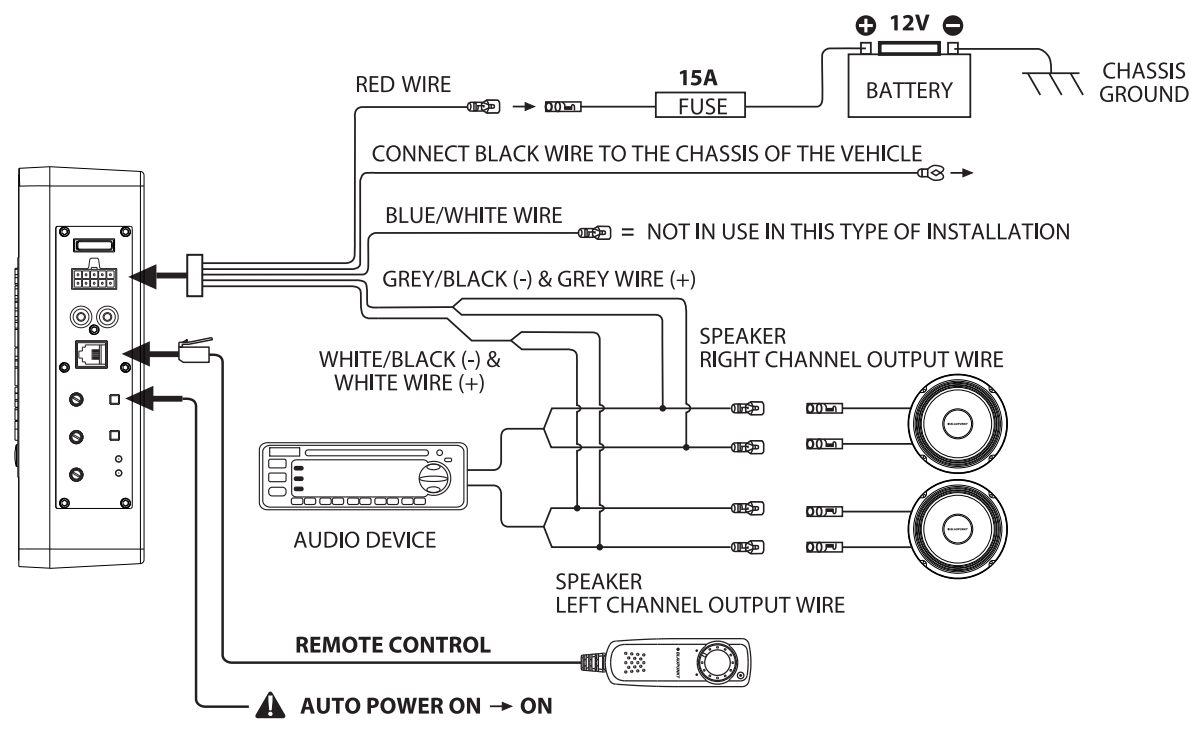

High Level Input – Speaker Input

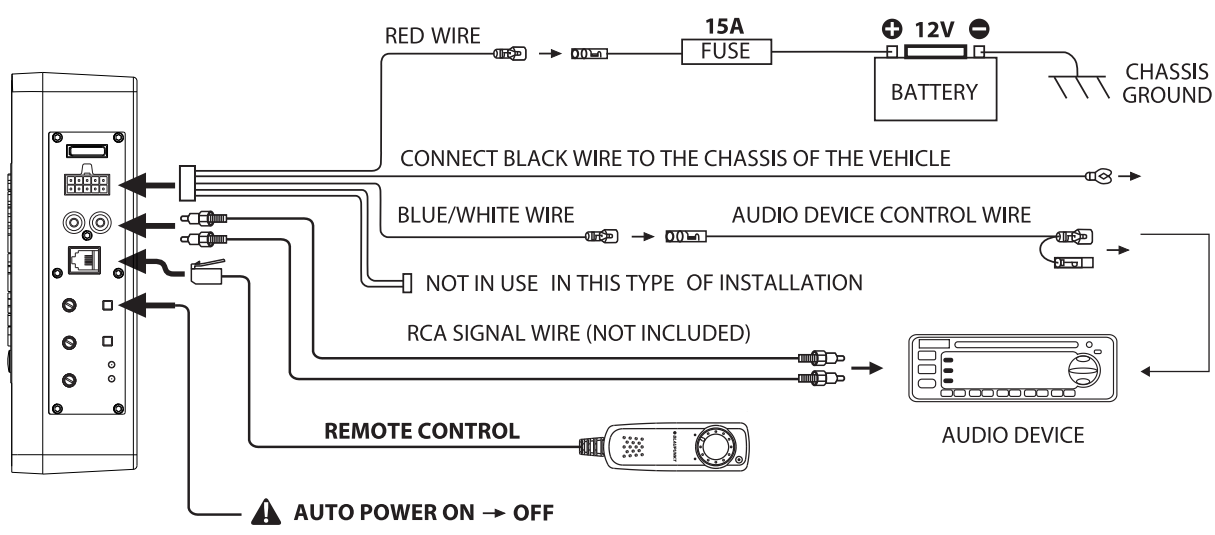

Low Level Input – RCA Input
Specifications
GTr 8100 A Specifications
Amplifier
- Amplifier Technology : AB
- Max. Output Power : 250W
- Normal Output Power (RMS) : 100W
- Sensitivity (In Car/1W) : 80dB
- Signal / Noise Ratio (dB) : 95dB
- Impedance : 4Ω
- Frequency Response : 35Hz–150Hz
- Low Pass Filter (LPF) : 50Hz–150Hz
- Voltage : 14.4 (10V–16V)
- Phase Switch : 0°/180°
- Automatic On/Off (Hi & Lo) : High Level DC Only
- Audio in Sensitivity : Speaker Input (1.5V)/RCA Input (150mV)
Subwoofer
- Speaker Size : 8.0”
- Cone Composition : Aluminium
- Magnet Type : Ferrite
- Enclosure Housing Material : Aluminium Die-cast Sealed

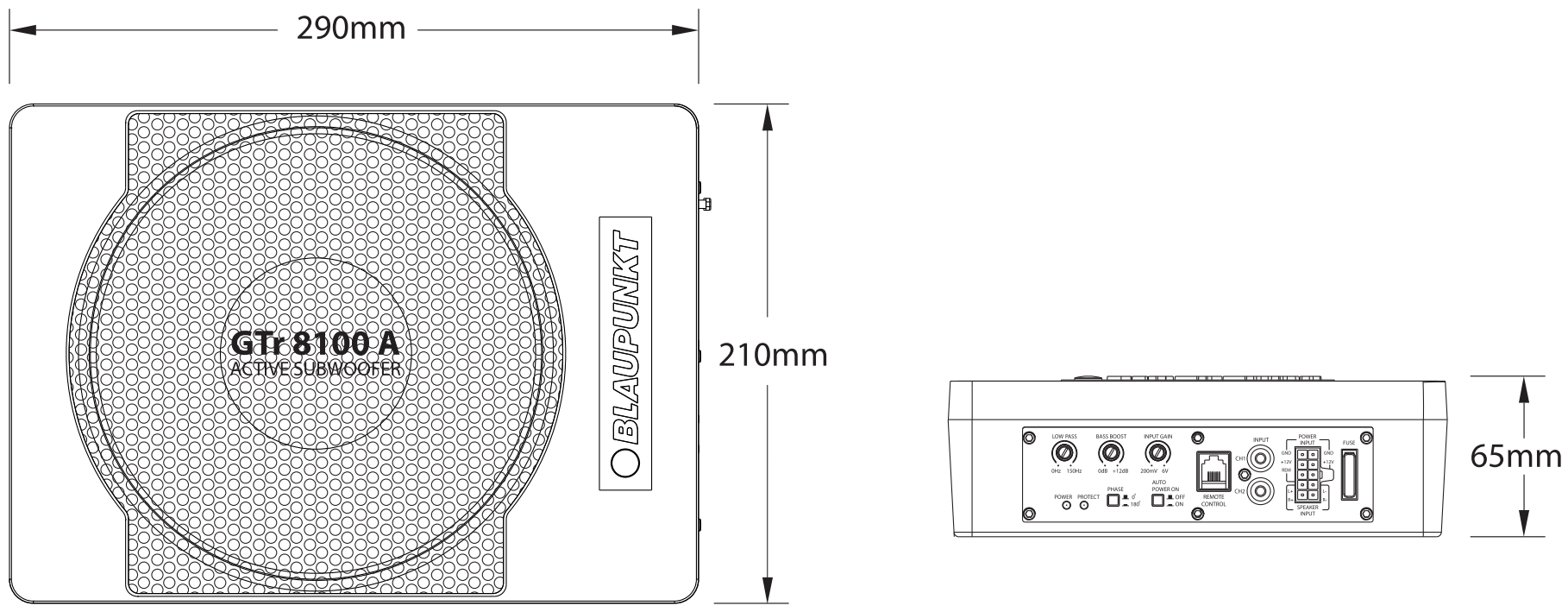

- Enclosure Dimension (LxWxH) : 290 x 210 x 65mm
- Enclosure Net Weight : 3.6kg

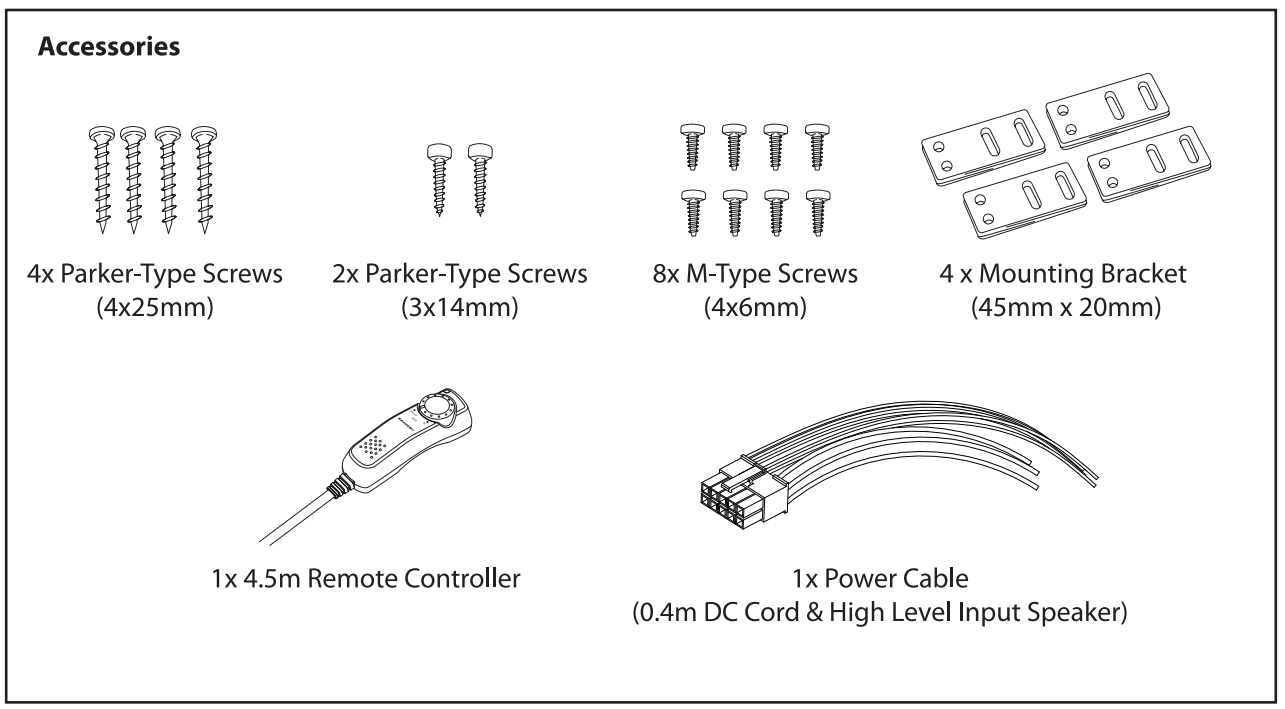

GTr 8100 A Accessories
- Remote Controller : 4.5m Wired Remote
- 4x Screws (Parker-Type) : 4x20mm
- 8x Screws (M-Type) : 4x8mm
- 4x Mounting Bracket A : 45mm x 20mm
- Wiring Harness (0.4m DC Cord, High Level Input Speaker, Low Level Input Speaker & Input Plug)
