Velocity Power Amplifier with DSP

MPD 610 A

6-CH High/2-CH Low Level Input | 8-CH Low Level RCA Output | 10-CH Speaker Output

Find Out More

Amplify Your Surrounding

Listening to your favorite songs through your vehicle’s speakers is very dull especially when it is affected by the road noise. To overcome it, Blaupunkt MPD 610 A is designed to strengthen weak audio signals, and improve the music’s clarity and quality. Apart from that, MPD 610 A is capable of producing a Maximum Output Power of 880W. MPD 610 A Amplifier is meant to create a whole new experience in your listening experience.

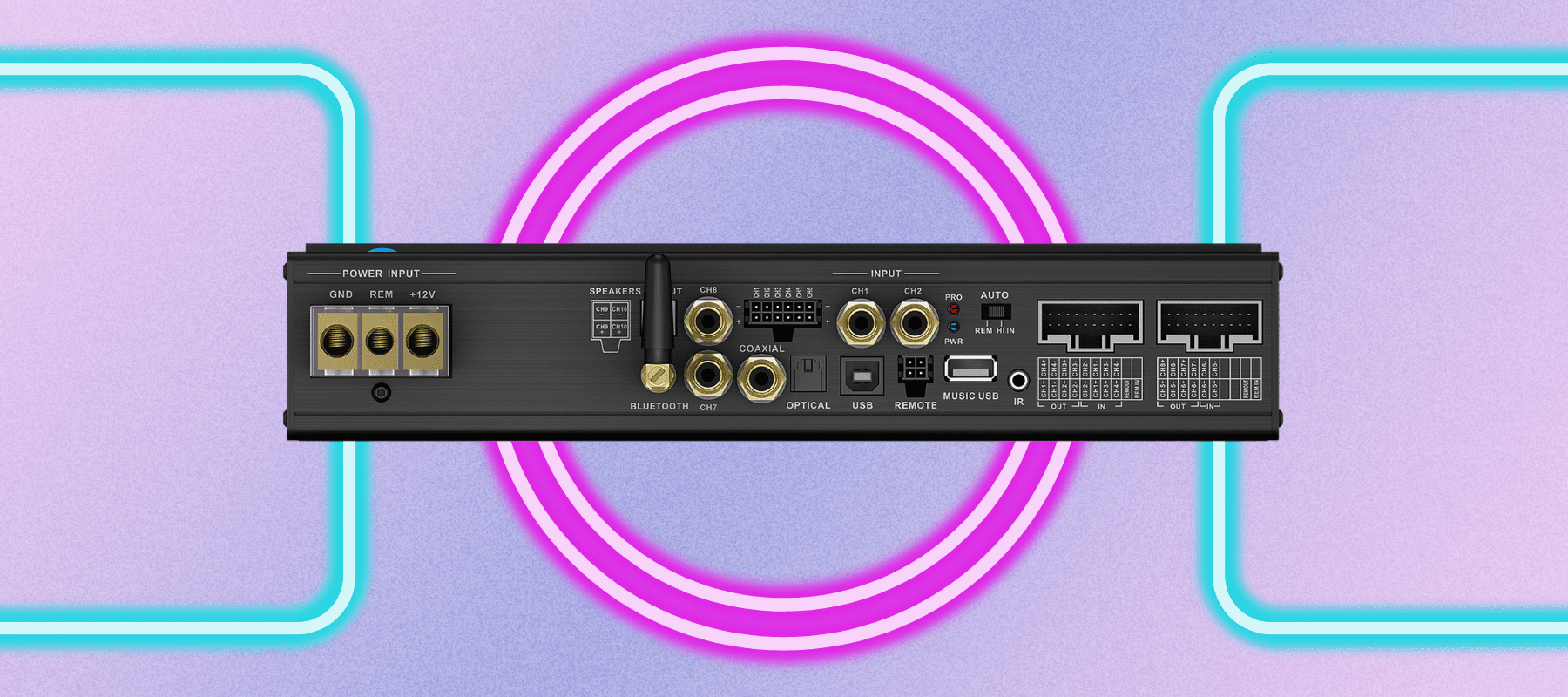

Digital Signal Processor

Digital Signal Processor is functioned specifically to manipulate audio signals and frequencies of the audio systems in the vehicle. One of the key features of Digital Signal Processor is the Signal Delay feature. Signal Delay is a tuning feature to delay the sound from different audio systems (Tweeters, Subwoofers, Speakers) that are placed in different distance to arrive to the subject (driver or passengers) at the same time. It has all the setting that everyone need without even relying on other tuning systems.

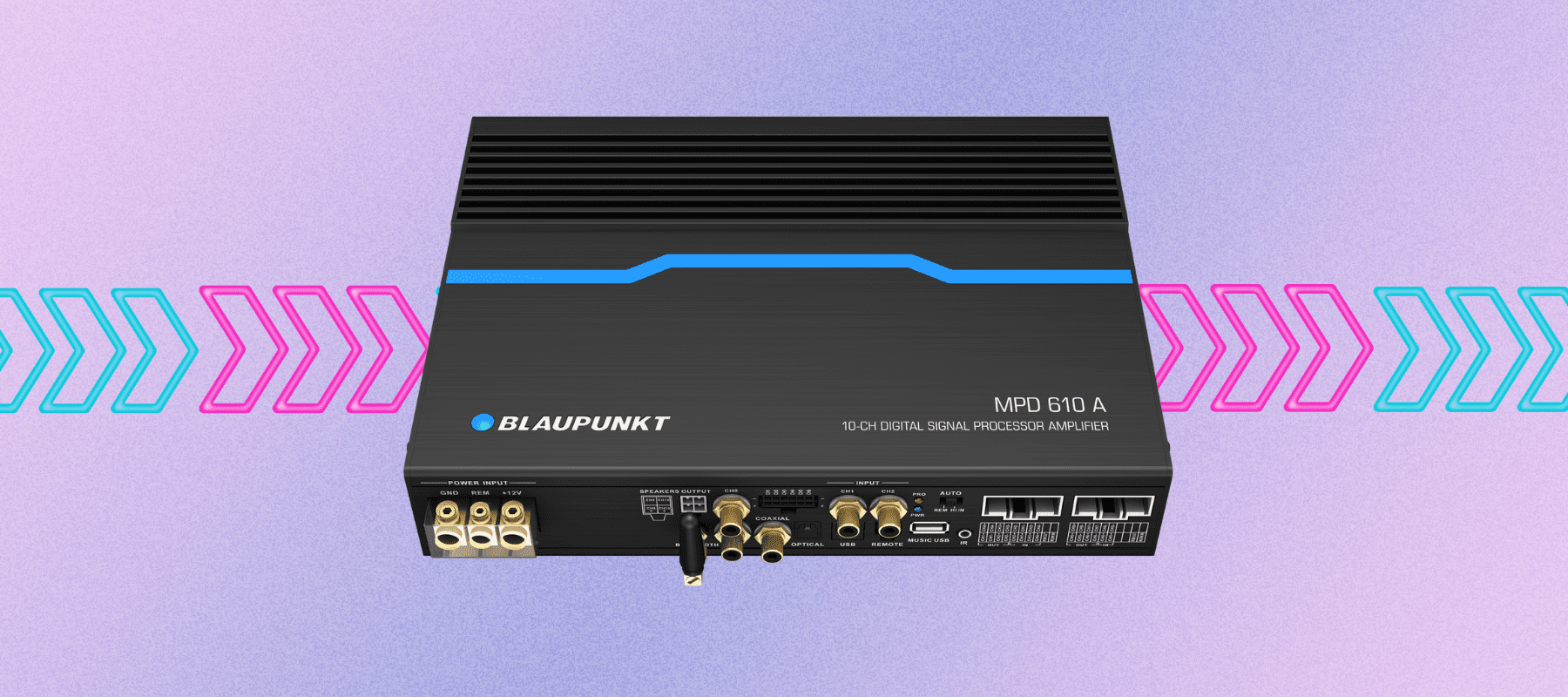

Class AB Amplifier

Blaupunkt Amplifier MPD 610 A is a 10-Channel Class AB Amplifier that generates an RMS Power of 8x35W+80Wx2(4Ω),8x50W+120Wx2(2Ω). This allows each of the channels to produce respective power, creating sufficient power for MPD 610 A to maximize its performance. Furthermore, MPD 610 A has also a Digital Signal Processor feature which allows users to better calibrate the audio systems in one go without handling more than one device.

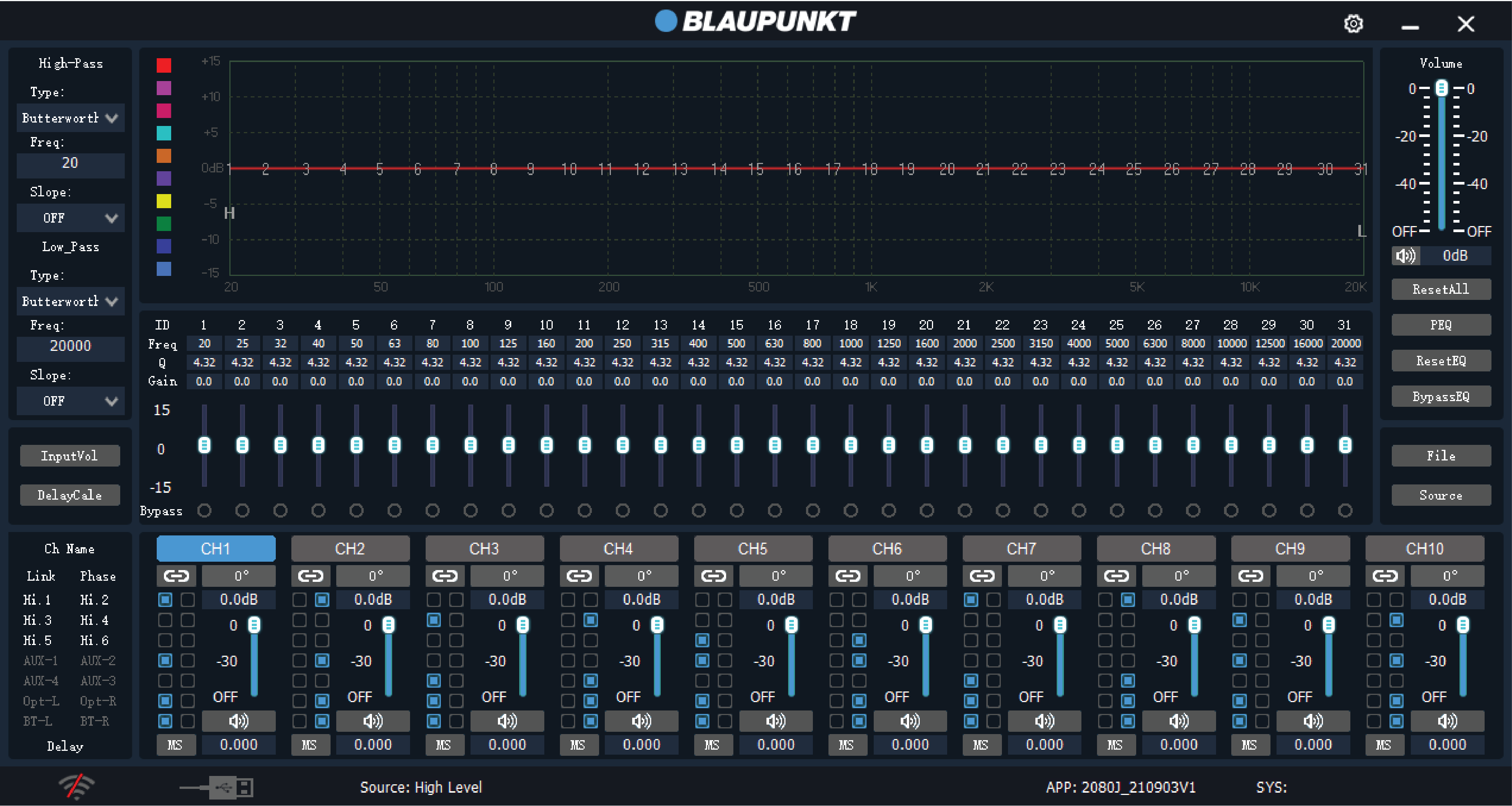

MPD 610 A PC Tuner Software

Blaupunkt MPD 610 A allows complete control and command of the Digital Signal Processor through PC Tuner software. To adjust and calibrate the sound systems in your vehicle, Blaupunkt offers a unique and user-friendly software interface for you to create a whole new experience on the DSP. Such settings include signal routing, equalization, frequency adjustment, and more.

HIGHLIGHT

PC Tuner

To adjust and calibrate the sound systems in your vehicle, Blaupunkt offers a unique and user-friendly software interface for you to create a whole new experience on the DSP.

Max Output Power

Blaupunkt MPD 610 A delivers a maximum outpower of  880watts. This level of power is able to create an intensifying environment whenever you are listening to your favorite songs. Exciting as it sounds, Blaupunkt ensures your listening experience is entertaining.

Music Playback

Blaupunkt created this feature that allows you to play your favourite sound as many times as you want via USB or BT Streaming.

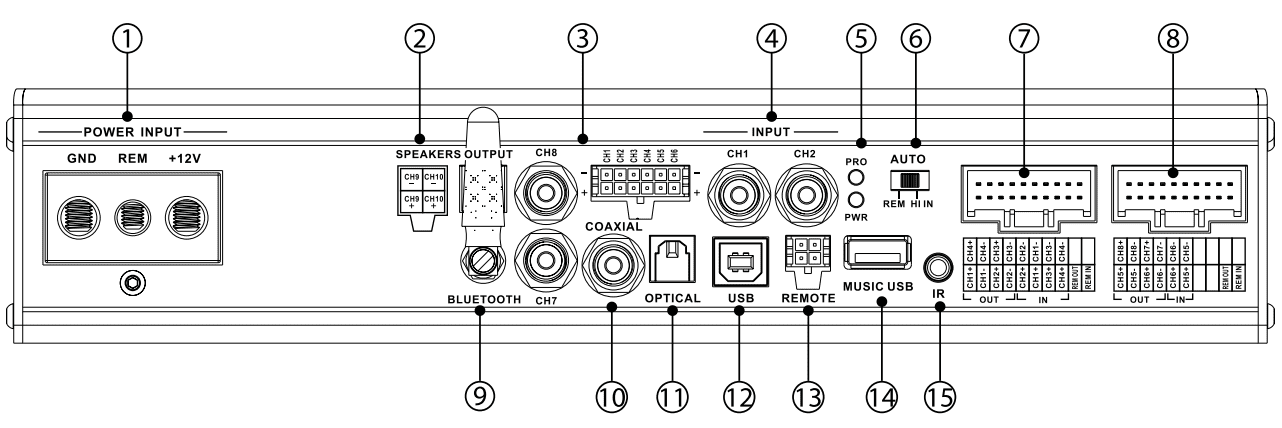

Key Function

1.Power Input

2.CH9/CH10 Speaker Output

3.Low Level rca Output

4.Low Level RCA Input

5.Power & Protection LED

6.HI IN/REM C

7.CH1-CH4 Hi-Level Input/CH1-CH4 Speaker Output/ Remote In/ Remote Out

8.CH5-CH6 Hi-Level Input/CH5-CH6 Speaker Output/ Remote In/ Remote Out

9.BT Antenna

10.Coaxial Input

11.Optical Input

12.USB2.0 Input

13.Remote Control

14.USB Player

15.IR

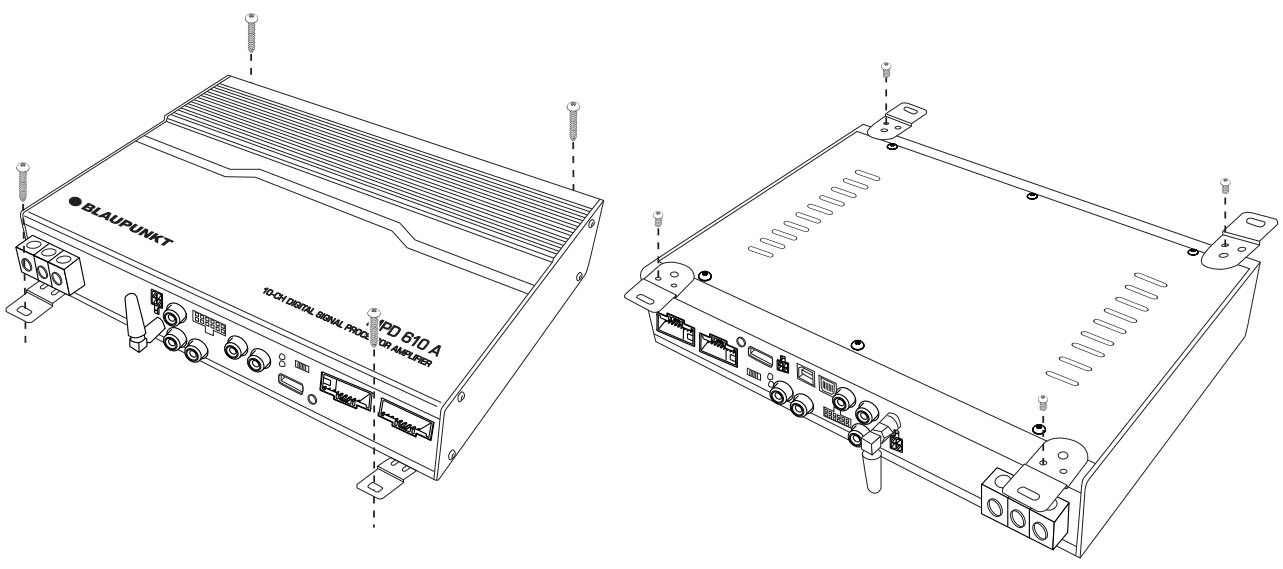

INSTALLATION

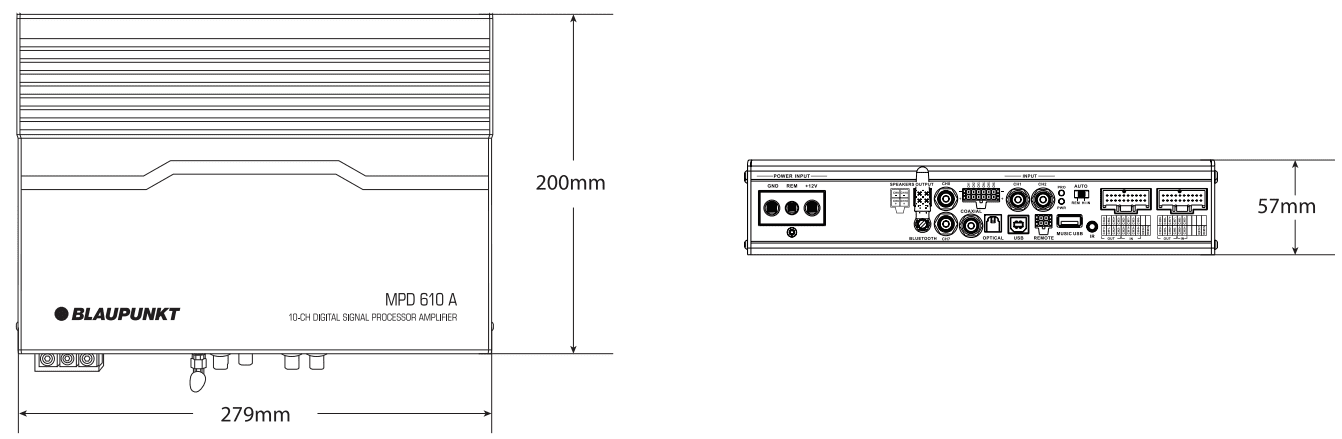

Dimension

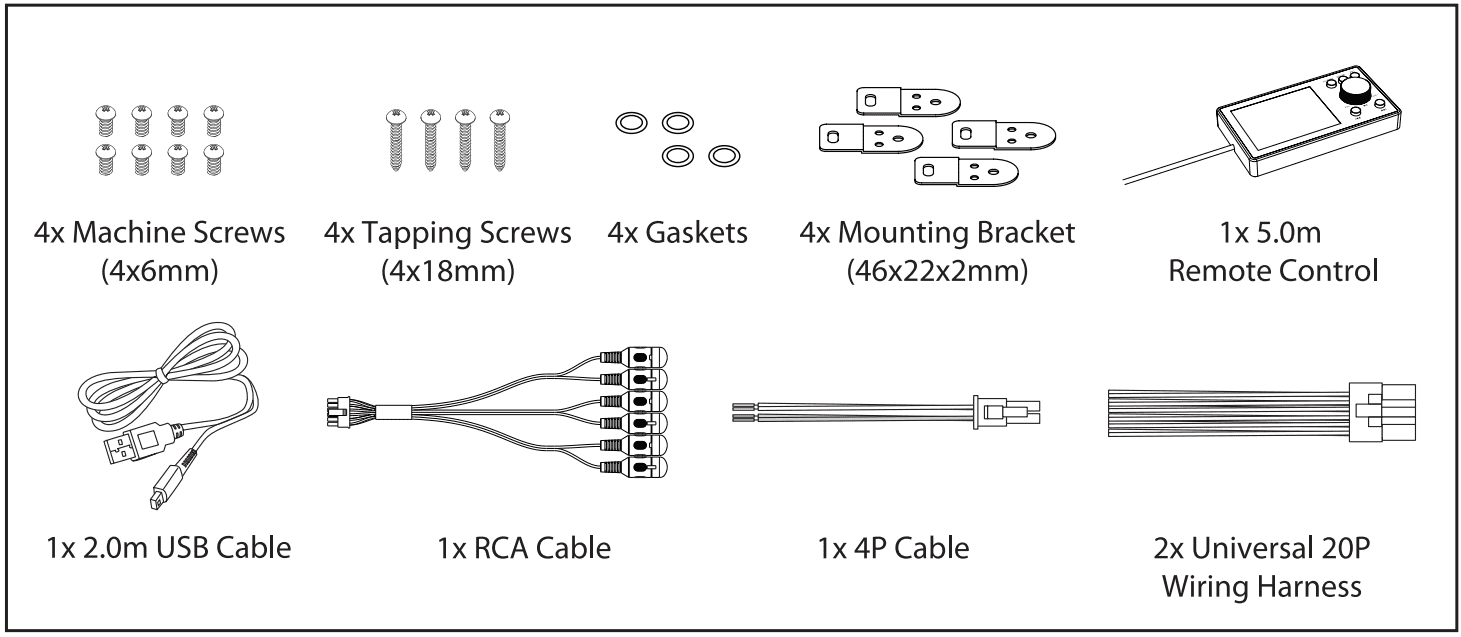

Accessories

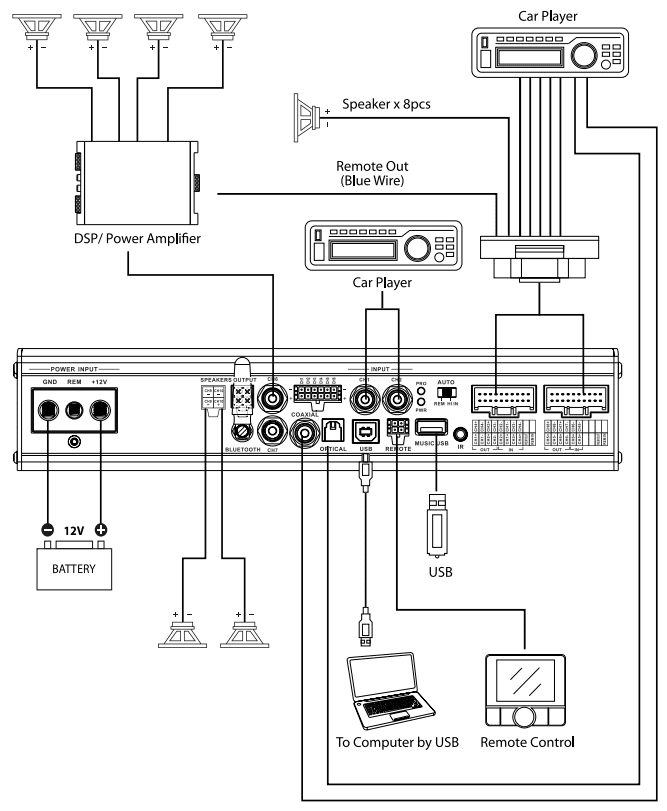

Wiring Diagram 1

Car Specific  Wiring Method

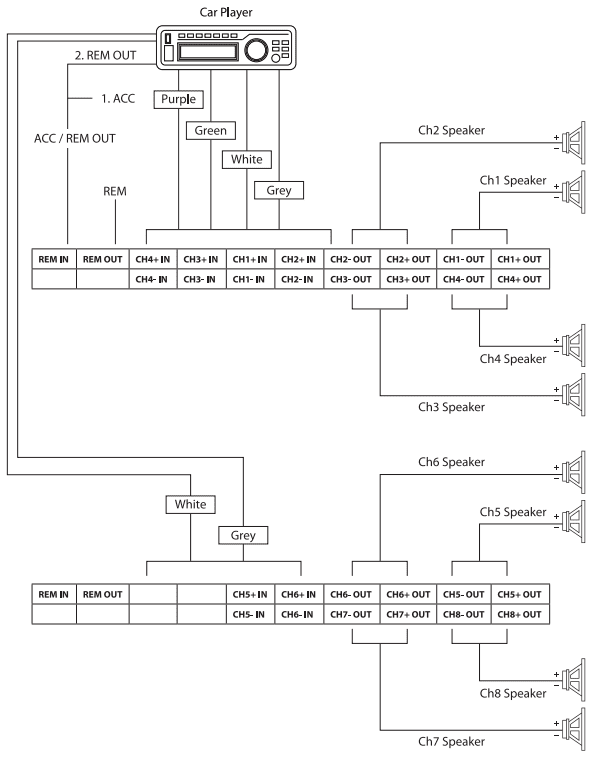

Wiring Diagram 2

Universal Wiring Method

Specifications

MPD 610 A Specifications

Feature

  • Class AB Amplifier
  • 31-Band Equalizer/ Phase & Time Alignment Setting
  • Max. Output Power : 880W
  • Frequency Response : 10Hz-20kHz
  • Max. Current Consumption : 35A x 2
  • Dimension (W x H x D) : 279 x 200 x 57mm
  • Weight : 2.6 kg

Audio

  • RMS Power : 8x35W+80Wx2(4Ω),8x50W+120Wx2(2Ω)
  • DSP Resolution : 24 Bit
  • DSP Power : 48 kHz
  • Output Power RMS @ 4 Ohms

(≤1% THD +N) : 8x35W+80Wx2

  • Output Power RMS @ 2 Ohms (≤1% THD +N) : 8x50W+120Wx2
  • Distortion (THD) : <0.005%
  • Dampling Factor : >70
  • Operating Voltage : 10 -14.4V
  • Sampling Rate : 96kHz
  • Signal Converter A/D : Burr-Brown
  • Signal Converter D/A : Burr-Brown

Input

  • 2x RCA/ Aux-in
  • 1x COAX-in
  • 6 High Level Speaker Input
  • 1x Optical SDPIF
  • 1x Remote-in
  • 1x USB
  • RCA/ Cinch Sensitivity : 300mV
  • High Level Input Sensitivity : 2.5V
  • Impedance High Level : 100 Ohms
  • S/N Ratio Analog-in : 100dB

Output

  • 8x RCA/ Cinch
  • 10 High Level Speaker Output
  • 1x Remote-out
  • Voltage RCA/ Cinch : 4V RMS
