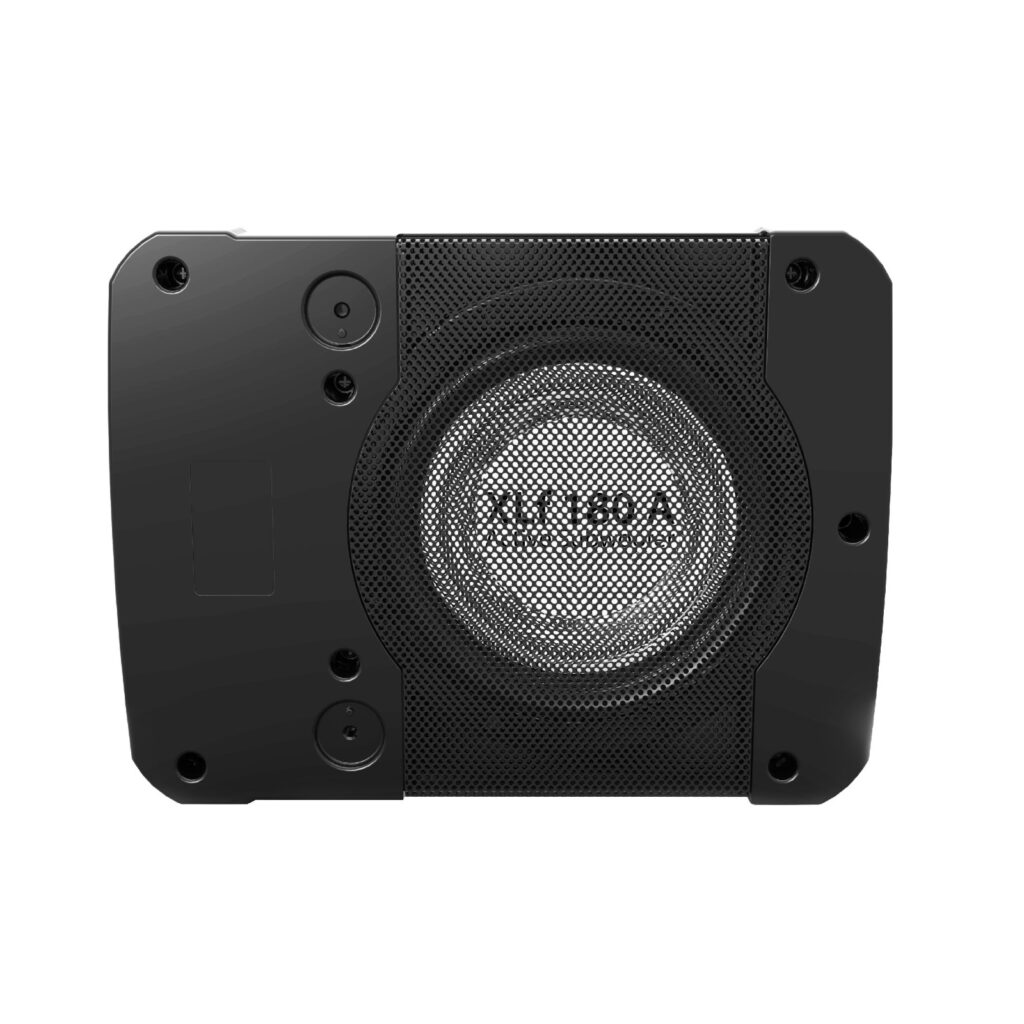

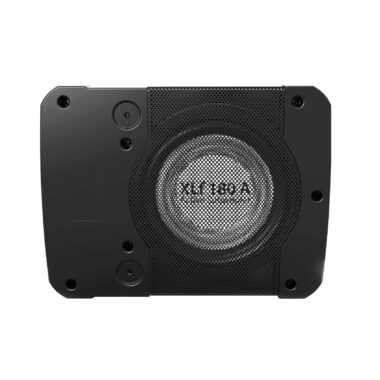

XLF 180 A

Amplifier

• Amplifier Technology : Class AB
• Normal Output Power (RMS) : 180W
• Max Output Power : 450W
• Audio in Sensitivity : RCA input 0.2V-10V, Speaker input 0.6V-12V
• Signal/Noise Ratio : 91dB
• Output Impedance : 2Ω
• Frequency Response : 30Hz-150Hz
• Low Pass Filter (LPF) : 50Hz-150Hz
• Voltage : 14.4V (10V-16V)
• Phase Switch : 0°/180°
• Automatic On/Off : High Level Only
• Fuse Rating : 25A
• Gain : 200mV–6V
• Passive Radiator : 192 x 60mm
• Variable Bass Boost : 0–18dB

Subwoofer

• Speaker Size : 8”
• Cone Composition : Aluminium
• Magnet Type : Ferrite
• Enclosure Housing Material : Aluminium
• Enclosure Dimension (LxWxH) : 340 x 260 x 75mm
• Enclosure Net Weight : 2.65kg

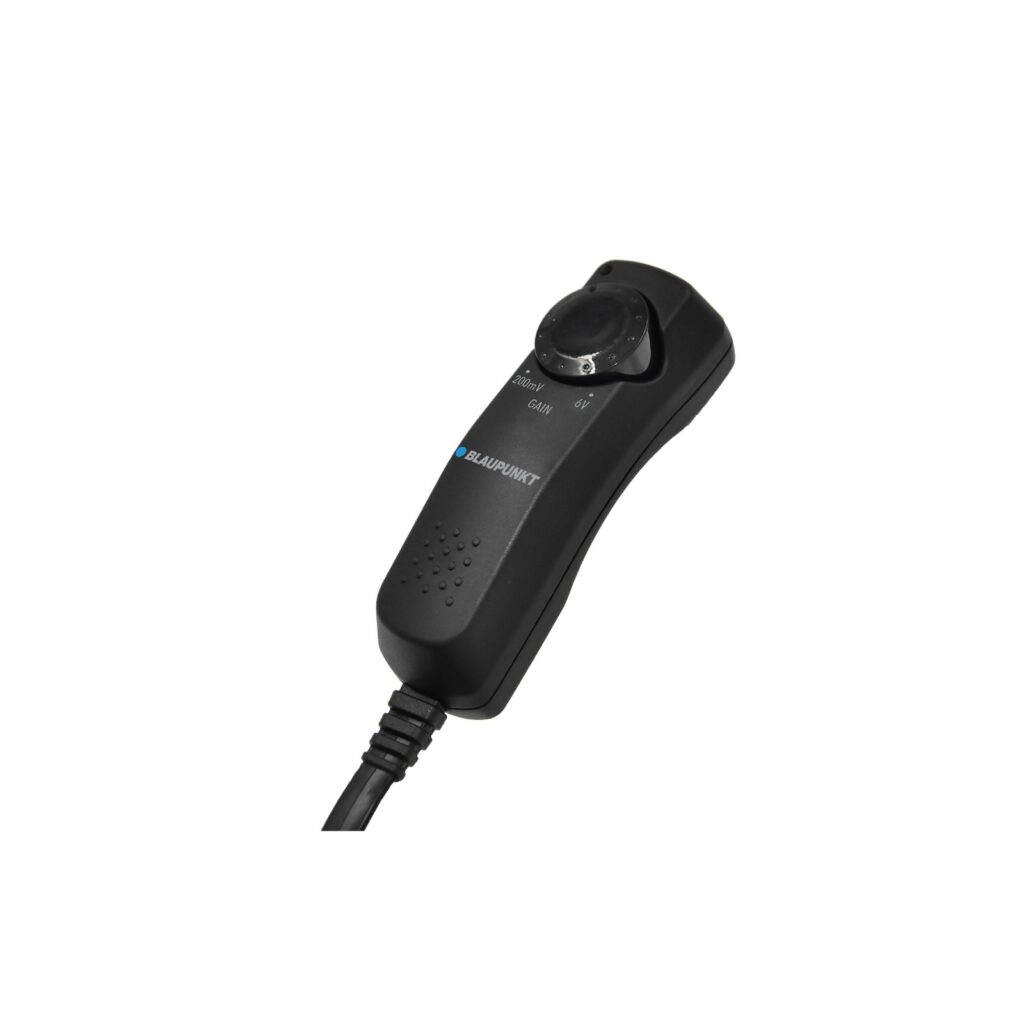

• Remote Controller : 4.5m Wired Remote
• DC Cord : 5m
• High Level Input Speaker Extension
• Low Level Input Speaker Extension
• Plug & Play Wiring Harness
• Screws (Parker-Type) : M4x20mm
• Screws (M-Type) : M6x8mm
• 2x Bracket A : 72x40mm
• Overall Weight : 5kg (Without accessories)
