100th Year Limited Edition Active Subwoofer

XLf 185 A

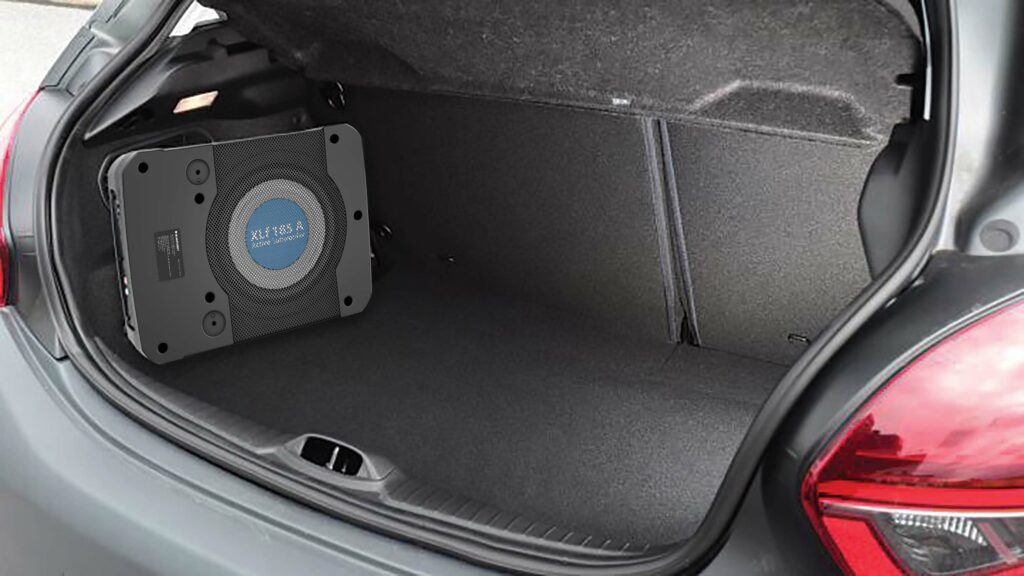

450W Max. Output Power | 3 Firing Position

Find Out More

XLf 185 A

100th Year Limited Edition Active Subwoofer

450W Max. Output Power | 3 Firing Position

Specifications

XLf 185 A Specifications

Amplifier

  • Amplifier Technology : Class AB
  • Normal Output Power (RMS) : 180W
  • Max Output Power : 450W
  • Audio in Sensitivity : RCA input 0.2V-10V, Speaker input 0.6V-12V
  • Signal/Noise Ratio : 91dB
  • Output Impedance : 2Ω
  • Frequency Response : 30Hz-150Hz
  • Low Pass Filter (LPF) : 50Hz-150Hz
  • Voltage : 14.4V (10V-16V)
  • Phase Switch : 0°/180°
  • Automatic On/Off : High Level Only
  • Fuse Rating : 25A
  • Gain : 200mV–6V
  • Passive Radiator : 192 x 60mm
  • Variable Bass Boost : 0–18dB

Subwoofer

  • Speaker Size : 8”
  • Cone Composition : Aluminium
  • Magnet Type : Ferrite
  • Enclosure Housing Material : Aluminium
  • Enclosure Net Weight : 5kg
  • Dimension (LxWxH) : 340 x 75 x 260mm
XLf 185 A Accessories
  • Remote Controller : 4.5m Wired Remote
  • 2x Screws : M6x8
  • 2x Screws : M4x20
  • 2x Mounting Brackets : 71 x 39.5 x 7mm
  • DC Cord : 4.5m
  • High Level Input Speaker Extension
  • Low Level Input Speaker Extension
  • Input Plug Extension
