Extreme low entry in an elegant black/white design. Equipped with a rear wheel motor and 6-speed SIS shifter.


approx. 22 kg weight (incl. battery)
up to 70 km range*

Intelligent clamping mechanism!

Equipped with an intelligent clamping mechanism, the Blaupunkt LOTTE® can be easily folded and thus reduced in size by half. In just 4 steps, the folding e-bike becomes a handy and easy-to-stow “package”. The low weight of approx. 22 kg also makes it easy and comfortable to take with you on the bus and train.

Strong engine!

The strong 36-volt rear-wheel motor with 50 Nm provides the perfect support, which together with the removable and powerful lithium-ion battery forms a perfect team. The motor is durable and to protect the battery, the integrated BMS (Battery Management System) always ensures an optimal energy supply.

LCD bike computer!

The 5 support levels of the motor are controlled via the easy-to-read LCD computer. It also provides important information such as the current battery life, information about the route, speed and much more. The engine power can also be completely deactivated.

More features

The Blaupunkt LOTTE® comes with a new frame design as the successor to the popular CLARA 400. In addition to many detailed improvements, the LOTTE® is now also equipped with an integrated brake light in the rear light. With the new, separately available, larger batteries, you can now upgrade and increase the regular range from 70 km to up to 100 km.

​​Subject to technical changes, mistakes and typographical errors.
* The range depends on the load, driving style and area of use.



• 20“ low- step E-Bike with particularbasely entry
• Wave frame
• Rear hub motor with optimized controller
• Elegant glossy white finish
• Brake light
• 6-speed SIS shifter
• Stable, foldable aluminum frame
• Easily stowed thanks to intelligent quickfoldingmechanism including foldablepedals & handlebar
• Comfortable 20” x 2.125 tires
• Clear, easy-to-use and readable LCD-bikecomputer
• 5-step PAS up to 25 km/h
• Li-ion battery 36 V/ 8.8 Ah for up to 70 km/ 43 miles*
• Battery removable and lockable
• About 22 kg overall
• Meets the requirements of the german StVZO
• Designed in Germany, Made in EU

Technical specifications

Frame: Alloy
Rims: Alloy, black
Tires: 20“x 2,125/ 57-406, black side wall, reflective stripes
Shift lever: SIS 6 speed
Brakes (front/ rear): V-brakes
Headset: Semi integrated
Max. payload: 110 kg

Engine: AKM 100SX, rear hub motor, DC 36 V/ 250 W, 50 Nm, brushless, maintenance free, IP65
Battery: 36 V/ 8,8 Ah Lithium- Ion battery w. integrated BMS and battery status indicator
Sensors: Cadence- & speed sensor
Driving modes: 5 level PAS, PAS off, push assistance
Bike computer: KD21C LC-Display, 3 buttons, backlight, IP65
Battery, Power output, Lights on/ off, Push Assistance, Auto Power Off, Error code info
Charger: Worldwide useable switching power supply (AC 100 – 240 Volt), 42 V, 2 A
Charging time: about 4- 6 h
Range: Up to 70 km (1) / 43 miles (1)
Max. speed (PAS): max. 25 km/h
Brake cut- off sensors: Yes

Lamps/ reflectors: LED- head- and rear- lights with integrated reflectors, fully EPAC powered,
Pedals w. integrated reflectors,
Tires with circumferential reflector stripes
Brake light: Yes, integrated

Mudguards: Yes
Kickstand: Yes, kickstand at bb axle
Pedals: Foldable pedals
Battery removable: Yes
Battery lockable: Yes
Charging if installed/ removed: Yes / Yes
Battery indicator: Yes, integrated in battery + computer
Additional battery: Optional (10 Ah, up to 80 km (50 miles) (1) or 13 Ah, up to 100 km (60 miles) (1))
Chain protection: Yes
Luggage carrier: Yes (max. 25 kg payload)
Saddle: Black
Grips: Black
Bell: Yes, integrated on brake lever
Sprung seat post: No
Suspension fork: No
Bottle cage: No
Carry bag: Optional
Handlebar bag: Optional

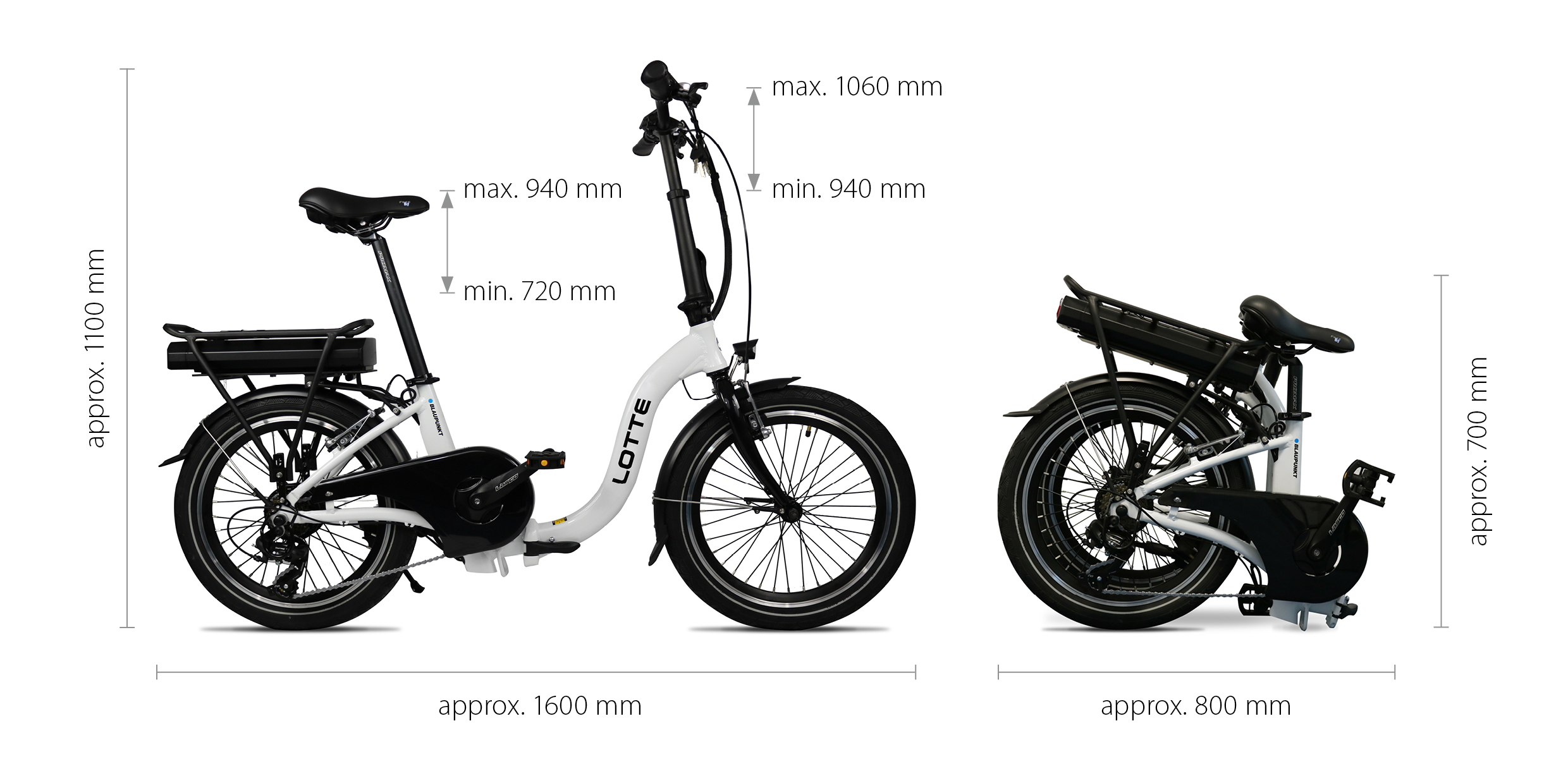

Size (unfolded): About 1600 x 160 x 1100 mm (L x B x H, w/o pedals/ handlebar)
About 1600 x 610 x 1100 mm (L x B x H)
Size (folded): About 800 x 430 x 700 mm (L x B x H)
Wheel size: 24“x 2,125
Handlebar height: 940 – 1060 mm
Handlebar: 610 mm
Saddle height: 720 – 940 mm
Seat post: Ø 28,6 mm, 45 cm
Wheelbase: 1000 mm
Chassis clearance: 95 mm (till chainwheel protector)
Framesize: 424 mm
Weight incl. battery: about 22 kg
Battery weight: about 2,5 kg (8,8 Ah battery)
Color: Glossy white, black saddle/ tires/ grips

Foldable E-Bike, EU charger, battery with 2 keys, User manual (multilingual)

10,4 Ah/ 36 V: Part number 2 008 020 111 050, 13 Ah/ 36 V: Part number 2 008 020 111 051

EPAC DIN EN 15194:2017, CE, StVZO, UN38,3

Box dimensions: about 845 x 431 x 740 mm (L x W x H)
Box weight: about 3,5 kg carton, 0,1 kg foam, 0,01 kg PVC (foil, cable ties…)
Weight total: about 25 kg
Customs tariff number: 87116010

(1) The range depends on the load, driving style and area of use
(2) Subject to modification
